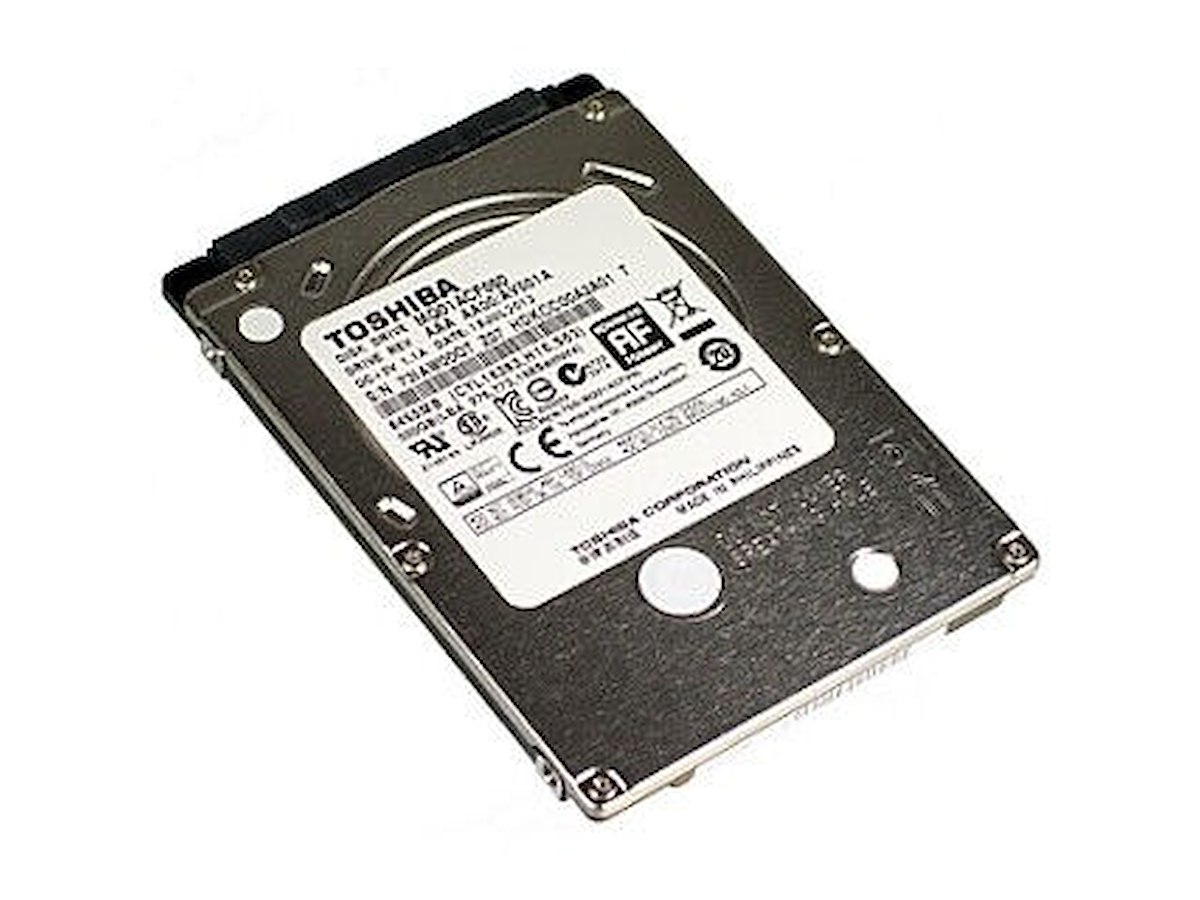

The MQ01ACF series offers up to 500GB in a unit just 7mm height. Ideal for laptops, ultrathin notebooks and other mobile and power-sensitive applications requiring integrated storage, the 7,278 rpm drives combine a high-speed 6Gbit/s intelligent interface with average seek times of just 12ms. A shock sensor circuit provides protection against shocks of up to 3,430 m/s2 (350G) while the drive is in use. Upon power down, a carriage lock mechanism is automatically activated to protect against shocks of up to 8,820 m/s2 (900G). Furthermore, vibration sensors protect the integrity of data readout against vibrations while the drive is in operation, enabling unrivalled performance. The family of sleek HDDs is available in the following models; the MQ01ACF050 (500GB) and the MQ01ACF032 (320GB).
| Funktioner | |
| HDD kapacitet | 320 GB |
| HDD hastighed | 7200 rpm |
| HDD-størrelse | 2.5" |
| Grænseflade | Serial ATA III |
| Lagringsdrev buffer størrelse | 16 MB |
| Spor-til-spor søgetid | 2 ms |
| Gennemsnitlig søgetid | 12 ms |
| SMART teknologi | Ja |
| Strømstyring | |
| Strømforbrug (standby) | 0,18 W |
| Strømforbrug (læse) | 2,1 W |
| Strømforbrug (skrive) | 2,1 W |
| Strømforbrug (inaktiv) | 0,8 W |
| Driftsspænding | 5 V |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 55 °C |
| Opbevaringstemperatur (T-T) | -40 - 65 °C |
| Driftsvibrationer | 1 G |
| Ikke-drift vibration | 5 G |
| Stød under drift | 350 G |
| Ikke-drift stød | 900 G |
| Vægt & størrelser | |
| Bredde | 69,8 mm |
| Højde | 7 mm |
| Dybde | 100 mm |
| Vægt | 92 g |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Andre funktioner | |
| Dataoverførselshastighed | 6 Gbit/sek. |
| Rotationshastighed | 7278 rpm |
| Forbindelsesteknologi | Ledningsført |
