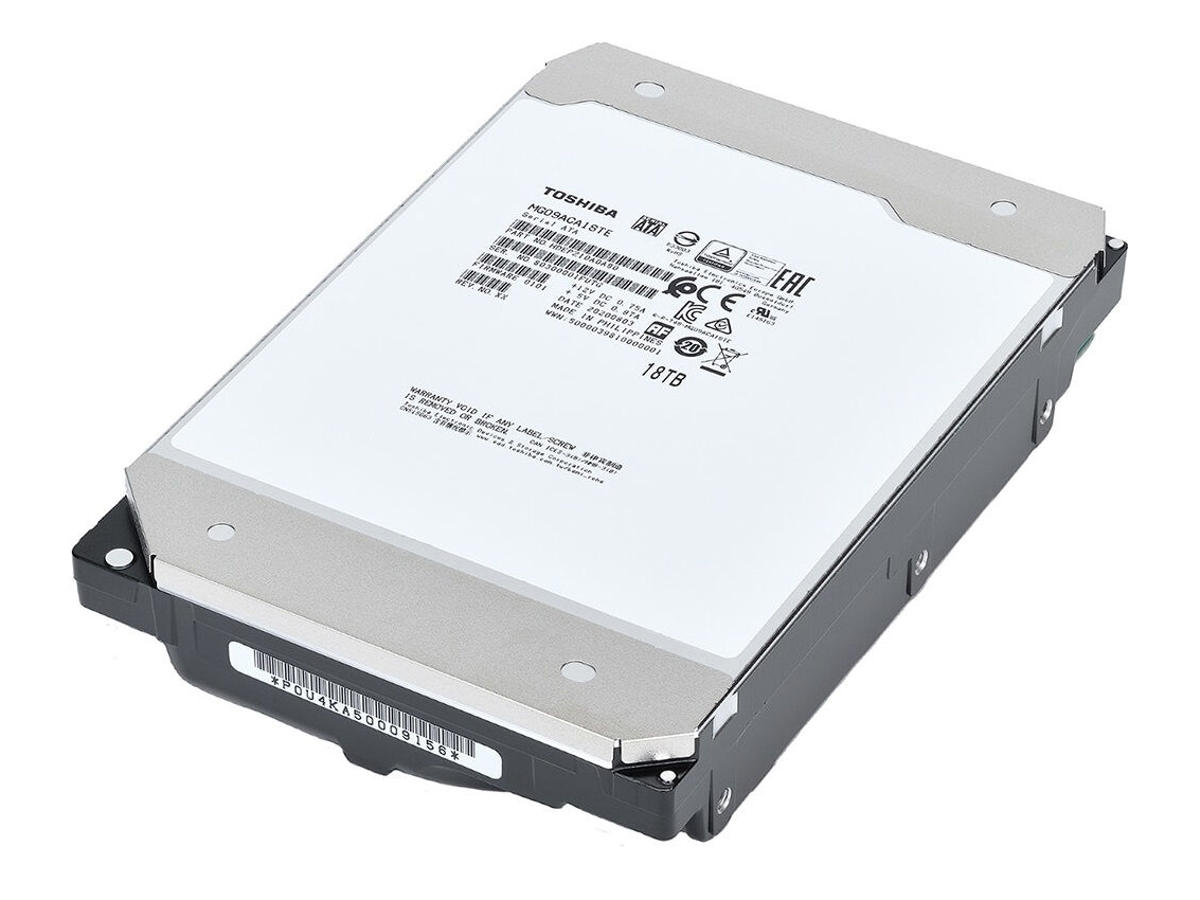

The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
| Funktioner | |
| HDD kapacitet | 18 TB |
| HDD hastighed | 7200 rpm |
| HDD-størrelse | 3.5" |
| Grænseflade | Serial ATA III |
| Type | HDD |
| Komponent til | NAS |
| Hot-swap | Ingen |
| Lagringsdrev buffer størrelse | 512 MB |
| Overførselshastighed for HDD-grænseflade | 6 Gbit/sek. |
| HDD vedvarende overførselshastighed | 268 MiB/s |
| Avanceret format (AF) | Ja |
| 24/7 drift | Ja |
| Start/stop-cyklusser | 600000 |
| Arbejdsbelastningsgrænse | 550 TB/år |
| Støjniveau (tomgang) | 20 dB |
| Middeltid til fejl (MTTF) | 2500000 t |
| Strømstyring | |
| Strømforbrug (typisk) | 8,35 W |
| Strømforbrug (inaktiv) | 4,16 W |
| Driftsspænding | 5 / 12 V |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 55 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Driftsvibrationer | 0,75 G |
| Ikke-drift vibration | 3 G |
| Driftshøjde | -305 - 3048 m |
| Ikke-drift højde | -305 - 12192 m |
| Stød under drift | 70 G |
| Ikke-drift stød | 250 G |
| Vægt & størrelser | |
| Bredde | 101,8 mm |
| Højde | 26,1 mm |
| Dybde | 147 mm |
| Vægt | 720 g |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84717050 |
