Connect Network Equipment at Speeds Up to 100 Gbps
Combines four 28 Gbps SFP channels into single high-density cable
Ideal for data centers, high-end servers and enterprise wiring closets
Multi-platform support for 128G Fibre Channel and EDR InfiniBand
Lower port cost and power budget when compared to fiber optics
Top-of-the-Line Construction
100 GbE 38-position “board-as-connector” design

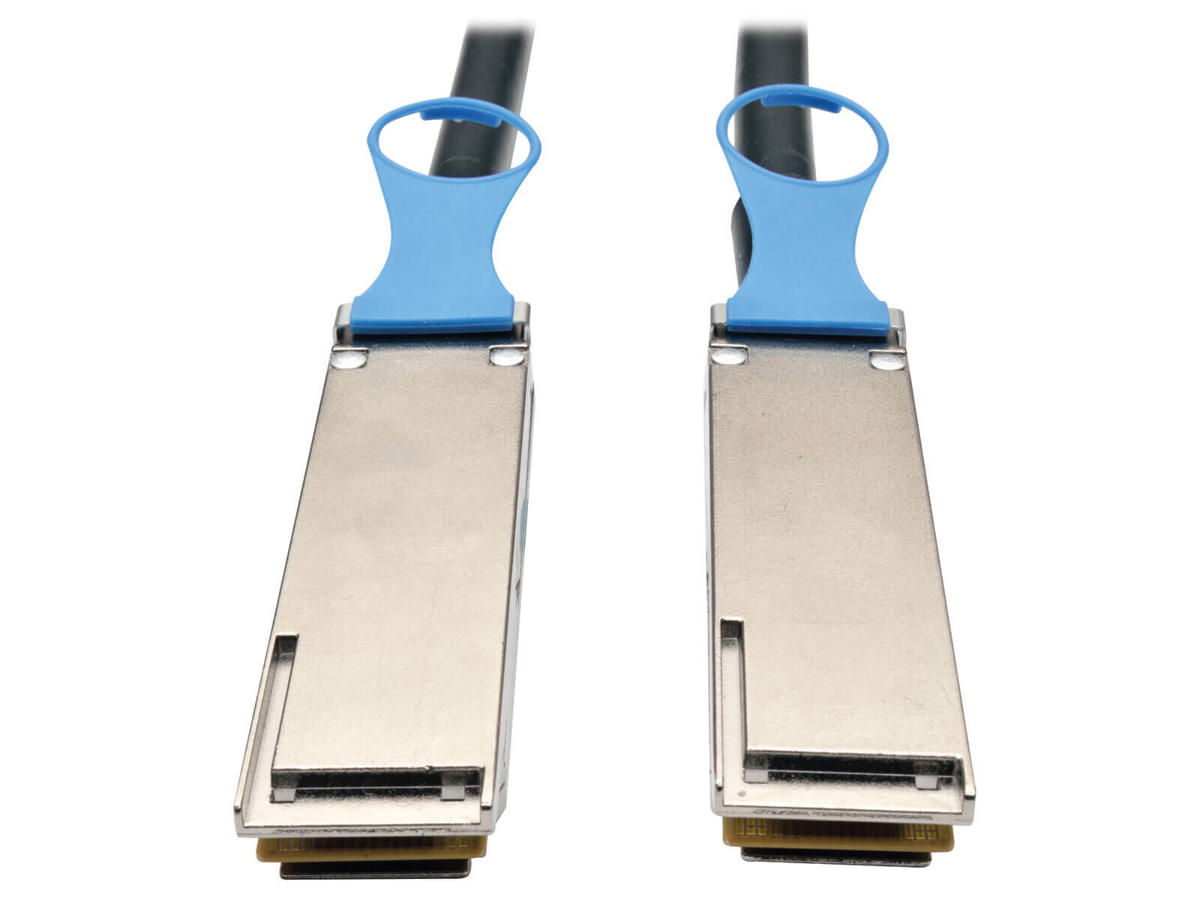

Zinc die-cast male QSFP+ connectors for superior EMI resistance
Ergonomic pull-tab ejectors for quick, easy connections
8-pair wire technology optimized for bandwidth-intense applications
Flexible 26 AWG conductors maintain smooth high-frequency response
Fully Compliant and Compatible
Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards
Complies with IEEE 802.3bj and RoHS
Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture
Compatible with all QSFP and QSRP+ ports
| Funktioner | |
| Kabellængde | 0,5 m |
| Stik 1 | QSFP+ |
| Stik 2 | QSFP+ |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Produktfarve | Sort |
| InfiniBand-protokol | Ja |
| Dataoverførselshastighed | 100 Gbit/sek. |
| Godkendelser | |
| Compliance-certifikater | REACH, RoHS |
| Certificering | MSA SFF-8665, IEEE 802.3b |
| Vægt & størrelser | |
| Vægt | 140 g |
| Emballeringsdata | |
| Pakkebredde | 248,9 mm |
| Pakkedybde | 287 mm |
| Pakkehøjde | 12,7 mm |
| Pakkevægt | 140 g |
| Logistik data | |
| Hovedkasse (udvendig) GTIN (EAN/UPC) | 10037332193138 |
| Oprindelsesland | Kina |
| Hovedkassens bredde (udvendigt) | 236,2 mm |
| Harmoniseret systemkode (HS) | 8544,42,2000 |
| Hovedkassens længde (udvendigt) | 363,2 mm |
| Hovedkassen højde (udvendigt) | 88,9 mm |
| Hovedkassens bruttovægt (udvendigt) | 1,45 kg |
| Produkter pr. hovedkasse (udvendigt) | 10 stk |
