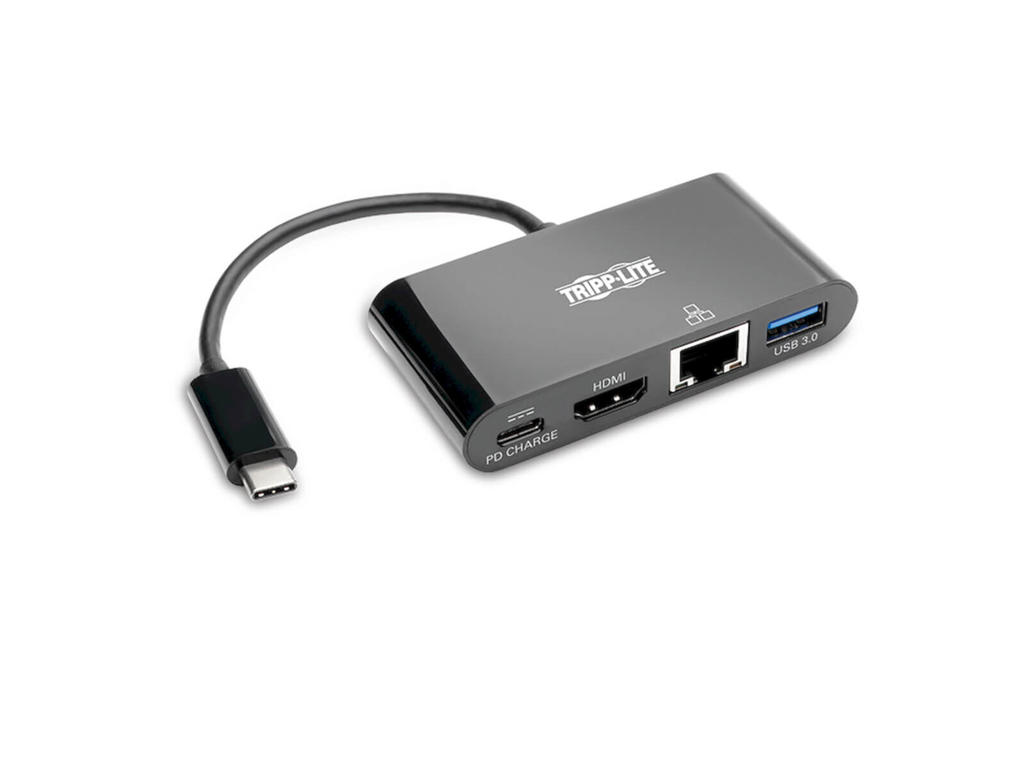

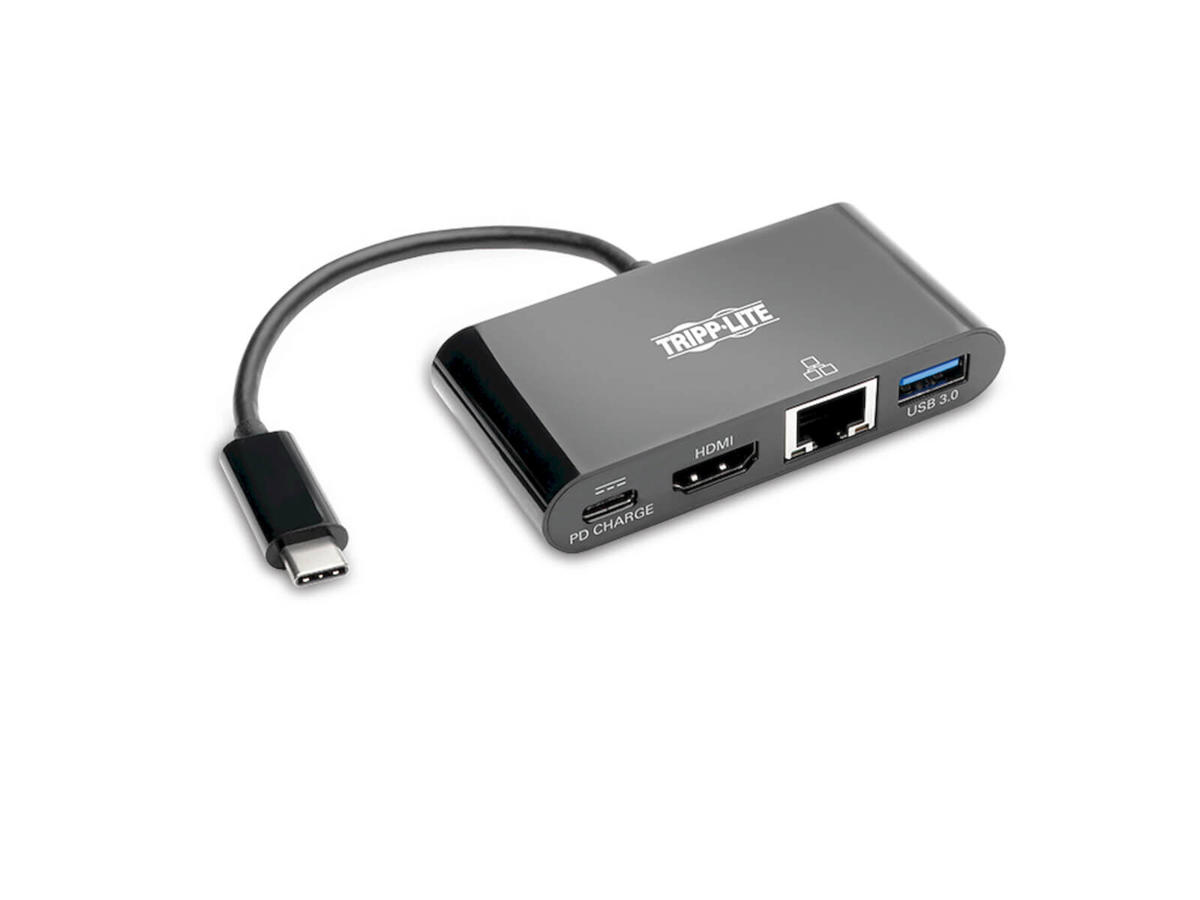

USB-C Multiport Adapter Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multifunction Workstation
This USB 3.2 adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and 4K video to a large display, adding a thumb drive or other USB peripheral, powering and quickly charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network—all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Content
With a source device that also supports USB DisplayPort Alt Mode, you can extend the desktop of your computer to a second display, duplicate the same video on both displays, or change the second display to your primary.
Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI Display
To send 7.1-channel surround sound and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using a 4K-compatible HDMI cable (sold separately, such as the P568-Series). The HDMI port supports UHD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz.
Connects a USB Peripheral
The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. The port provides up to 5V 1.5A (7.5W) of fast-charging power to mobile devices. Note
: Host must support USB OTG (On-the-Go).
Charges a Connected Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant host device (such as a MacBook, Chromebook or Android smartphone) the U444-06N-H4GUB-C is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W). Note
: USB-C PD port does not support Quick Charge (QC).
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately, such as the N201-Series), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB to multiport adapter works with all operating systems. It requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
| Porte & Grænseflader | |
| Værtsgrænseflade | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Netværk | |
| Ethernet LAN-porte (RJ-45) | 1 |
| Netværksstandarder | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Ja |
| Fuld duplex | Ja |
| Præstation | |
| Produktfarve | Sort |
| Hub-grænseflader | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Plug and play | Ja |
| Husmateriale | Polyvinylchlorid (PVC) |
| Oprindelsesland | Vietnam |
| Certificering | CE, FCC, RoHS, REACH |
| Strømstyring | |
| Strømkilde type | USB |
| Strømforbrug (typisk) | 2,8 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Opbevaringstemperatur (T-T) | -10 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 39,9 mm |
| Dybde | 80 mm |
| Højde | 14,5 mm |
| Vægt | 45,36 g |
| Emballeringsdata | |
| Pakkebredde | 140 mm |
| Pakkedybde | 100,1 mm |
| Pakkehøjde | 23,1 mm |
| Pakkevægt | 90 g |
| Tekniske detaljer | |
| Hovedkasse (udvendig) GTIN (EAN/UPC) | 10037332209143 |
| Logistik data | |
| Produkter pr. hovedkasse (udvendigt) | 10 stk |
| Hovedkassens bredde (udvendigt) | 294,9 mm |
| Hovedkassens længde (udvendigt) | 134,9 mm |
| Hovedkassen højde (udvendigt) | 119,9 mm |
| Hovedkassens bruttovægt (udvendigt) | 680 g |
| Harmoniseret systemkode (HS) | 84719000 |
