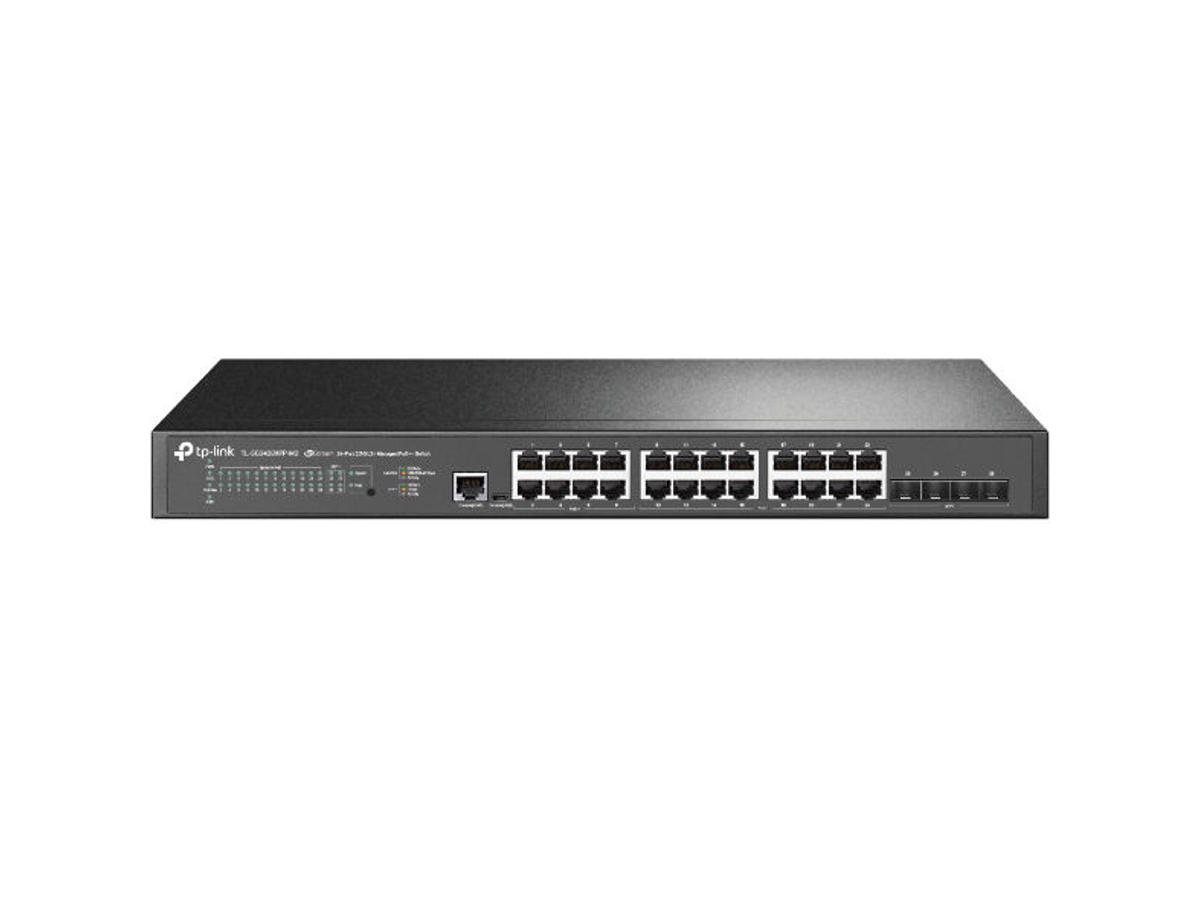

Ultrafast 2.5G PoE++/PoE+ Managed Switch with 10G Uplink for Futuristic Network
2.5G PoE++/PoE+ Ports for WiFi 7/6E/6
24× 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs
10G Lightning-Fast Uplink Connection
4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
PoE++/PoE+ Output
8 PoE++ and 16 PoE+ Ports with Total 500 W Power Budget.
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE++/PoE+ Ports
Featuring 8x PoE++ and 16x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 500 W total PoE power budget* and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2+ |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Cloud-administreret | Ja |
ARP inspektion | Ja |
Konfigurerer lokationsindstillinger (CLI) | Ja |
System hændelseslog | Ja |
MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
Basis omskiftning RJ-45 Ethernet porttype | 2.5G Ethernet (100/1000/2500) |
Antal 2,5G Ethernet-porte (kobber) | 24 |
Antal SFP + modulslots | 4 |
Port til konsol | RJ-45/Micro-USB |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ja |
Port-spejlning | Ja |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Begrænsning af hastighed | Ja |
Spanning tree protokol | Ja |
Head-of-line (HOL) blokering | Ja |
Ethernet LAN-datahastigheder | 10,100,1000,2500,10000 Mbit/s |
IPv4-ruter | 48 |
IPv6-ruter | 48 |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
Dataoverførsel | |
MAC adresselabel | 32000 entries |
Switch kapacitet | 200 Gbit/sek. |
Hastighed for videresendelse | 148,8 Mpps |
Opbevar-og-frem | Ja |
Antal køer | 8 |
Statisk rute | Ja |
Stastiske routere | 48 |
Antal IP-grænseflader | 32 |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Pakke bufferlager | 16 MB |
Sikkerhed | |
DHCP funktioner | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Sikkerhedsalgoritmer | HTTPS, SSH, SSH-2, SSL/TLS |
Statisk port, sikkerhed | Ja |
SSH/SSL support | Ja |
Loop beskyttelse | Ja |
BPDU filtrering/beskyttelse | Ja |
IP-MAC-portbinding | Ja |
Godkendelse | Gæste VLAN, MAC-baseret godkendelse, Portbaseret godkendelse |
Beskyttelse af adgangskode | Ja |
Godkendelsestype | AAA, IEEE 802.1x, RADIUS, TACACS+ |
Algoritmer for køplanlægning | SP, WRR+SP, Weighted Round Robin (WRR) |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
Protokoller | |
Administrationsprotokoller | SNMP v1/v2c/v3 |
GARP VLAN registreringsprotokol (GVRP) | Ja |
IPv4 & IPv6 funktioner | IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | Ja |
Understøttelse af redundante blæsere | Ja |
Antal blæsere | 3 blæser(e) |
Præstation | |
Hukommelsestype | DRAM |
Intern hukommelse | 256 MB |
Flashhukommelse | 32 MB |
Tekniske detaljer | |
Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS |
Strømstyring | |
Strømkilde | AC/PoE |
Strømforsyning inkluderet | Ja |
Redundant strømforsyning | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Strømforbrug (maks.) | 629,1 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 16 |
Antal Power over Ethernet 4PPoE-porte (PoE++) | 8 |
Total Power over Ethernet (PoE) | 500 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 2153,45 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 330 mm |
Højde | 44 mm |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Hurtig start guide | Ja |
Rack monteringskit | Ja |
Pakkebredde | 528 mm |
Pakkedybde | 440 mm |
Pakkehøjde | 100 mm |
Pakkevægt | 6,1 kg |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
