Varenummer: HB31C3A1CME
Mere information
-

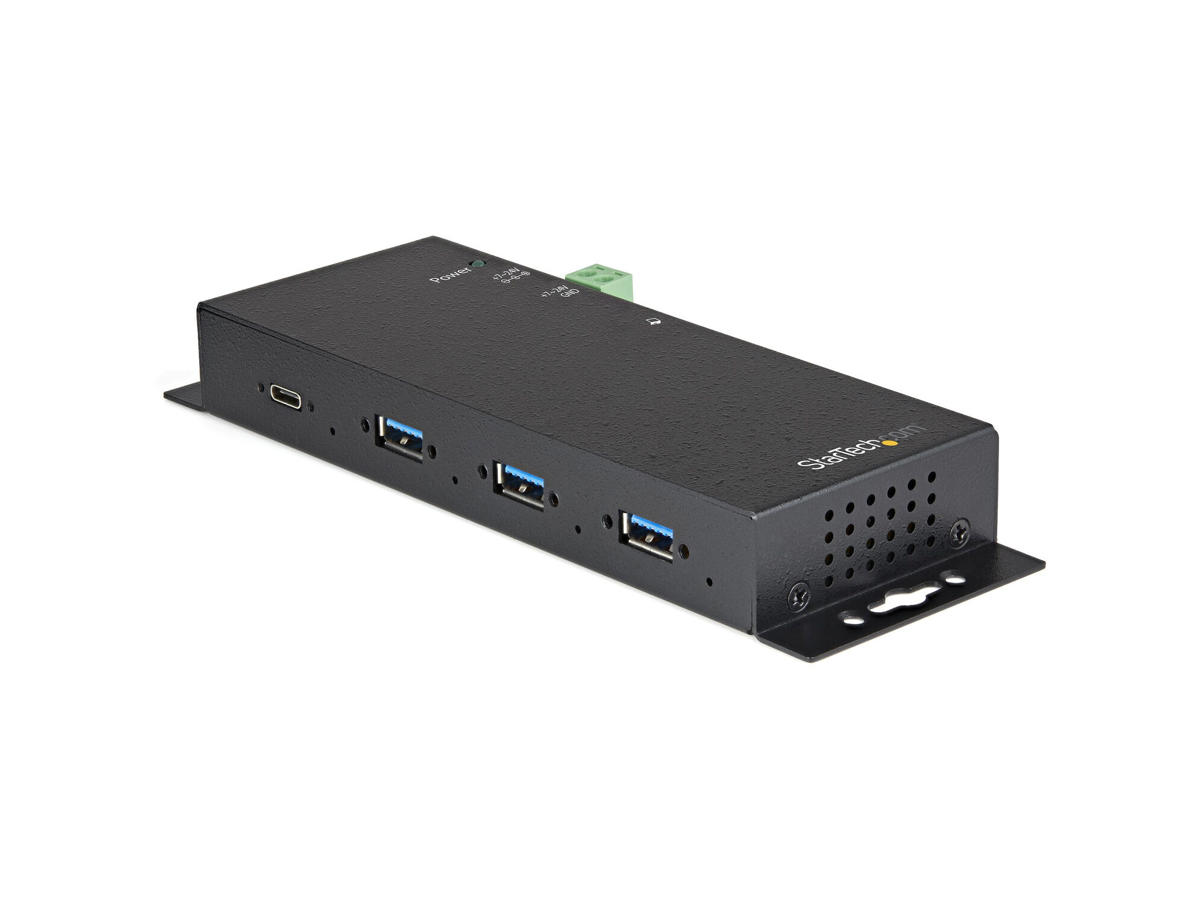

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports
This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.
Expands the Connectivity of Your Computer for Industrial Applications
With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).
Powers and Charges Your Connected Devices
The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.
Ideal for Use in Industrial Environments
This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C & USB-A host cables is included that features a locking screw.
Wide Device Compatibility
The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.
HB31C3A1CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
The StarTech.com Advantage -
Porte & Grænseflader Porte, antal 4 Værtsgrænseflade USB 3.2 Gen 2 (3.1 Gen 2) Type-C Hub-grænseflader USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 3 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 1 Klemrække port Ja Funktioner Dataoverførselshastighed 10000 Mbit/s Produktfarve Sort Husmateriale Stål Beskyttelse ved overspænding Ja LED-indikatorer Link, Strøm Netværk Understøtter UASP Ja Strømstyring Strømforbrug (typisk) 36 W Indgangsspænding 100 - 240 V Indgangsstrøm 1 A Udgangsspænding 12 V Udgangsstrøm 3 A Strømstiktype Type M Vægt & størrelser Bredde 59,6 mm Dybde 152 mm Højde 23,5 mm Vægt 281 g Emballeringsdata Antal pr. pakke 1 stk Pakkebredde 149 mm Pakkedybde 290 mm Pakkehøjde 70 mm Pakkevægt 1,2 kg Emballage indhold Inkluderede strømstik typer ANZ, EU, JP, UK, US Kabler inkluderet USB Type-A til USB Type-C, USB Type-C til USB Type-C Brugervejledning Ja Klemrække inkluderet Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -10 - 55 °C Relativ luftfugtighed ved drift (H-H) 0 - 85% Logistik data Hovedkassens bredde (udvendigt) 390 mm Hovedkassens længde (udvendigt) 515 mm Hovedkassen højde (udvendigt) 313 mm Produkter pr. hovedkasse (udvendigt) 14 stk Harmoniseret systemkode (HS) 84719000 Tekniske detaljer Compliance-certifikater CE, RoHS Andre funktioner Chipsæt VIA/VLI - VL822
