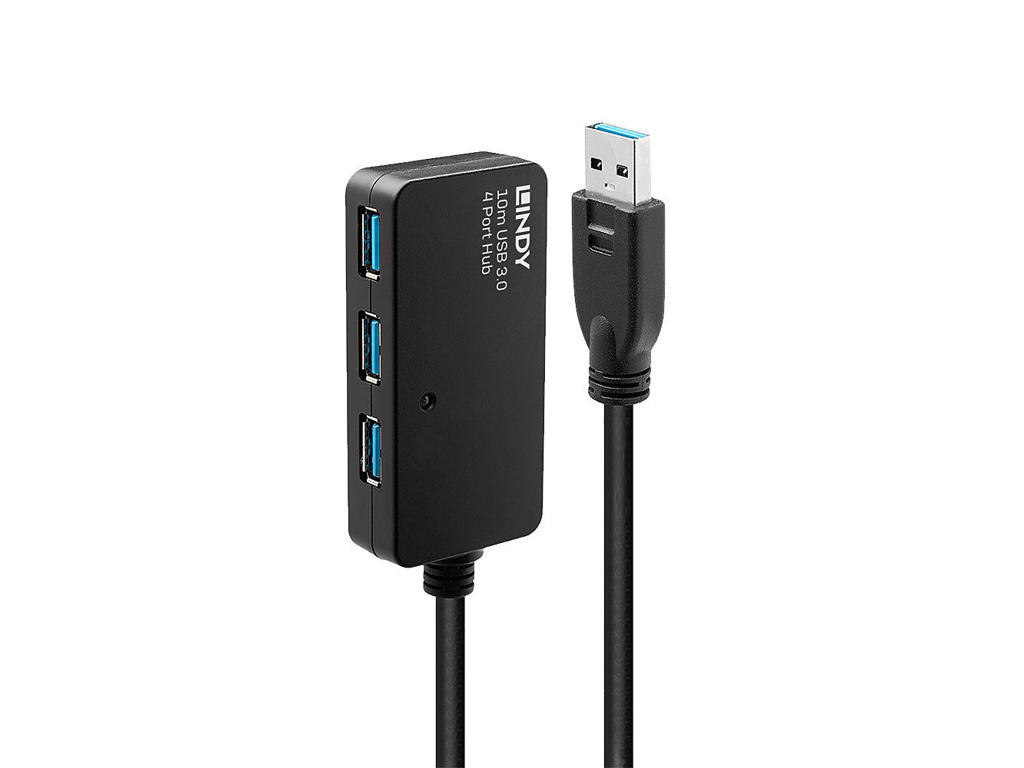

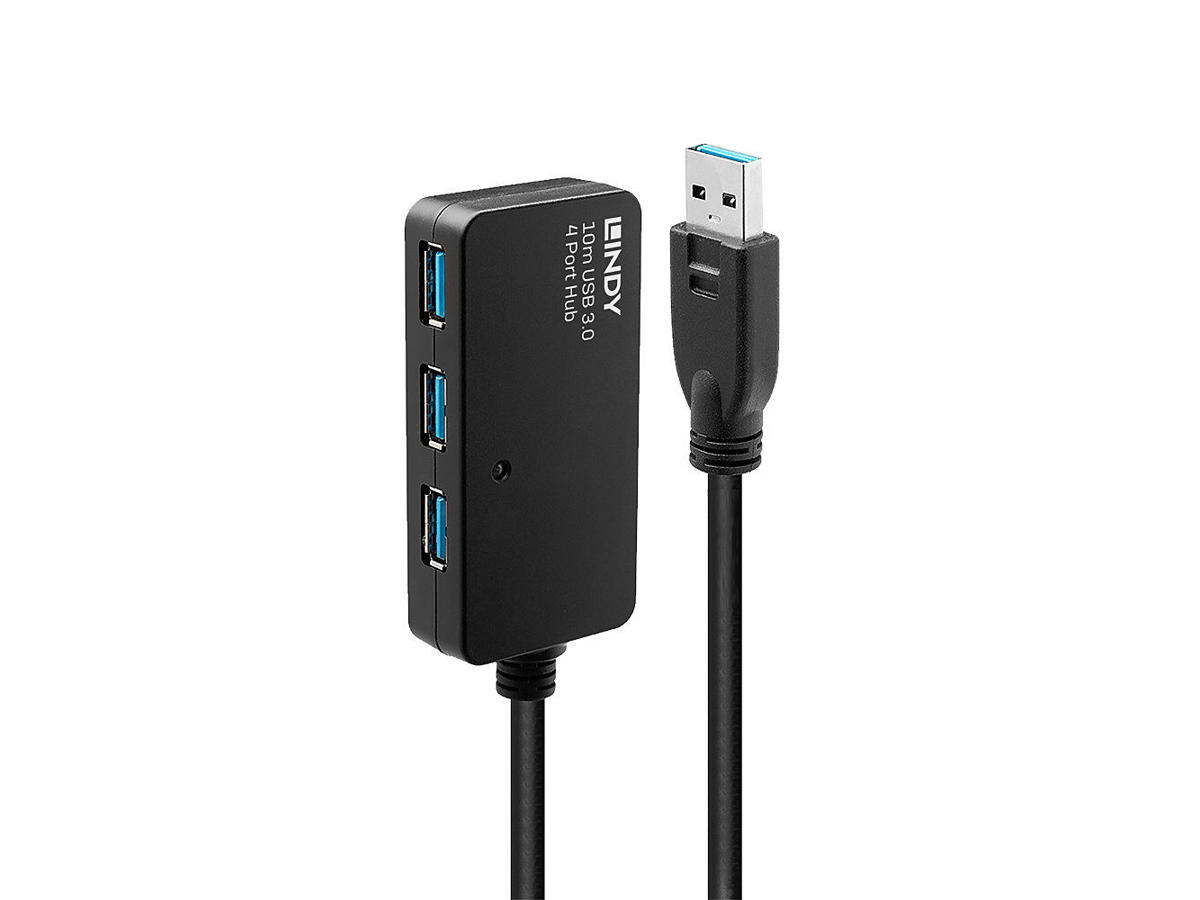

The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps. -
Porte & Grænseflader Porte, antal 4 Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub-grænseflader USB 3.2 Gen 1 (3.1 Gen 1) Type-A Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 DC-in-stik Ja Funktioner Dataoverførselshastighed 5000 Mbit/s Produktfarve Sort Husmateriale Plast LED-indikatorer Ja Kabeltype Rundt kabel Belægningsmateriale Nikkel AWG-ledningsstørrelse 24/24/20 Kabel kappemateriale Polyvinylchlorid (PVC) Kabellængde 10 m Kabeldiameter 7 mm Ledningsmateriale Fortinnet kobber Kontaktmateriale Messing Stikforbindelse kontakter plettering Guld Plug and play Ja Bøjningsradius (min) 3,6 cm Transmissionsmedium Snoet par Nominel dæmpning 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB Certificering CE, UKCA, FCC, RoHS, REACH, California Proposition 65 Strømstyring Effektnote 3.5/1.35mm DC Vægt & størrelser Bredde 80 mm Dybde 38 mm Højde 15 mm Vægt 790 g Stik 1 dimensioner (BxDxH) 15 x 42 x 8 mm Emballeringsdata Antal pr. pakke 1 stk Pakkebredde 240 mm Pakkedybde 200 mm Pakkehøjde 70 mm Pakkevægt 900 g Pakketype Kasse Emballage indhold Brugervejledning Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C, -20 - 60 °F Design Kabelafskærmning Aluminium mylar folie Logistik data Harmoniseret systemkode (HS) 84719000
