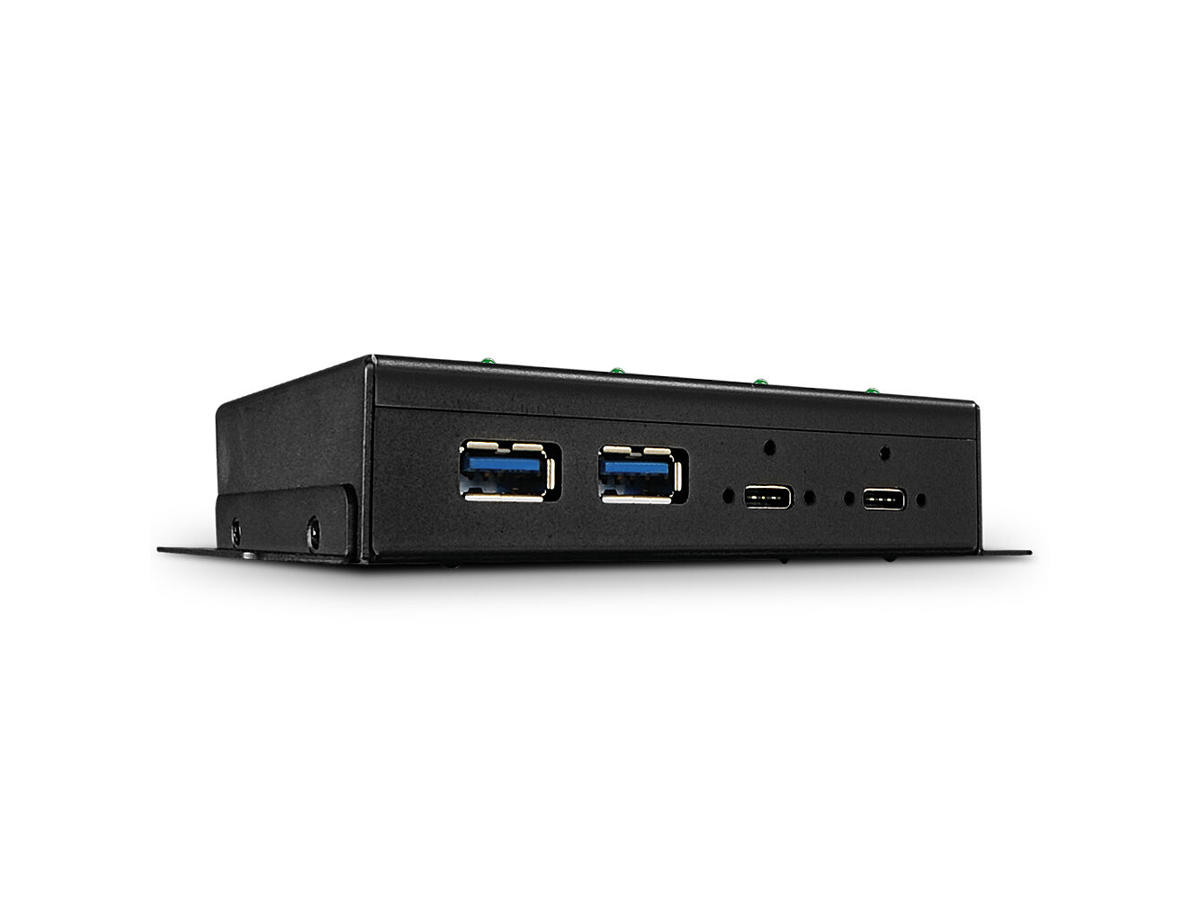

The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Porte & Grænseflader | |
| Porte, antal | 4 |
| Værtsgrænseflade | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub-grænseflader | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
| Klemrække port | Ja |
| DC-in-stik | Ja |
| Funktioner | |
| Dataoverførselshastighed | 10000 Mbit/s |
| Produktfarve | Sort |
| Husmateriale | Metal |
| Certificering | CE, FCC, RoHS, REACH |
| Strømstyring | |
| Indgangsspænding | 5 V |
| Indgangsstrøm | 4 A |
| Vægt & størrelser | |
| Bredde | 135 mm |
| Dybde | 60 mm |
| Højde | 24 mm |
| Vægt | 229 g |
| Emballeringsdata | |
| Pakkebredde | 230 mm |
| Pakkedybde | 198 mm |
| Pakkehøjde | 63 mm |
| Pakkevægt | 667 g |
| Emballage indhold | |
| AC-adapter inkluderet | Ja |
| Kabler inkluderet | USB Type-C |
| Brugervejledning | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C, 32 - 122 °F |
| Opbevaringstemperatur (T-T) | -25 - 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84719000 |
