Varenummer: U223-007-IND-1
Mere information
-

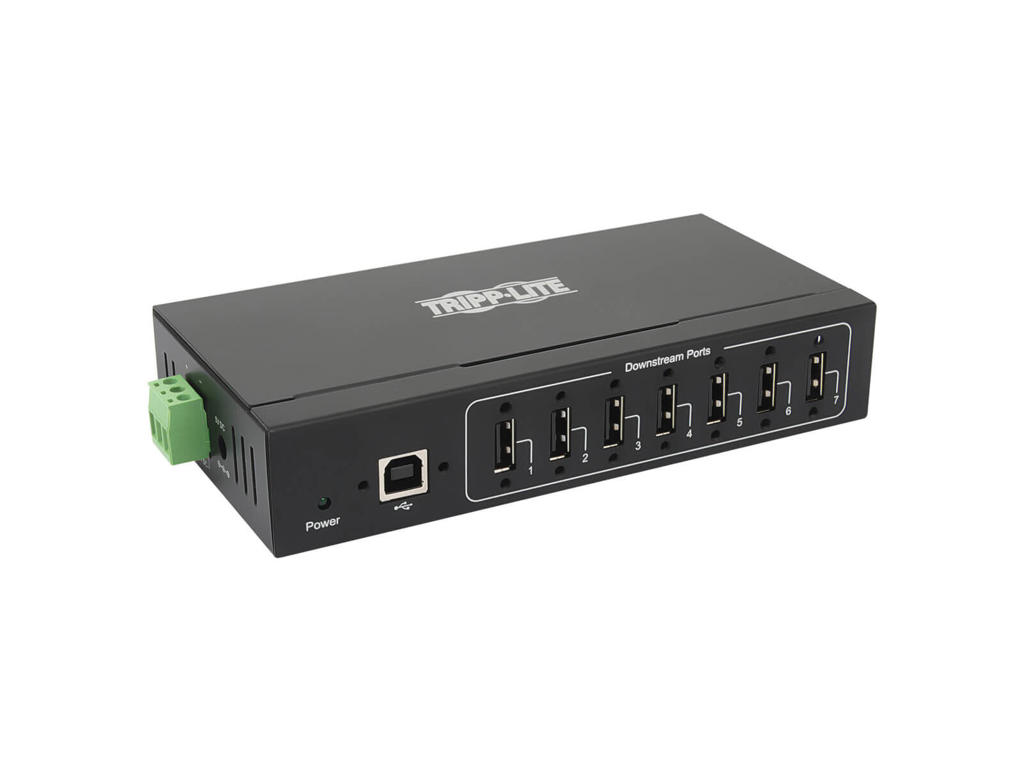

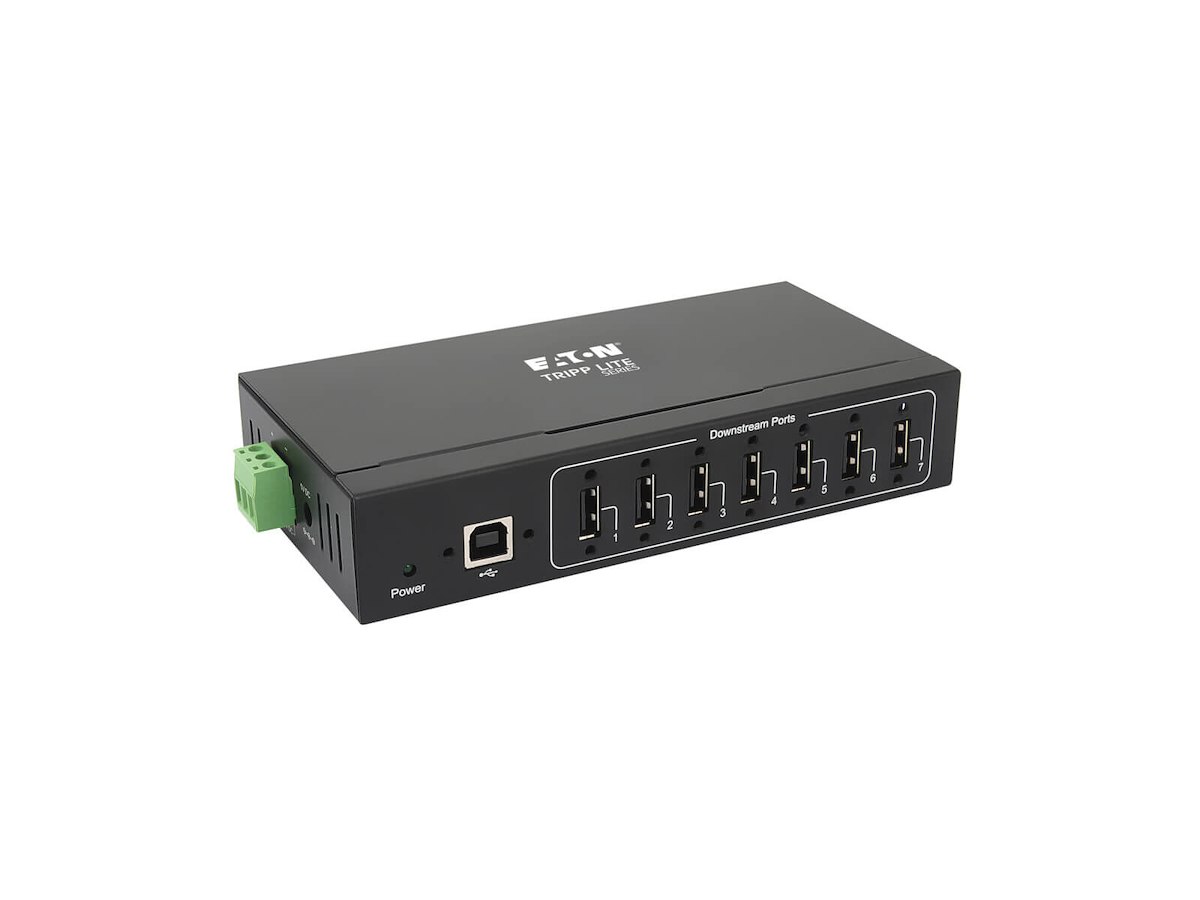

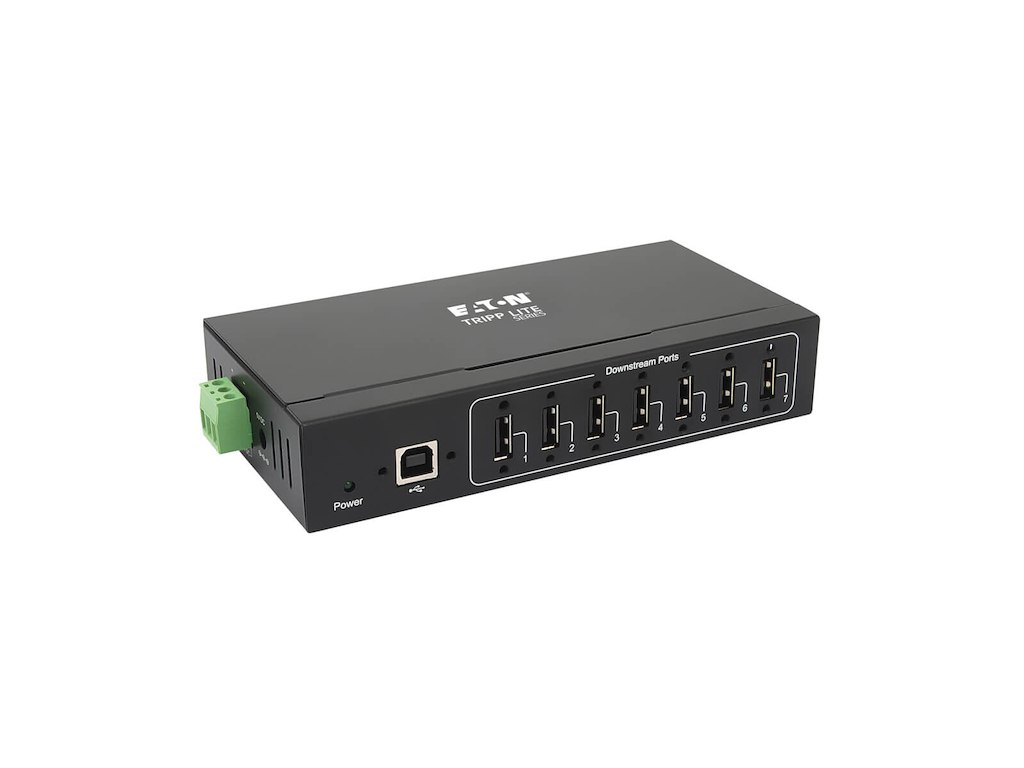

Industrial-Grade USB 2.0 Hub Adds up to 7 USB Devices to Your Computer
This USB 2.0 hub with a heavy-duty all-metal housing connects seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices. All ports support screw-locked USB 2.0 cable to prevent accidental disconnections.
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
Plug-and-Play Hub Offers Flexible Power and Mounting Options
The U223-007-IND-1 requires no software to download and install. It can draw power from the connected computer through a USB-A to USB-B cable. However, for best performance, connecting a compatible 5V 3A DC external power supply (not included) is recommended. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal. A green LED indicates the unit is receiving power. The metal chassis mounts easily to a wall or DIN rail using the included hardware. -
Porte & Grænseflader Porte, antal 7 Værtsgrænseflade USB 2.0 Type-B Hub-grænseflader USB 2.0 Antal USB 2.0-porte 8 Klemrække port Ja Funktioner Dataoverførselshastighed 480 Mbit/s Produktfarve Sort Overgangsstrøm beskyttelse Ja LED-indikatorer Ja Oprindelsesland Malaysia Certificering RoHS, REACH, CE, FCC, NOM Vægt & størrelser Bredde 80 mm Dybde 158 mm Højde 32 mm Vægt 330 g Emballeringsdata Pakkebredde 175 mm Pakkedybde 110 mm Pakkehøjde 65 mm Pakkevægt 520 g Pakketype Kasse Emballage indhold Kabler inkluderet USB Type-A til USB Type-B Brugervejledning Ja Driftsbetingelser Minimal driftstemperatur 0 °C Maksimal driftstemperatur 40 °C Driftstemperatur (T-T) 0 - 40 °C, 32 - 104 °F Opbevaringstemperatur (T-T) -10 - 55 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Logistik data Hovedkassens bredde (udvendigt) 365 mm Hovedkassens længde (udvendigt) 340,1 mm Hovedkassen højde (udvendigt) 125 mm Hovedkassens bruttovægt (udvendigt) 5,6 kg Produkter pr. hovedkasse (udvendigt) 10 stk Hovedkasse (udvendig) GTIN (EAN/UPC) 10037332253030 Harmoniseret systemkode (HS) 8471,80,1000
