Varenummer: HB31C5A2CME
Mere information
-
Add 7 external, wall mountable USB 3.2 (10Gbps) ports from a single USB-C connection

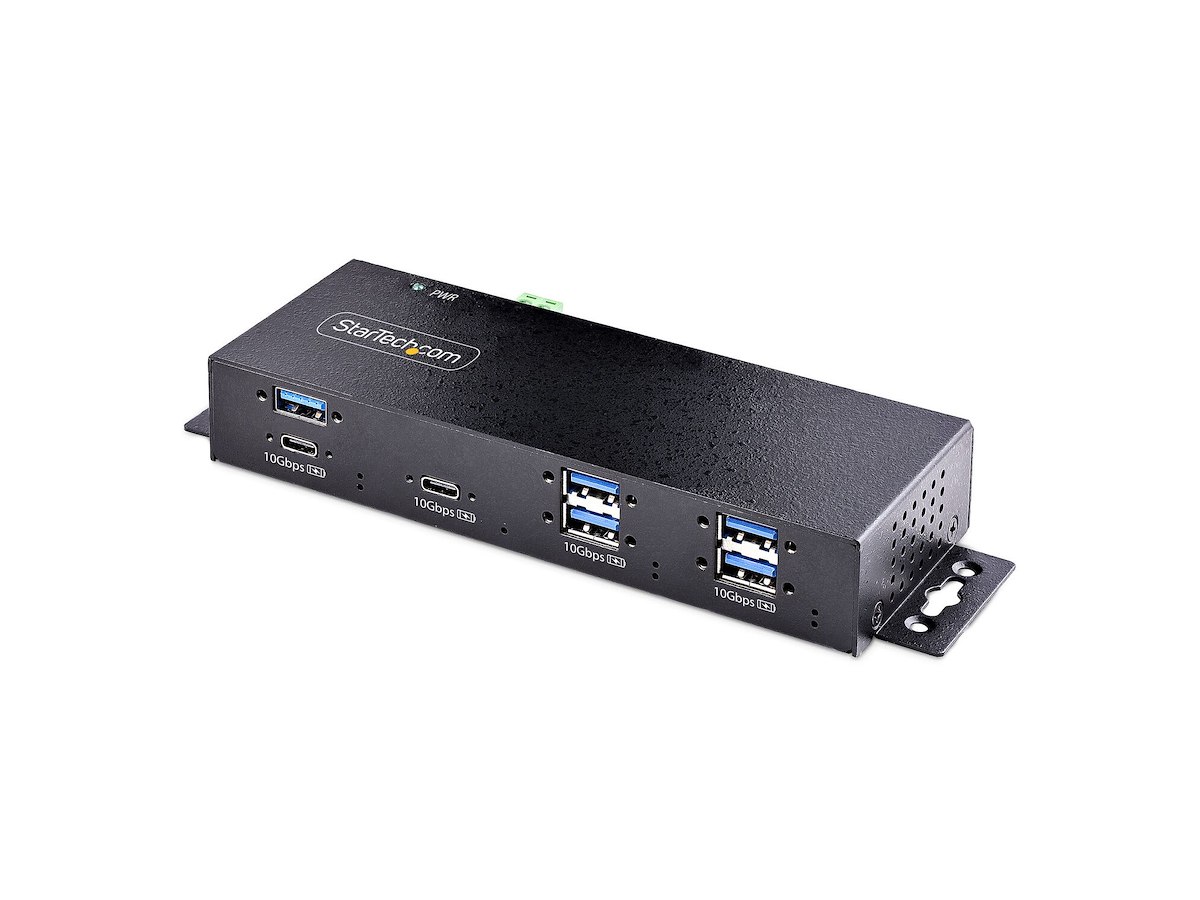

The 7-Port Industrial USB 10Gbps Hub with Power Adapter features 5x USB-A and 2x USB-C device ports. Built with a durable all-metal enclosure, it withstands harsh and industrial environments while offering Level-4 Electrostatic Discharge (ESD) protection (15kV Air / 8kV Contact) to safeguard connected devices. For secure connections, this hub includes two 3.3ft (1m) USB cables (USB-C to C & USB-C to A) with side screw locking to prevent accidental disconnection. The hub can be surface-mounted (on or under a desk, wall-mounted) or DIN rail-mounted, ensuring a secure and space-efficient installation.
Power & Charging
This versatile hub can be powered via the included universal power adapter or the 7-24V DC terminal block, making it ideal for industrial settings or where standard power outlets may be limited.
When not connected to a host, the hub functions as a dedicated charging station, supporting BC1.2 charging / Dedicated Charging Port (DCP) across all ports. Each port delivers up to 2.4A, with a total power budget of 40W (8A) when all ports are in use, ensuring efficient charging for multiple high-powered peripherals.
High-Speed Data Transfer
With speeds of up to 10Gbps on all downstream ports, this hub is ideal for data storage banks, SSDs, NVMe enclosures, RAID drive enclosures, and 3D printers/scanners. It is fully backwards compatible with USB 3.2 Gen 1 (5Gbps), USB 2.0, and USB 1.x devices.
OS-Independent
This TAA Compliant hub is compatible with all operating systems and host devices and has been tested for compatibility with Windows, macOS, Linux, and ChromeOS.
The StarTech.com Advantage -
Porte & Grænseflader Porte, antal 7 Værtsgrænseflade USB 3.2 Gen 2 (3.1 Gen 2) Type-C Hub-grænseflader USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 5 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 2 Klemrække port Ja DC-in-stik Ja Funktioner Dataoverførselshastighed 10000 Mbit/s Produktfarve Sort Husmateriale Stål Beskyttelse ved overspænding Ja Elektrostatisk afledningsbeskyttelse (ESD) (luft) 15 kV Elektrostatisk afladning (ESD) beskyttelse (kontakt) 8 kV LED-indikatorer Ja Strømstyring Strømforsyningstype DC Indgangsspænding 100 - 240 V Vægt & størrelser Bredde 26 mm Dybde 60 mm Højde 178 mm Vægt 300 g Emballeringsdata Pakkebredde 290 mm Pakkedybde 187 mm Pakkehøjde 70 mm Pakkevægt 1,4 kg Emballage indhold AC-adapter inkluderet Ja Inkluderede strømstik typer ANZ, EU, JP, NA, UK Kabler inkluderet USB Type-A til USB Type-C, USB Type-C til USB Type-C DIN skinnesæt inkluderet Ja Hurtig start guide Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 55 °C Opbevaringstemperatur (T-T) -20 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Præstation Gennemsnitstid mellem fejl (MTBF) 163021,7 t Logistik data Hovedkassens bredde (udvendigt) 515 mm Hovedkassens længde (udvendigt) 390 mm Hovedkassen højde (udvendigt) 313 mm Produkter pr. hovedkasse (udvendigt) 14 stk Tekniske detaljer Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS, Lov om handelsaftaler (TAA) Andre funktioner Chipsæt VIA/VLI VL822
