Varenummer: HDMI2PNLFM-180CM
Mere information
-
Add an external panel mount HDMI 2.0 connection to a workstation or faceplate

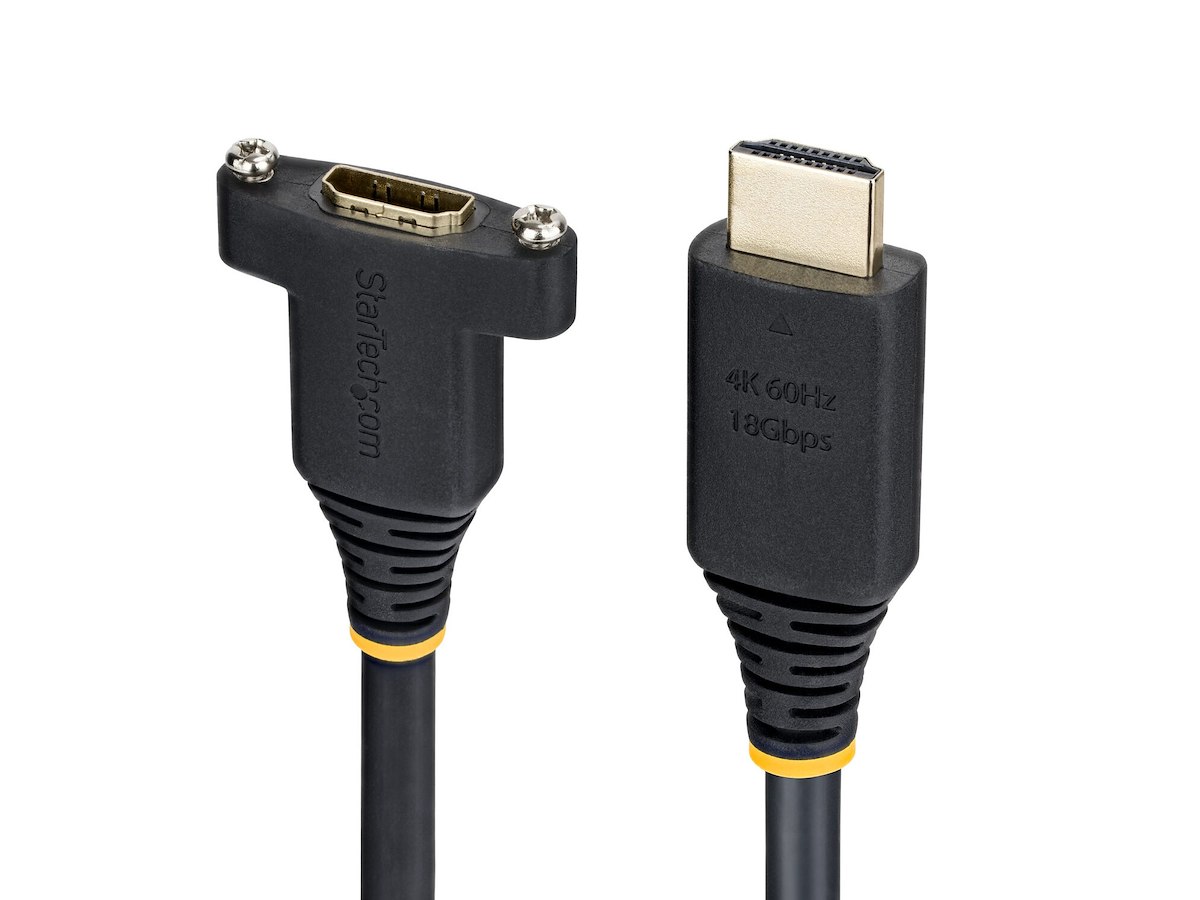

Extend an HDMI connection to an AV panel or face plate using this HDMI male to panel mount female extension cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.
Simplify Port Layouts
Provide a clean HDMI connection point for retail kiosks and public booths, lecture podiums, conference rooms, and other shared AV environments. This panel mount HDMI extension cable enables convenient access through the panel-mounted female port, while the male HDMI connector routes behind the panel to an HDMI device or internal cable run, reducing wear on source HDMI ports from frequent connections.
Durable Design
This High Speed HDMI® Cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Gold-plated connectors are rated to operate beyond 10,000 insertions.
Supported HDMI 2.0 Features:
The Panel Mount HDMI cable supports full HDMI 2.0 features:
• Resolutions up to 4K 60Hz using a compatible HDMI source and display
• Supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• 21:9 Aspect Ratio support for cinematic viewing experiences
• High Dynamic Range (HDR10) for higher contrast ratio and vibrant picture quality
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• Audio Return Channel (ARC) for sending audio from the TV back to an AV receiver or soundbar
• Up to 32 Uncompressed Digital Audio Channels
• HDMI Ethernet Channel (HEC) for network connectivity over HDMI
• Backward compatible with previous HDMI versions
This HDMI 2.0 Cord is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Funktioner Kabellængde 1,8 m Stik 1 HDMI Type A (Standard) Stik 2 HDMI Type A (Standard) Stik 1 køn Hanstik Stik 2 køn Hunstik HDMI-kabeltype High Speed HDMI cable Produktfarve Sort Stikforbindelse kontakter plettering Guld Stik 1 formfaktor Lige Stik 2 formfaktor Lige HDMI-version 2.0 Understøttede grafikopløsninger 3840 x 2160, 2560 x 1440, 5120 x 2880, 1920 x 1080 (HD 1080) Dolby-teknologier Dolby TrueHD Audio Return Channel (ARC) Ja HDCP Ja HDCP-version 2.2 Dataoverførselshastighed 18 Gbit/sek. High Dynamic Range (HDR) understøttet Ja HDR-teknologi (High Dynamic Range) High Dynamic Range 10 (HDR10), Dolby Vision Understøttede digitale lydkanaler (ukomprimeret) 32, 7.1 Maksimal opløsning 5120 x 2880 pixel AWG-ledningsstørrelse 28 Kabel kappemateriale Termoplastisk elastomer (TPE) Kabelafskærmning Aluminium mylar folie Farvedybde 10 Bit Farveprøvetagning 4:4:4 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Godkendelser Compliance-certifikater RoHS Vægt & størrelser Kabeldiameter 7,3 mm Vægt 106 g Emballeringsdata Antal pr. pakke 1 stk Pakkebredde 190 mm Pakkedybde 110 mm Pakkehøjde 23 mm Pakkevægt 117 g Logistik data Hovedkassens bredde (udvendigt) 400 mm Hovedkassens længde (udvendigt) 350 mm Hovedkassen højde (udvendigt) 250 mm Produkter pr. hovedkasse (udvendigt) 60 stk
