Varenummer: HD2AP-15M-HDMI-CABLE
Mere information
-
Reliably connect high-bandwidth HDMI 2.0 devices through plenum spaces
Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio.
HDMI UHD Over Long Distances
The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.
Full-Featured HDMI 2.0
The Active HDMI UHD Cable supports full HDMI 2.0 specifications:
• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz)
• High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Audio Return Channel (ARC) for 7.1 and 32-channel audio
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities
• Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing
Plenum-Rated Cabling
This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.

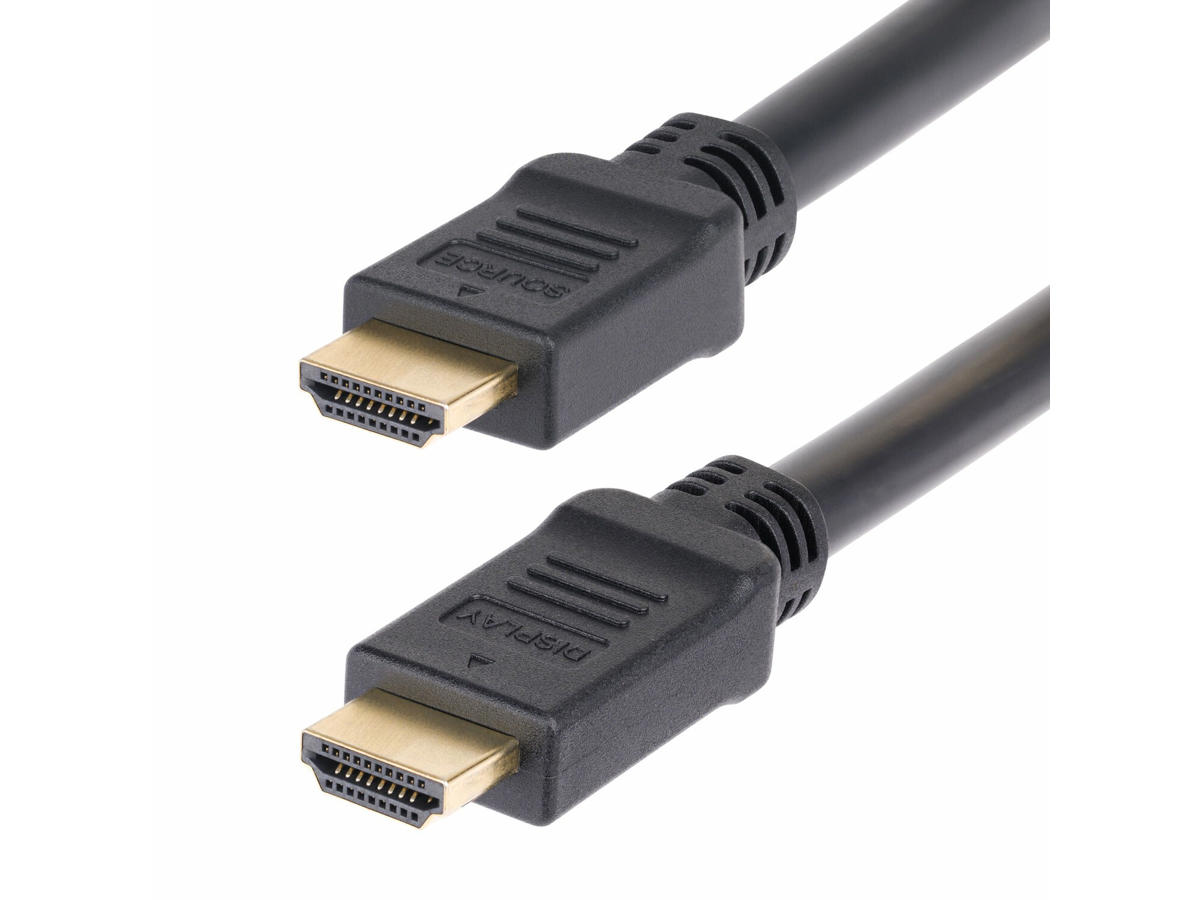

Note : This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.
The StarTech.com Advantage -
Funktioner Kabellængde 15 m Stik 1 HDMI Type A (Standard) Stik 2 HDMI Type A (Standard) Stik 1 køn Hanstik Stik 2 køn Hanstik Produktfarve Sort Stikforbindelse kontakter plettering Guld Stik 1 formfaktor Lige Stik 2 formfaktor Lige HDMI-version 2.0 Understøttede grafikopløsninger 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 Understøttede videotilstande 1080p, 1440p, 2560p Audio Return Channel (ARC) Ja HDCP-version 2.2 Dataoverførselshastighed 18 Gbit/sek. High Dynamic Range (HDR) understøttet Ja HDR-teknologi (High Dynamic Range) High Dynamic Range 10 (HDR10) Understøttede digitale lydkanaler (ukomprimeret) 7.1, 32 Envejs Ja Maksimal opdateringshastighed 120 Hz AWG-ledningsstørrelse 24/28 Kabelmateriale Kobber Kabel vurdering CMP Kabeltype Rundt kabel Kabel kappemateriale Polyvinylchlorid (PVC) Kabelafskærmning Aluminium mylar folie Farvedybde 10 Bit Driftsbetingelser Driftstemperatur (T-T) -20 - 70 °C Opbevaringstemperatur (T-T) 0 - 50 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Godkendelser Compliance-certifikater CE, RoHS Vægt & størrelser Kabeldiameter 9 mm Emballeringsdata Antal pr. pakke 1 stk Pakkebredde 250 mm Pakkedybde 250 mm Pakkehøjde 35 mm Pakkevægt 1,4 kg Logistik data Hovedkassens bredde (udvendigt) 400 mm Hovedkassens længde (udvendigt) 300 mm Hovedkassen højde (udvendigt) 300 mm Produkter pr. hovedkasse (udvendigt) 10 stk Bæredygtighed Overholdelse af bæredygtighed Ja
