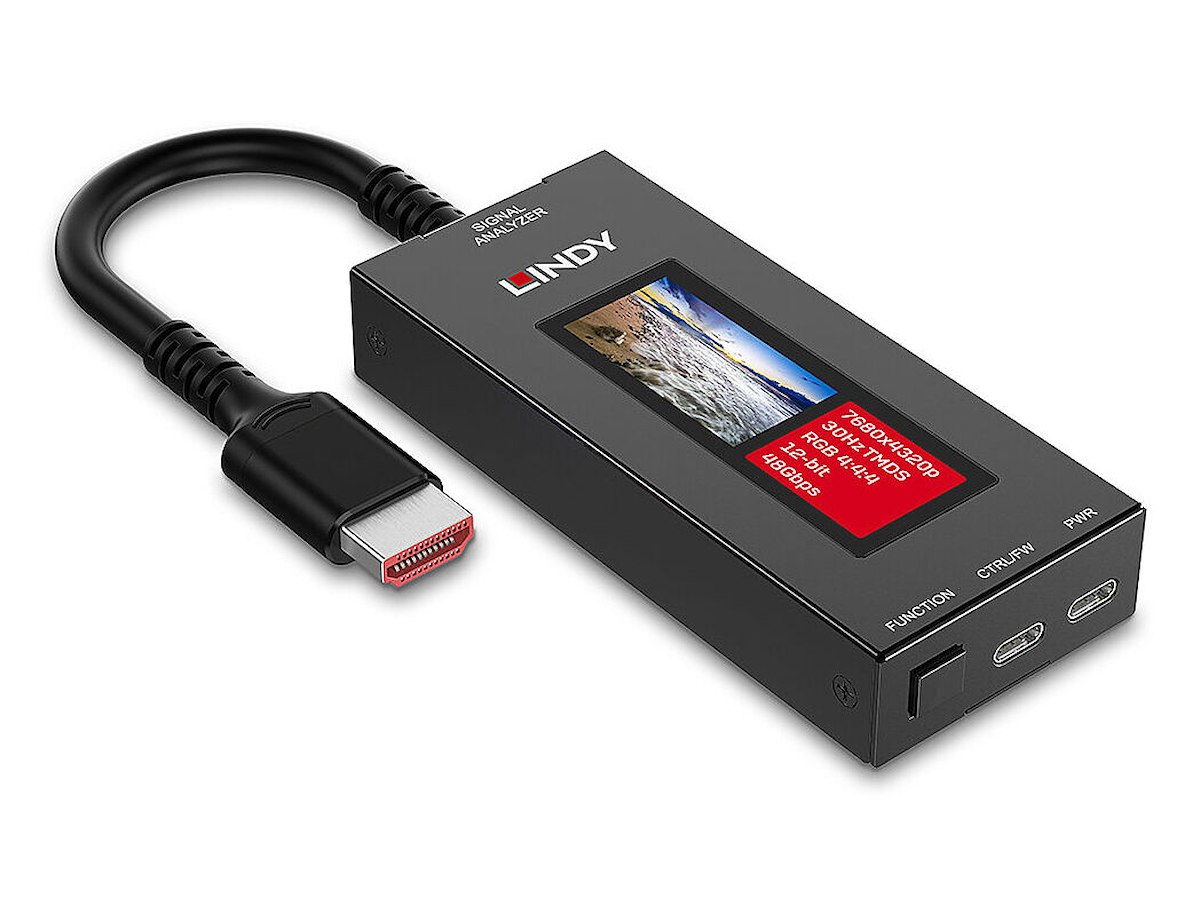

This analyzer supports both FRL and TMDS signal analysis, enabling the evaluation of a wide range of HDMI® signal types up to 40G 8K60 resolution.
For real-time signal monitoring, the upper display presents comprehensive information, including video image quality, resolution, signal format, color space, bit depth, and bandwidth utilization.
It provides a LCD screen for real-time monitoring and browse the options, in addition it can be managed over serial communication though a dedicated USB-C port.
Powered over USB-C port, compact in size yet powerful in capability, the analyzer combines signal analysis, intuitive operation, and reliable performance, making it an ideal tool for HDMI® signal monitoring and diagnostics.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Funktioner Produkttype Signal analyzer Produktfarve Sort Husmateriale Metal Kontroltype Knapper Farveprøvetagning 4:2:0 Indbygget skærm Ja Skærmtype LCD Opløsning ved indfangningshastighed 7680x4320@60fps Farvedybde 12 Bit Understøttede videotilstande 4320p HDCP-version 2.3 Dolby-teknologier Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, DTS-HD Master Audio Maksimal båndbredde (HDMI) 40 Gbit/sek. HDMI-version 2.1 Porte & Grænseflader USB porttype USB Type-C Stiktype HDMI Type-A Antal USB type-C-porte 2 Strømstyring Strømkilde USB Type-C Indgangsspænding 5 V Indgangsstrøm 1.5 A Strømforbrug 4,6 W Driftsbetingelser Driftstemperatur (T-T) -5 - 55 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Godkendelser Compliance-certifikater CE, UKCA, Federal Communications Commission (FCC), RoHS, REACH Vægt & størrelser Bredde 260 mm Dybde 48 mm Højde 19 mm Vægt 113 g Emballage indhold Brugervejledning Ja USB-kabel Ja Emballeringsdata Pakketype Kasse Pakkebredde 292 mm Pakkedybde 144 mm Pakkehøjde 32 mm Pakkevægt 305 g Logistik data Garantiperiode 3 År
