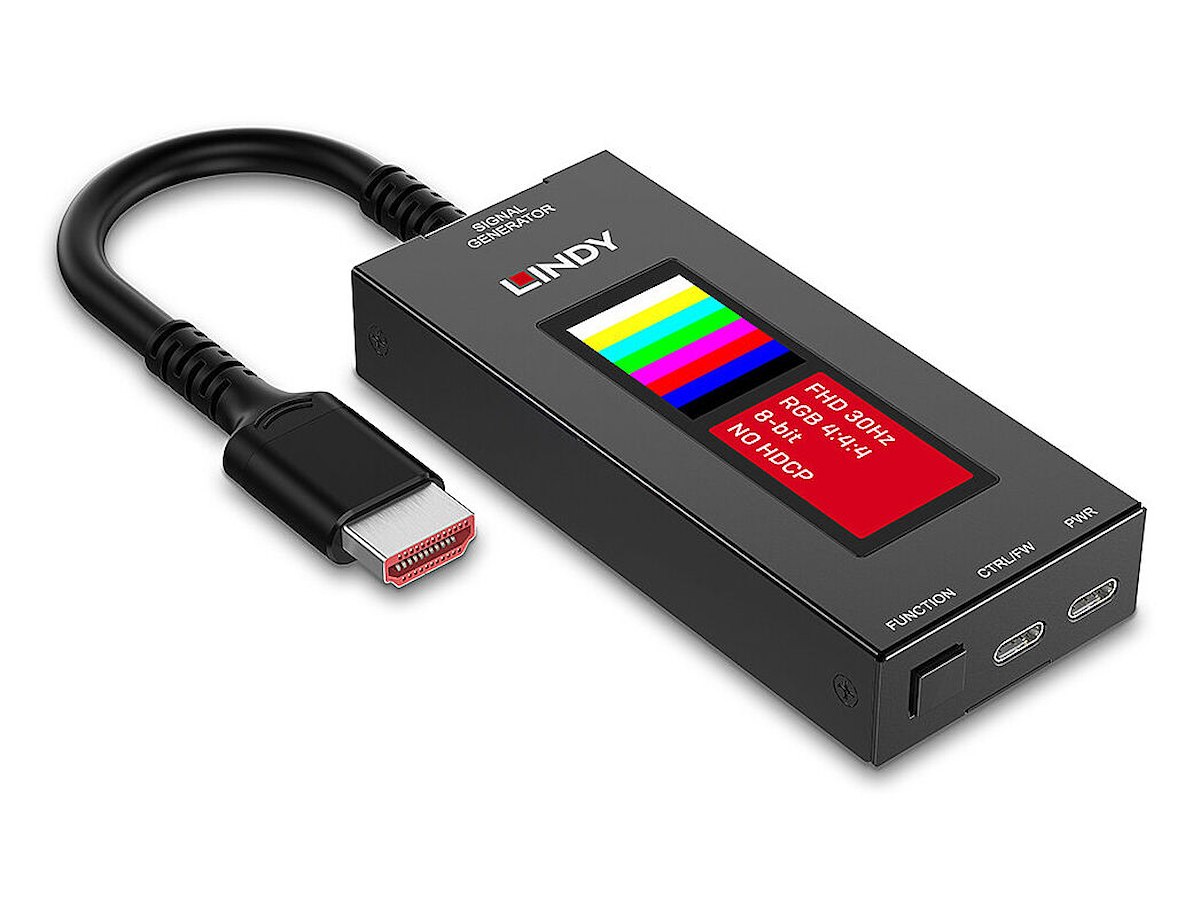

This generator supports a total bandwidth of up to 40Gbps, it can create a wide range of signal formats and includes multiple preset modes to meet the requirements of various test environments. In addition, a comprehensive set of built-in test patterns is provided to support multi-angle verification of display devices.
Powered over USB-C port, it provides a LCD screen for real-time monitoring and browse the options. It can also be managed over serial communication though another dedicated USB-C port.
Compact in size yet powerful in functionality, the generator combines extensive signal generation capabilities, intuitive operation, and stable performance, making it an ideal tool for HDMI® signal generation and display validation.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Funktioner Produkttype Signal generator Produktfarve Sort Husmateriale Metal Number of test patterns 13 Kontroltype Knapper Farveprøvetagning 4:4:4 Indbygget skærm Ja Skærmtype LCD Opløsning ved indfangningshastighed 7680x4320@30fps Farvedybde 12 Bit Understøttede videotilstande 4320p HDCP-version 2.3 Maksimal båndbredde (HDMI) 40 Gbit/sek. HDMI-version 2.1 Porte & Grænseflader USB porttype USB Type-C Stiktype HDMI Type-A Antal USB type-C-porte 2 Strømstyring Strømkilde USB Type-C Indgangsspænding 5 V Indgangsstrøm 1 A Strømforbrug 2,3 W Driftsbetingelser Driftstemperatur (T-T) -5 - 55 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Bæredygtighed Indeholder ikke Bly, Kviksølv, Cadmium Godkendelser Compliance-certifikater CE, UKCA, Federal Communications Commission (FCC), RoHS, REACH Vægt & størrelser Bredde 260 mm Dybde 48 mm Højde 19 mm Vægt 110 g Emballage indhold Brugervejledning Ja USB-kabel Ja Emballeringsdata Pakketype Kasse Pakkebredde 292 mm Pakkedybde 144 mm Pakkehøjde 32 mm Pakkevægt 300 g Logistik data Garantiperiode 3 År
