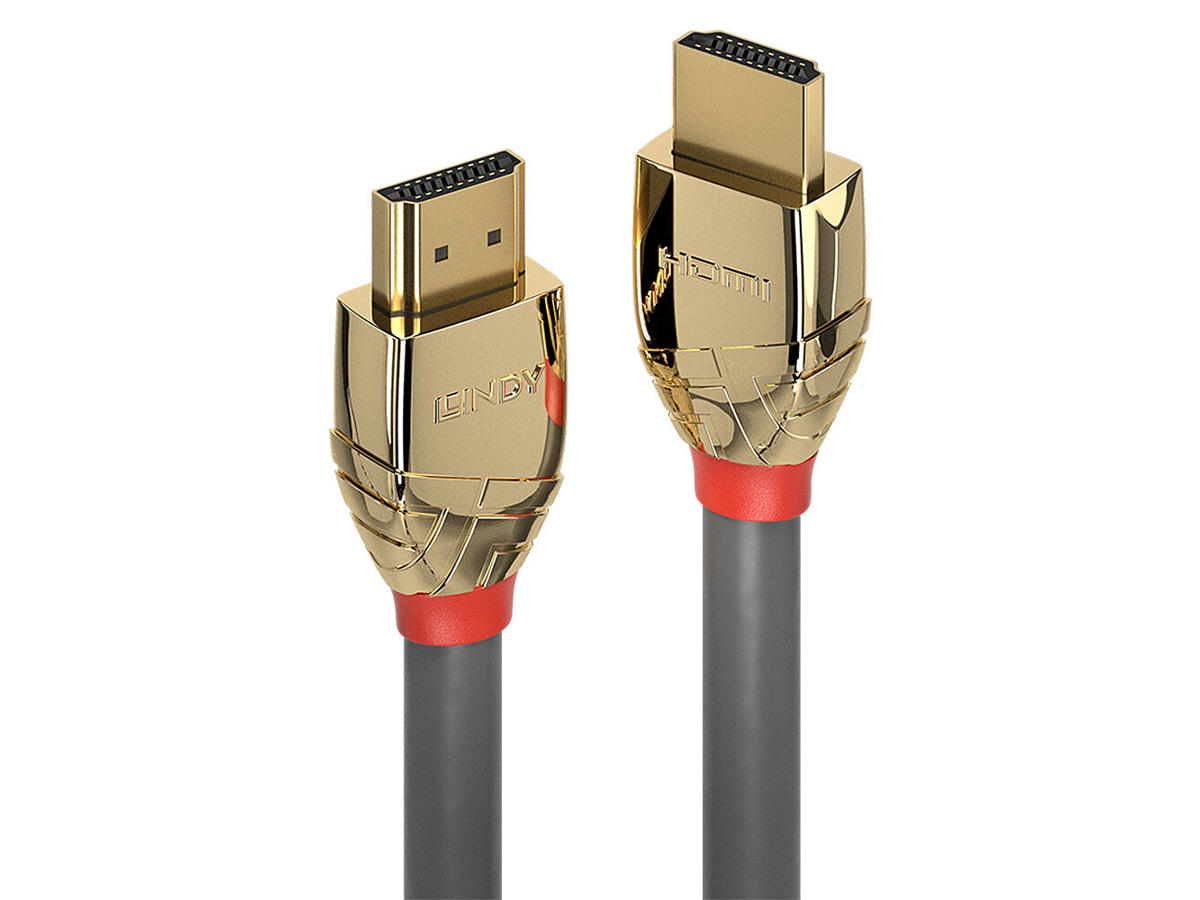

From the Lines cable connectivity concept developed by Lindy, Gold Line High Speed HDMI cables are the no compromise, high performance connection solution for use in the most demanding professional environments.
Gold Line High Speed HDMI cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Gold Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
The HDMI 2.0 specification is supported for 18G bandwidth capacity in cable lengths up to 7.5m. Gold Line HDMI cables are classified as High Speed up to 7.5m and Standard at lengths above 7.5m
Gold Line HDMI cables are available in lengths from 0.5m to 20m. -
Funktioner Kabellængde 5 m Stik 1 HDMI Type A (Standard) Stik 2 HDMI Type A (Standard) Stik 1 køn Hanstik Stik 2 køn Hanstik HDMI-kabeltype High Speed HDMI cable with Ethernet Produktfarve Grå Stikforbindelse kontakter plettering Guld Stik 1 formfaktor Lige Stik 2 formfaktor Lige HDMI Ethernet-kanal Ja Dataoverførselshastighed 18 Gbit/sek. Maksimal opløsning 4096 x 2160 pixel AWG-ledningsstørrelse 24 Kabel kappemateriale Polyvinylchlorid (PVC) Skjold materiale Kobber Farvedybde 8 Bit Nominel dæmpning 300kHz-825MHz <5dB825MHz-2.475GHz <5dB2.475GHz-4.125GHz <12dB4.125GHz-5.1GHz <20dB Driftsbetingelser Driftstemperatur (T-T) -10 - 80 °C Opbevaringstemperatur (T-T) -10 - 80 °C Godkendelser Compliance-certifikater REACH, RoHS, UL Certificering RoHS, REACH, UL Vægt & størrelser Kabeldiameter 8,5 mm Emballeringsdata Pakkebredde 259 mm Pakkedybde 236 mm Pakkehøjde 40 mm Pakketype Polybag Andre funktioner Stik HDMI A Male to HDMI A Male Dybde 34,1 mm Højde 11,6 mm Understøttede opløsninger 4 8bit Bredde 20 mm Logistik data Harmoniseret systemkode (HS) 84733080 Produkter pr. hovedkasse (udvendigt) 16 stk
