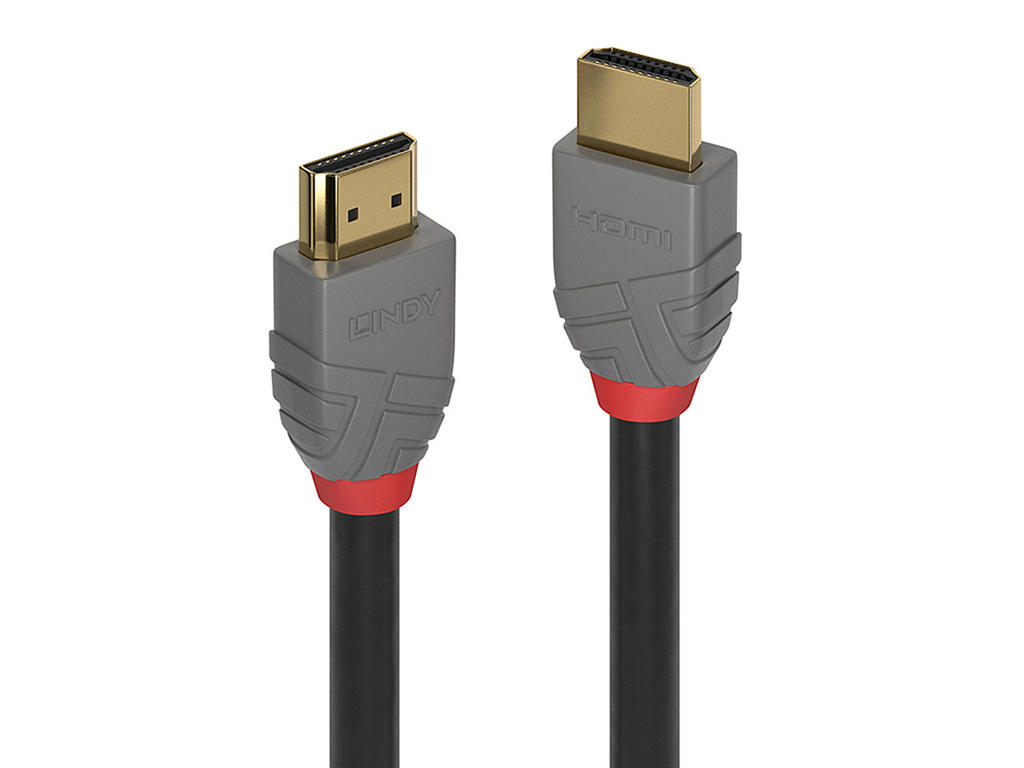

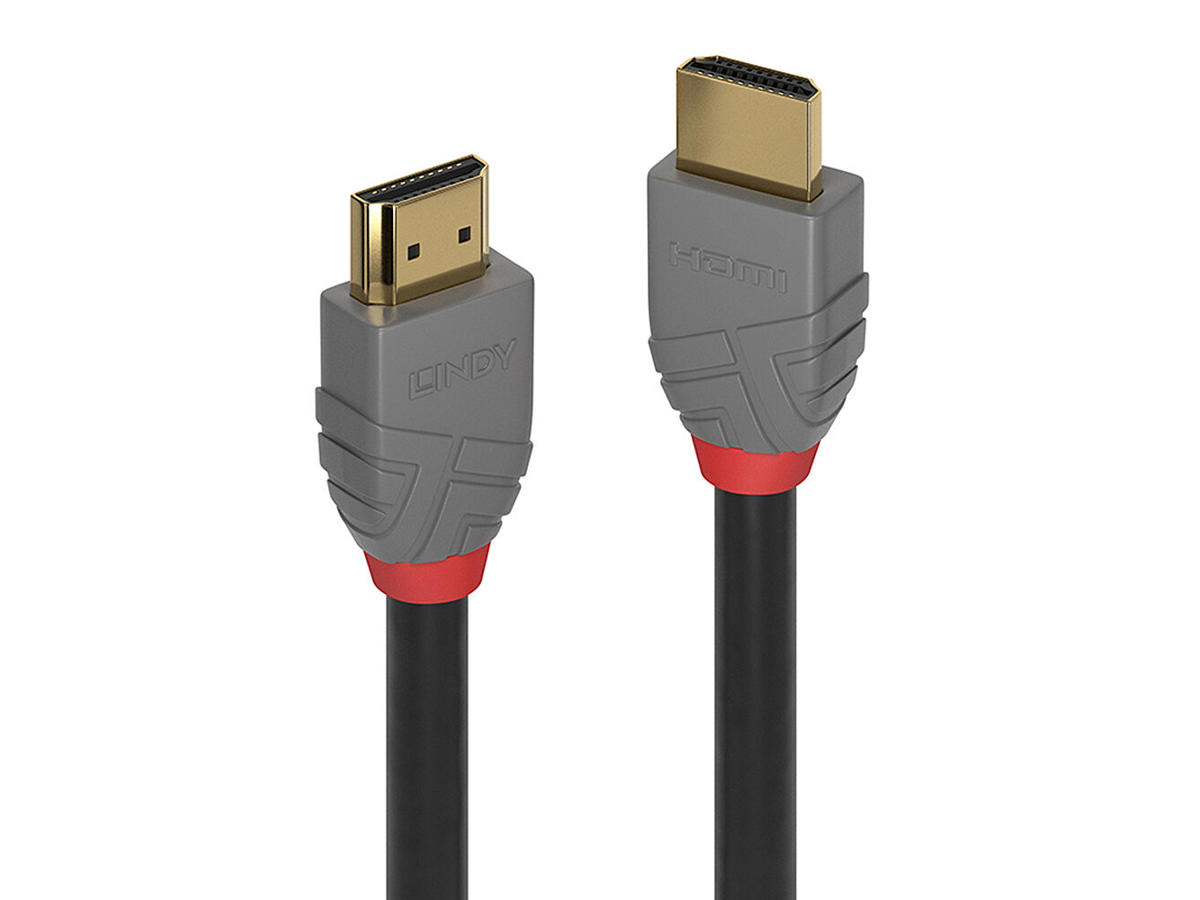

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m. -
Funktioner Kabellængde 2 m Stik 1 HDMI Type A (Standard) Stik 2 HDMI Type A (Standard) Stik 1 køn Hanstik Stik 2 køn Hanstik HDMI-kabeltype High Speed HDMI cable with Ethernet Produktfarve Sort Stikforbindelse kontakter plettering Guld Stik 1 formfaktor Lige Stik 2 formfaktor Lige HDMI-version 2.0 3D Ja Understøttede grafikopløsninger 4096 x 2160 Understøttede videotilstande 1080p Dolby-teknologier DTS-HD Master Audio, Dolby TrueHD Audio Return Channel (ARC) Ja HDMI Ethernet-kanal Ja Dataoverførselshastighed 18 Gbit/sek. Maksimal opløsning 4096 x 2160 pixel AWG-ledningsstørrelse 30 Kontaktmateriale Fosforbronze Materiale til stikhus Polyvinylchlorid (PVC) Tilslutningsmateriale Guld Kabelmateriale Kobber Kabeltype Rundt kabel Kabel kappemateriale Polyvinylchlorid (PVC) Skjold materiale Kobber Bøjningsradius (min) 4,8 cm Farvedybde 8 Bit Farveprøvetagning 4:4:4 Nominel dæmpning 300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB Driftsbetingelser Driftstemperatur (T-T) -30 - 80 °C Opbevaringstemperatur (T-T) -10 - 85 °C Godkendelser Compliance-certifikater REACH, RoHS, UL Certificering RoHS, REACH, UL, ATC Vægt & størrelser Kabeldiameter 6 mm Stik 1 dimensioner (BxDxH) 20 x 34,2 x 10,9 mm Stik 2 dimensioner (BxDxH) 20 x 34,2 x 10,9 mm Emballeringsdata Antal pr. pakke 1 stk Pakkebredde 194 mm Pakkedybde 174 mm Pakkehøjde 20 mm Pakketype Polybag Andre funktioner Stik HDMI A Male to HDMI A Male Dybde 34,2 mm Højde 10,9 mm Understøttede opløsninger 4 8bit Bredde 20 mm Logistik data Harmoniseret systemkode (HS) 84733080 Produkter pr. hovedkasse (udvendigt) 80 stk
