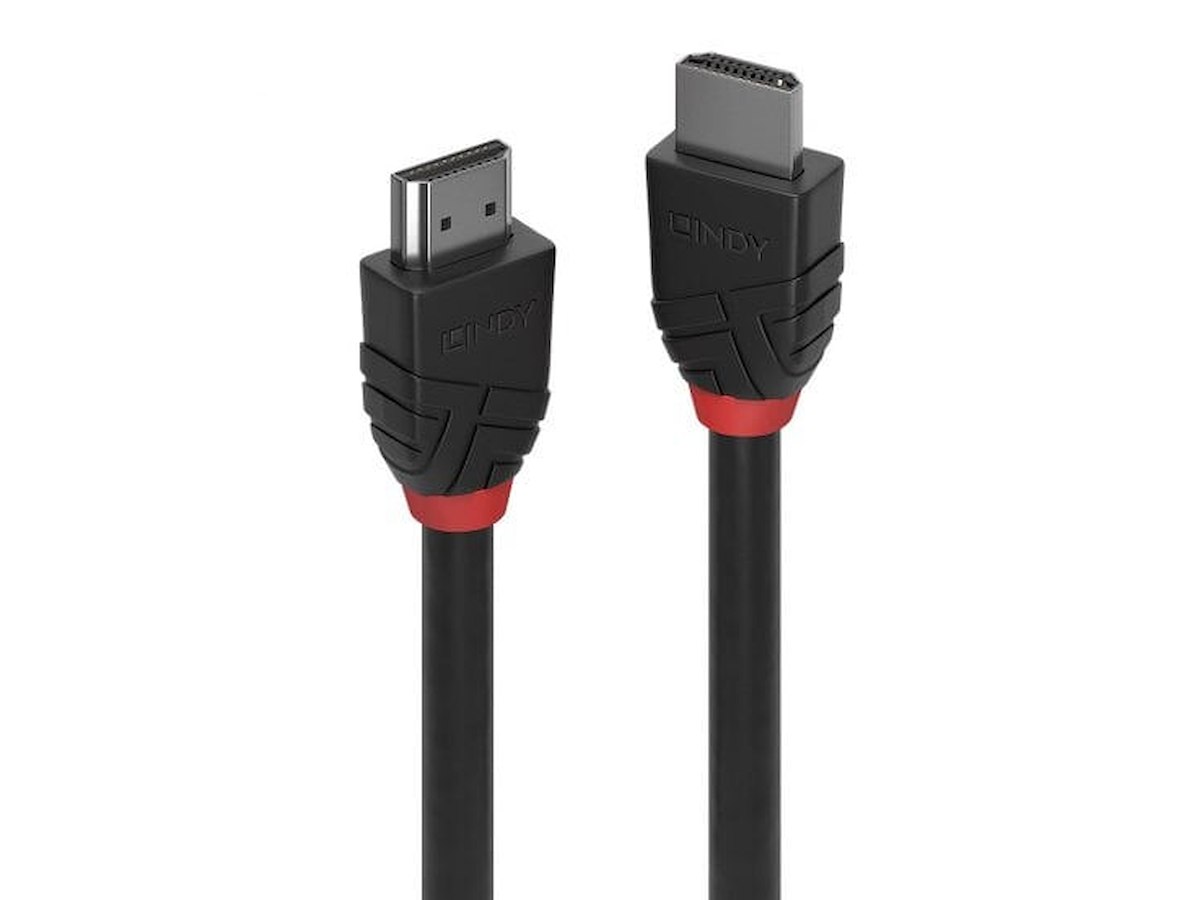

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Ideal for safety-critical installations, this cable is perfectly suited for public environments such as schools, transport hubs, and government buildings, anywhere safety compliance and performance are essential.
The cable features a double shielded construction with 30AWG bare copper for premium performance featuring gold connectors and gold flashed contacts to maintain signal integrity and reliability.
Supporting 18Gbps bandwidth the Lindy LSZH HDMI® Cable can support UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit. Whilst also transmitting up to 32 Channel audio including Dolby® True HD & DTS-HD Master Audio.
The Lindy LSZH HDMI® Cable is available in lengths from 0.5m to 10m.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Funktioner Kabellængde 1 m Stik 1 HDMI Type A (Standard) Stik 2 HDMI Type A (Standard) Stik 1 køn Hanstik Stik 2 køn Hanstik HDMI-kabeltype High Speed HDMI cable Produktfarve Sort Stikforbindelse kontakter plettering Guld Stik 1 formfaktor Lige Stik 2 formfaktor Lige 3D Ja Understøttede grafikopløsninger 3840 x 2160 Understøttede videotilstande 2160p Dolby-teknologier DTS-HD Master Audio, Dolby TrueHD Dataoverførselshastighed 18 Gbit/sek. Understøttede digitale lydkanaler (ukomprimeret) 32 Maksimal opdateringshastighed 60 Hz AWG-ledningsstørrelse 30 Kabelmateriale Kobber Kabeltype Rundt kabel Kabel kappemateriale Lav røg ingen halogen (LSZH), Polyvinylchlorid (PVC) Magnetisk afskærmet Ja Skjold materiale Aluminium Bøjeradius (min.) 6 cm Plug and play Ja Farveprøvetagning 4:4:4 Nominel dæmpning 300kHz~825MHz<5dB 825MHz~2.475GHz<5dB 2.475GHz~4.125GHz<12dB 4.125GHz~5.1GHz<20dB Driftsbetingelser Driftstemperatur (T-T) -10 - 80 °C Opbevaringstemperatur (T-T) -20 - 85 °C Bæredygtighed Indeholder ikke Halogen Godkendelser Compliance-certifikater REACH, RoHS Vægt & størrelser Kabeldiameter 5,5 mm Emballeringsdata Antal pr. pakke 1 stk Pakketype Polybag
