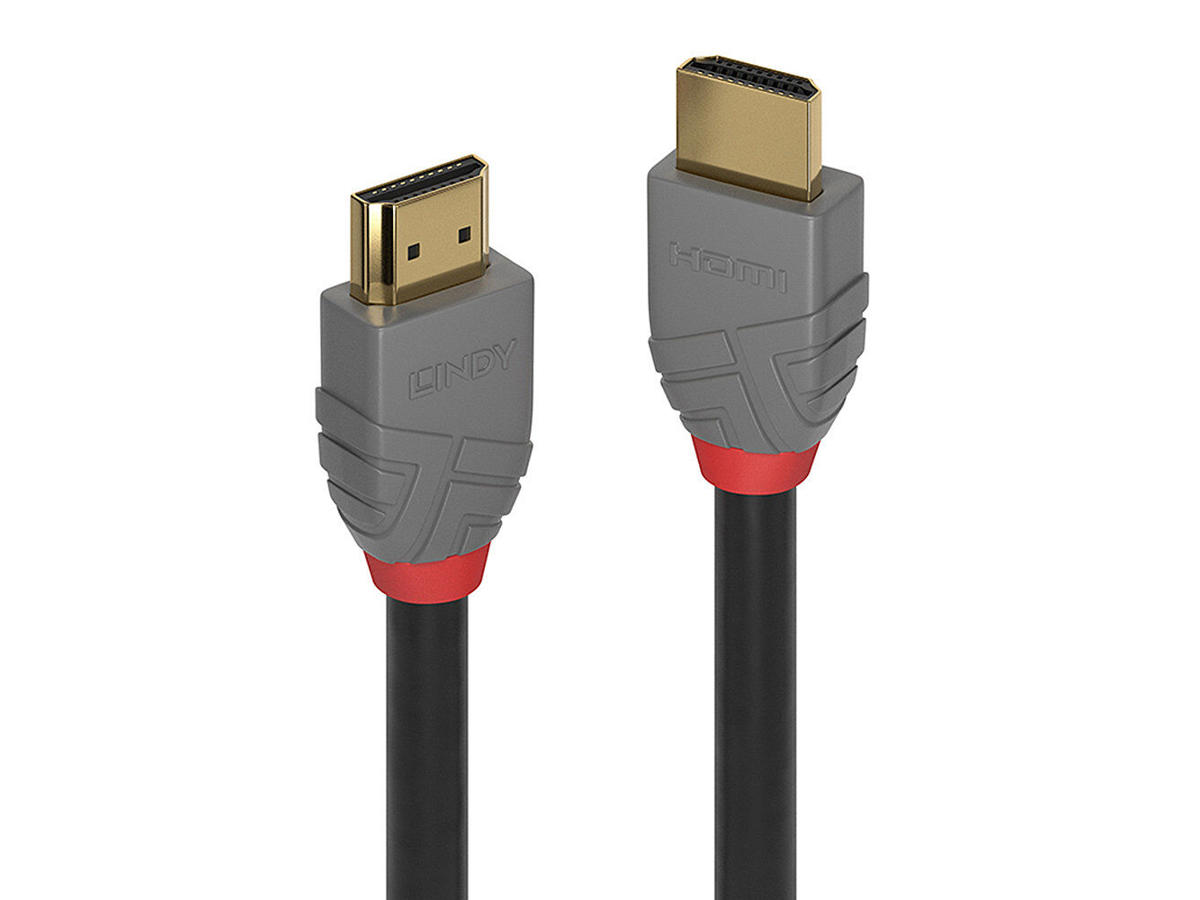

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.
Anthra Line HDMI cables are available in lengths from 0.3m to 20m. -
Funktioner Kabellængde 10 m Stik 1 HDMI Type A (Standard) Stik 2 HDMI Type A (Standard) Stik 1 køn Hanstik Stik 2 køn Hanstik Produktfarve Sort, Grå Stikforbindelse kontakter plettering Guld Stik 1 formfaktor Lige Stik 2 formfaktor Lige HDMI-version 2.0 3D Ja Understøttede grafikopløsninger 3840 x 2160, 4096 x 2160 Understøttede videotilstande 2160p Dolby-teknologier DTS-HD, Dolby TrueHD Dataoverførselshastighed 10,2 Gbit/sek. Maksimal opdateringshastighed 60 Hz AWG-ledningsstørrelse 24 Kontaktmateriale Fosforbronze Materiale til stikhus Polyvinylchlorid (PVC) Tilslutningsmateriale Guld Kabelmateriale Kobber Kabeltype Rundt kabel Kabel kappemateriale Polyvinylchlorid (PVC) Skjold materiale Aluminium Bøjeradius (min.) 9,8 cm Farveprøvetagning 4:2:0 Nominel dæmpning 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB Driftsbetingelser Driftstemperatur (T-T) -20 - 80 °C Opbevaringstemperatur (T-T) -25 - 85 °C Godkendelser Compliance-certifikater RoHS Certificering RoHS, REACH, UL Vægt & størrelser Kabeldiameter 9,8 mm Stik 1 dimensioner (BxDxH) 21,4 x 41,44 x 12,7 mm Stik 2 dimensioner (BxDxH) 21,4 x 41,44 x 12,7 mm Emballeringsdata Antal pr. pakke 1 stk Pakketype Polybag Logistik data Harmoniseret systemkode (HS) 84733080
