Varenummer: SDOCK4U313
Mere information
-

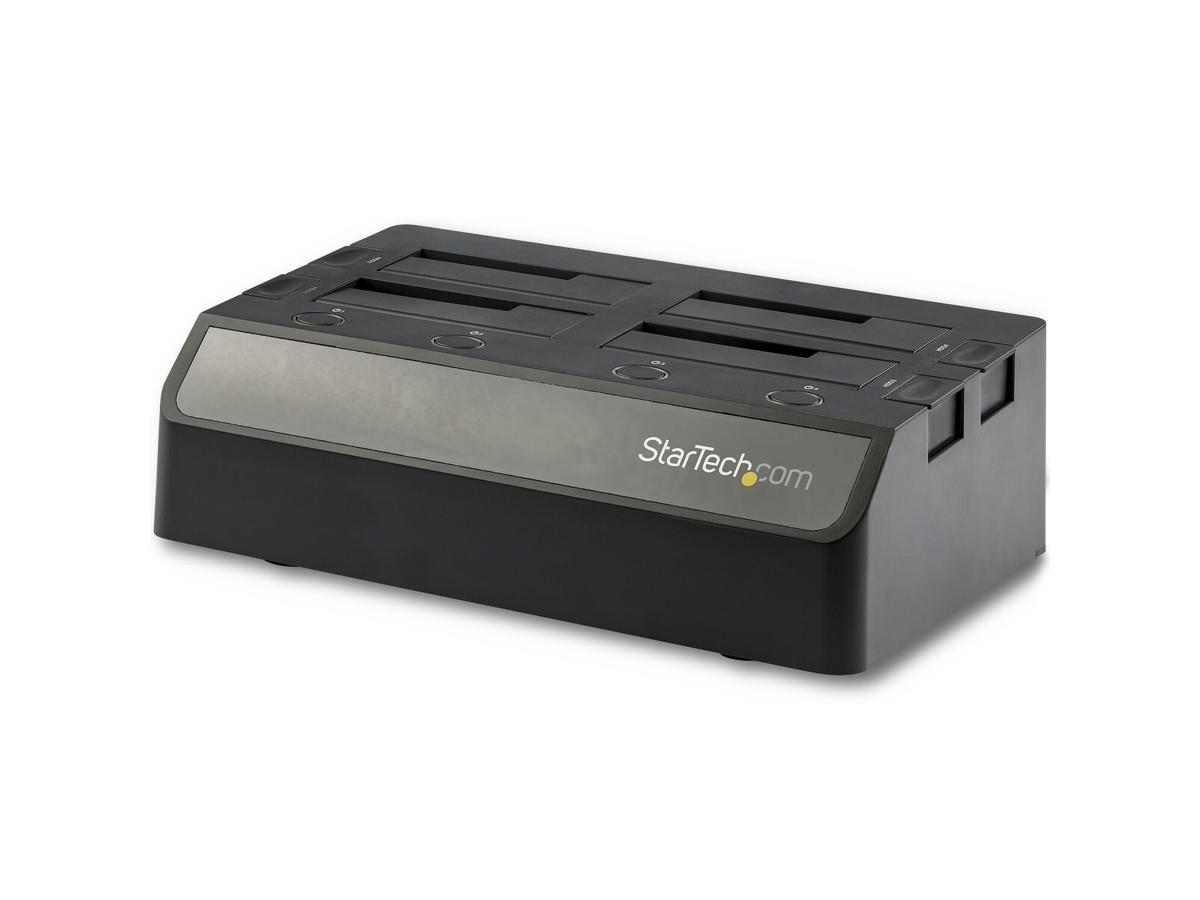

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 10Gbps, and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.
Save time accessing and managing your data
When you're managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.
The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.
Fast data transfers
With USB 3.2 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Convenient compatibility
The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.
The docking station also works with 2.5" and 3.5" IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:
IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter
M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter -
Diskdrev Opbevaringsmedietype HDD, SSD Grænseflade til lagerdisk SATA, Serial ATA II, Serial ATA III Understøttede lagerdisk størrelser 2.5,3.5" Antal understøttede lagerdiske 4 Maksimal lagerkapacitet 10 TB Porte & Grænseflader Værtsgrænseflade USB 3.2 Gen 2 (3.1 Gen 2) Type-C Antal USB 3.2 Gen 2 (3.1 Gen 2) porte 1 Funktioner Produktfarve Sort Materiale Plast Maksimal dataoverførselshastighed 10 Gbit/sek. Hot-swap Ja Plug and play Ja Understøtter S.M.A.R.T. Ja Understøttelse af TRIM Ja Antal forbindelsescyklusser 10000 LED-indikatorer Aktivitet, Strøm Understøtter UASP Ja Nedkøling Indbygget ventilator Ja Antal blæsere 2 blæser(e) Ventilator diameter 6 cm Lejetype Muffeleje Strømstyring Strømforbrug (standby) 78 W Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 2 A Udgangsspænding 12 V Udgangsstrøm 6,5 A Vægt & størrelser Bredde 171 mm Dybde 291 mm Højde 87 mm Vægt 1 kg Emballeringsdata Pakkebredde 170 mm Pakkedybde 340 mm Pakkehøjde 210 mm Pakkevægt 2,4 kg Emballage indhold AC-adapter inkluderet Ja Kabler inkluderet USB, USB Type-C Inkluderede strømstik typer ANZ, EU, JP, NA, UK Hurtig installationsvejledning Ja Driftsbetingelser Driftstemperatur (T-T) 5 - 35 °C Opbevaringstemperatur (T-T) -20 - 50 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Andre funktioner Støjniveau 19,04 dB Chipsæt VIA Labs - VL820, VIA Labs - VL715 Gennemsnitstid mellem fejl (MTBF) 30000 t Compliance-certifikater CE, RoHS Logistik data Harmoniseret systemkode (HS) 84733080 Hovedkassens bredde (udvendigt) 354 mm Hovedkassens længde (udvendigt) 356 mm Hovedkassen højde (udvendigt) 470 mm Produkter pr. hovedkasse (udvendigt) 4 stk
