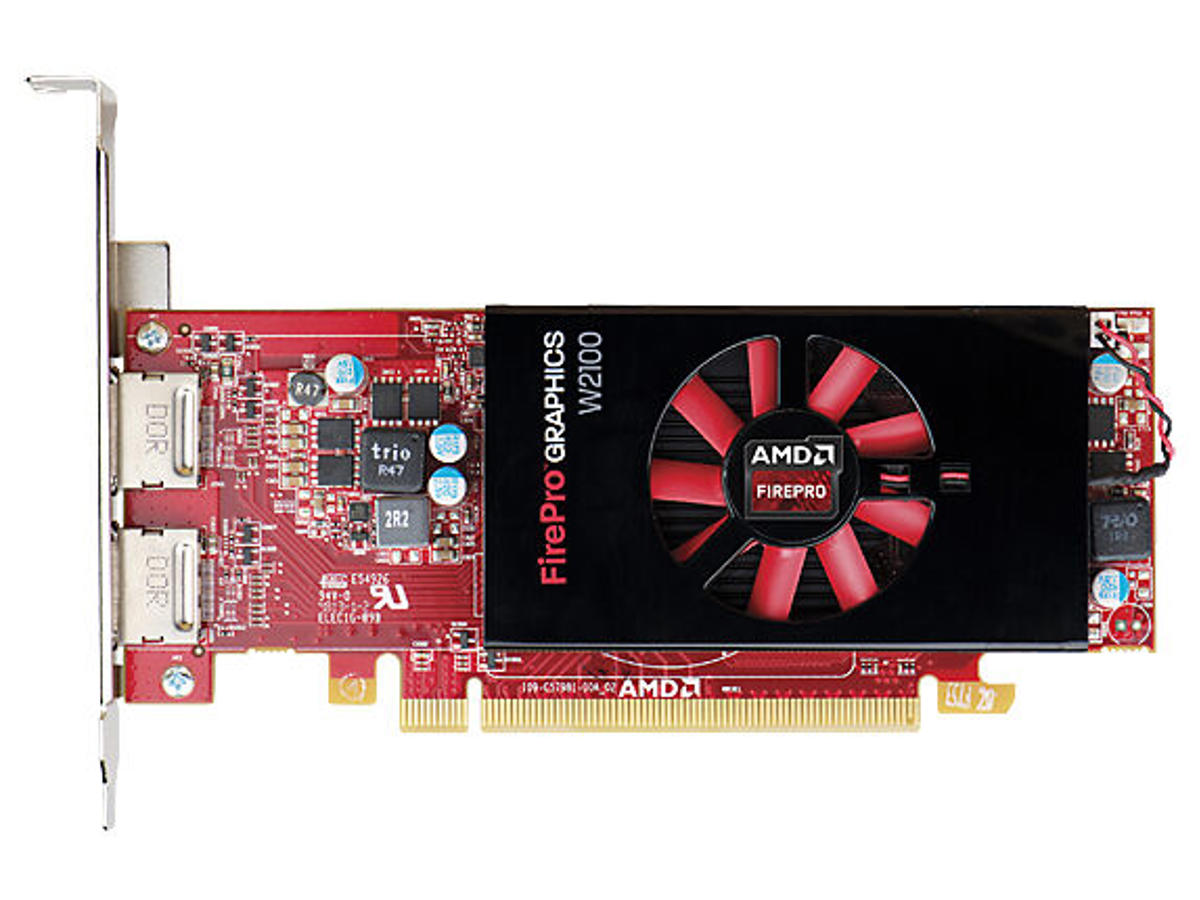

Power through your small-to-medium complexity product development and video projects with the latest professional-class GPU technology of the AMD FirePro™ W2100 low profile graphics board.
Features
Get support for your professional software with a GPU that’s optimized and certified for more than 100 different leading workstation ISV applications.
Realize dynamic GPU power management with AMD PowerTune, which gives you as much or as little power as you need for your applications, and AMD ZeroCore Power.
Drive dual displays with resolutions up to 4k1 with two DisplayPort 1.2a outputs.
The AMD FirePro W2100 is supported on the following HP Z workstations: Z230 CMT/SFF, Z440, Z640, Z840
| Processor | |
| Grafikprocessor familie | AMD |
| Grafikprocessor | FirePro W2100 |
| Maksimal opløsning | 4096 x 2160 pixel |
| Processorfrekvens | 630 MHz |
| Stream processorer | 320 |
| Maksimalt antal skærme pr. grafikkort | 2 |
| Maksimal flydende ydeevne (enkelt) | 403,2 Gflops |
| Hukommelse | |
| Diskret grafikadapterhukommelse | 2 GB |
| Hukommelsestype for grafikadapter | GDDR3 |
| Hukommelsesbus | 128 Bit |
| Hukommelsesbåndbredde (maks.) | 28,8 GB/sek. |
| Porte & Grænseflader | |
| Grænsefladetype | PCI Express 3.0 |
| Antal HDMI-porte | 0 |
| Antal DVI-D-porte | 0 |
| Antal DVI-I-porte | 0 |
| Antal DisplayPorts | 2 |
| Antal VGA-porte (D-sub) | 0 |
| DisplayPort-version | 1.2a |
| Præstation | |
| TV-tuner, integreret | Ingen |
| DirectX-version | 12.0 |
| Shader model version | 5.0 |
| OpenGL-version | 4.4 |
| DVI dobbelt link | Ja |
| PhysX | Ingen |
| OpenCL version | 1.2 |
| HDCP | Ja |
| Full HD | Ja |
| Design | |
| Kølingstype | Aktiv |
| Formfaktor | Half-Height/Half-Length (HH/HL) |
| Produktfarve | Sort, Rød |
| Certificering | FCC, CE, C-Tick, BSMI, KCC, UL, VCCI, WEEE |
| Strømstyring | |
| Strømforbrug (typisk) | 26 W |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Linux-operativsystemer | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | RoHS |
| Andre funktioner | |
| Kompatible produkter | HP Z230 CMT/SFF, Z440, Z640, Z840 |
