Enhance the performance capabilities of SWDM applications over an OM5 fiber network

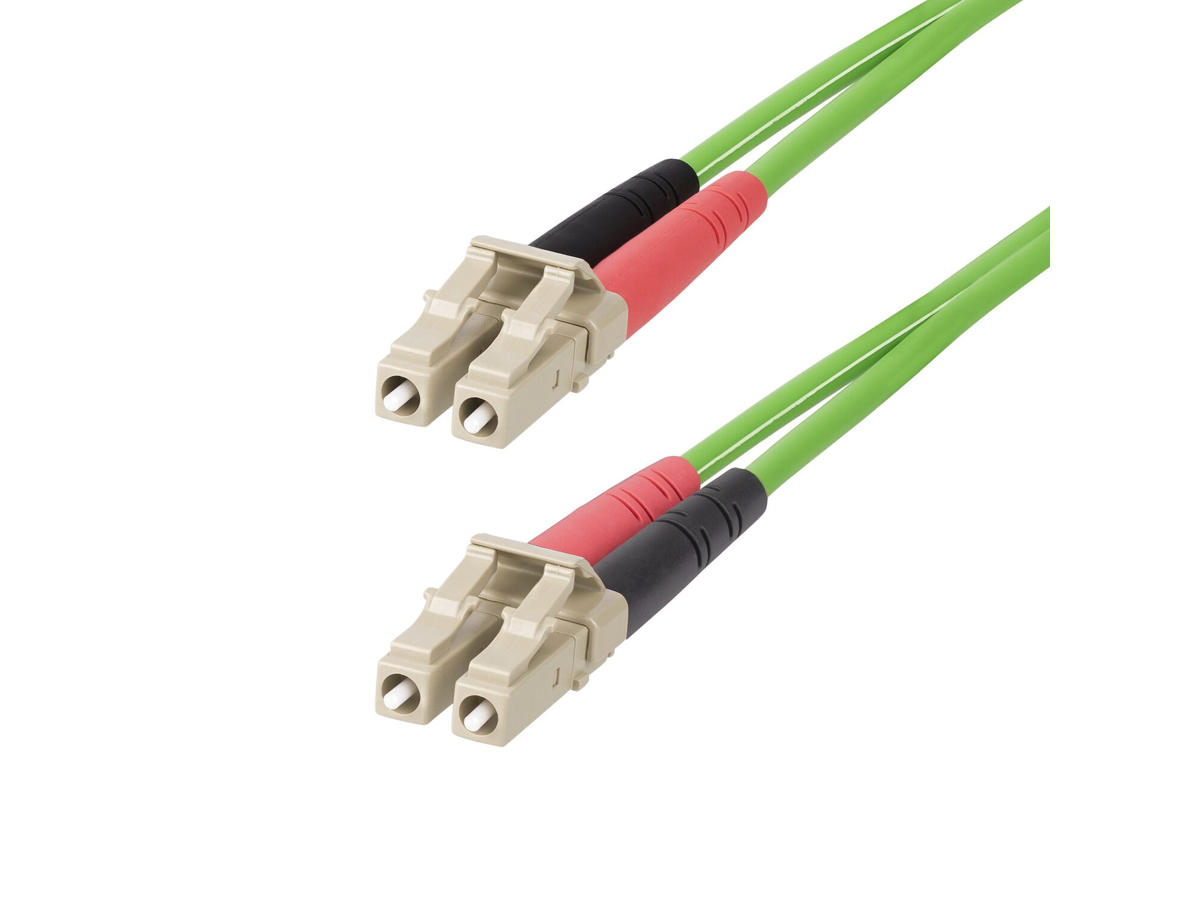

OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is ideal for 850-953 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM4 and OM3 10G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OM5 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage -
Funktioner Kabellængde 20 m Kabeltype LOMM Stik 1 LC Stik 2 LC Stik 1 køn Hanstik Stik 2 køn Hanstik Produktfarve Grøn Materiale for kapper Lav røg ingen halogen (LSZH) Fiberoptisk type OM5 Fuld duplex Ja Kernediameter 50 µm Beklædning diameter 125 µm Fibertilstandsstruktur Multitilstand Bølgelængder understøttet 953,1300,850 nm Dataoverførselshastighed 100 Gbit/sek. Returdæmpning 30 dB Godkendelser Compliance-certifikater RoHS, CE Driftsbetingelser Driftstemperatur (T-T) -20 - 60 °C Opbevaringstemperatur (T-T) -20 - 60 °C Vægt & størrelser Kabeldiameter 2,9 mm Bøjningsradius 6 cm Emballeringsdata Pakkebredde 330 mm Pakkedybde 255 mm Pakkehøjde 41 mm Pakkevægt 156 g Emballage indhold Antal pr. pakke 1 stk Logistik data Hovedkassens bredde (udvendigt) 410 mm Hovedkassens længde (udvendigt) 410 mm Hovedkassen højde (udvendigt) 450 mm Produkter pr. hovedkasse (udvendigt) 40 stk Bæredygtighed Overholdelse af bæredygtighed Ja
