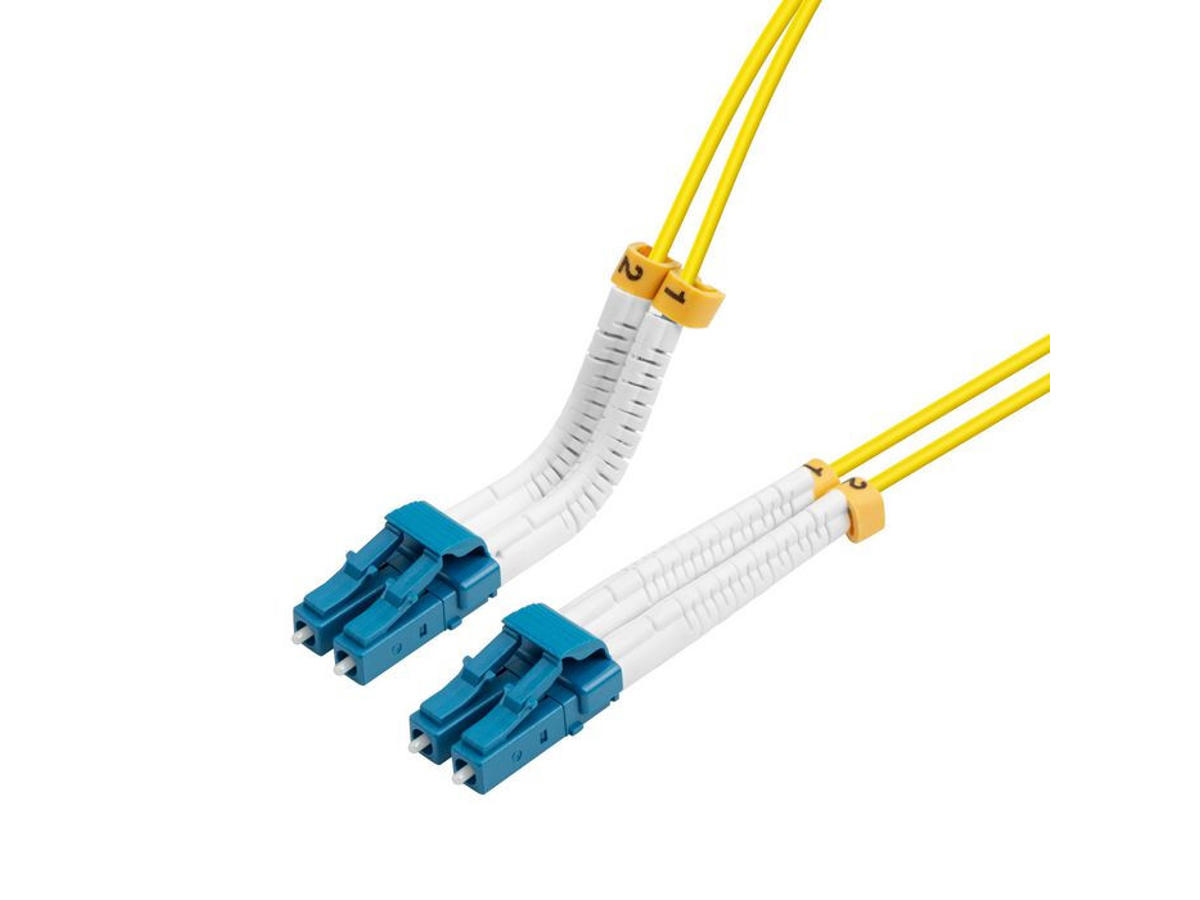

The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, can be effortlessly positioned by hand, while the internal wire guarantees it retains the chosen angle or direction.
The boot can be reformed at any moment or straightened for disconnecting connectors. This feature allows for optimal installation of the connector in specialized scenarios, including areas with tight constraints or in high-density settings.
| Funktioner | |
| Kabellængde | 1 m |
| Kabeltype | LC/LC |
| Stik 1 | LC |
| Stik 2 | LC |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Produktfarve | Gul |
| Materiale for kapper | Lav røg ingen halogen (LSZH) |
| Fiberoptisk type | OS2 |
| Kabelform | Rund |
| Forbindelsespoleringstype | UPC |
| Fuld duplex | Ja |
| Kernediameter | 9 µm |
| Beklædning diameter | 125 µm |
| Fibertilstandsstruktur | Enkeltilstand |
| Indsætningstab | 0,3 dB |
| Returdæmpning | 50 dB |
| Trykstyrke | 10 |
| Plug and play | Ja |
| Bæredygtighed | |
| Indeholder ikke | Halogen |
| Godkendelser | |
| Compliance-certifikater | REACH, RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -40 - 75 °C |
| Opbevaringstemperatur (T-T) | -40 - 85 °C |
| Vægt & størrelser | |
| Kabeldiameter | 2 mm |
| Vægt | 20 g |
| Bøjningsradius | 3 cm |
| Emballeringsdata | |
| Pakkebredde | 180 mm |
| Pakkedybde | 40 mm |
| Pakkehøjde | 200 mm |
| Pakkevægt | 20 g |
| Logistik data | |
| Garantiperiode | 25 År |
