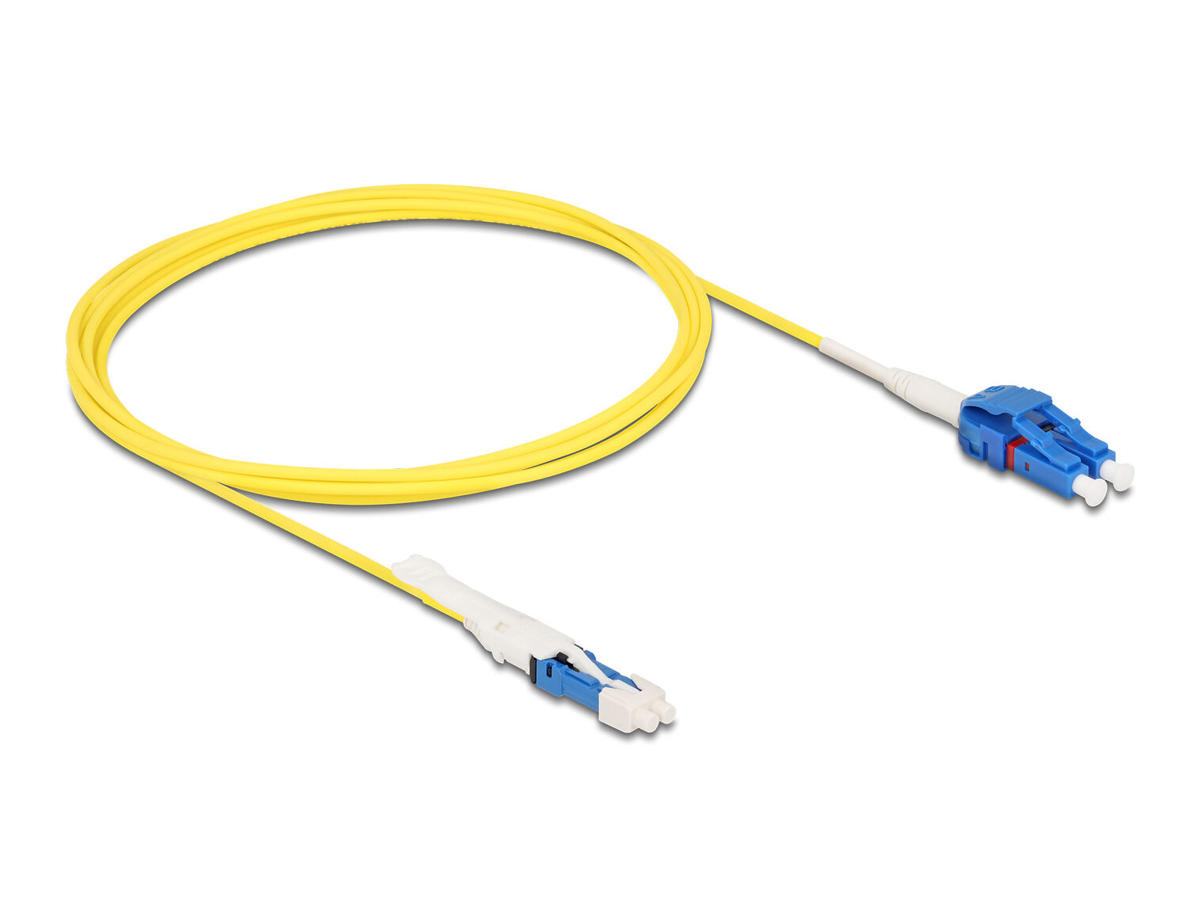

This optical cable by Delock can be used to connect transceivers with CS interface and for cabling the optical fiber network in data centres.
CS connector
The CS (Connector Senko) plug belongs to the Very Small Form Factor (VSFF) connectors and has a smaller form factor than comparable LC Duplex connectors. The plug is particularly suitable for applications with high packing density. The push-pull tab on the connector makes it easy to plug and unplug.
| Funktioner | |
| Kabellængde | 5 m |
| Stik 1 | CS |
| Stik 2 | LC |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Produktfarve | Blå, Gul |
| Materiale for kapper | Lav røg ingen halogen (LSZH) |
| Fiberoptisk type | OS2 |
| Kabelform | Rund |
| Fuld duplex | Ja |
| Kernediameter | 9 µm |
| Beklædning diameter | 125 µm |
| Fibertilstandsstruktur | Enkeltilstand |
| Indsætningstab | 0,2 dB |
| Returdæmpning | 55 dB |
| Tilslutningsmateriale | Keramisk |
| Polaritet | A/B |
| Plug and play | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -20 - 70 °C |
| Vægt & størrelser | |
| Kabeldiameter | 2 mm |
| Emballeringsdata | |
| Pakketype | Polybag |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Logistik data | |
| Oprindelsesland | Kina |
