Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+

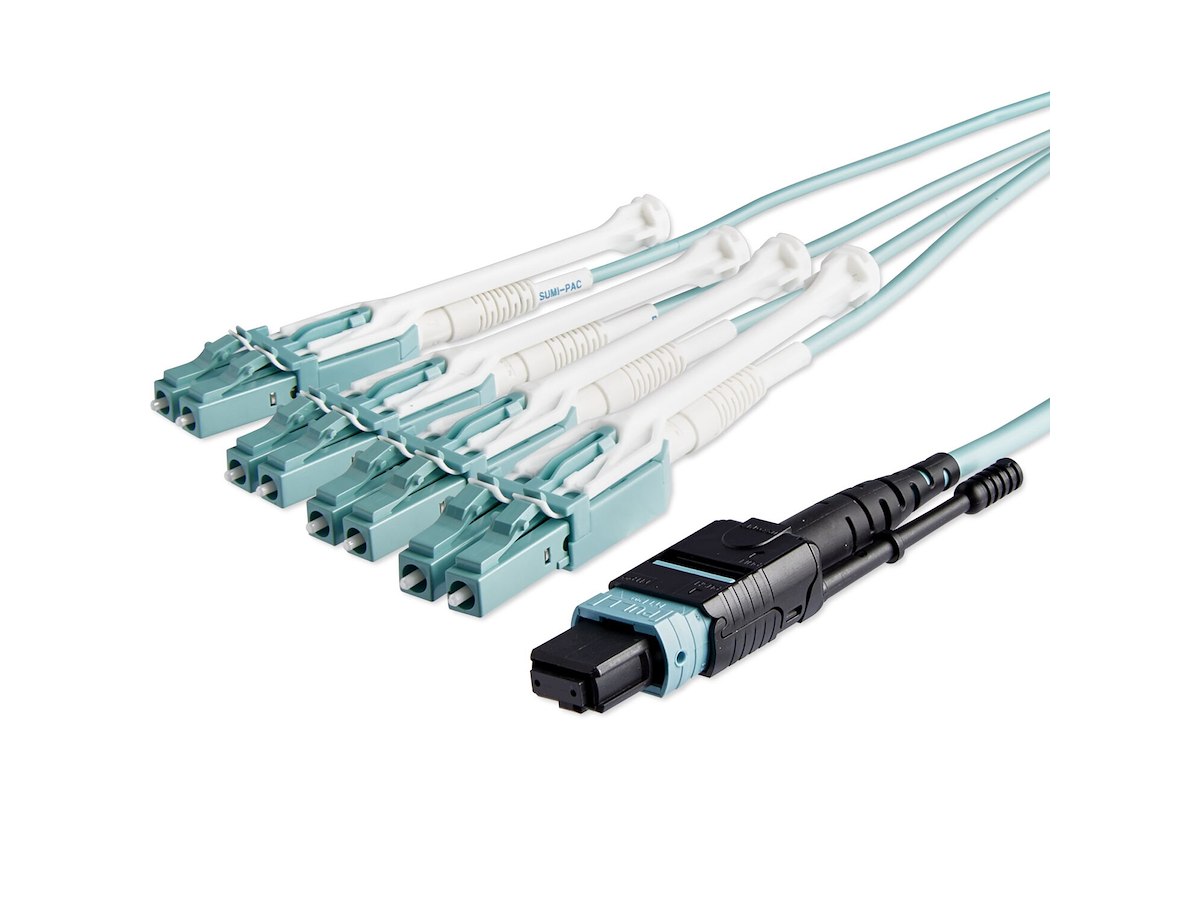

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
| Funktioner | |
| Kabellængde | 10 m |
| Stik 1 | MPO/MTP |
| Stik 2 | 8x LC |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Produktfarve | Turkisfarve |
| Fiberoptisk type | OM3 |
| Kernediameter | 50 µm |
| Beklædning diameter | 125 µm |
| Fibertilstandsstruktur | Multitilstand |
| Dataoverførselshastighed | 40 Gbit/sek. |
| Godkendelser | |
| Compliance-certifikater | RoHS |
| Vægt & størrelser | |
| Vægt | 991,4 g |
| Emballeringsdata | |
| Pakkebredde | 200 mm |
| Pakkedybde | 220 mm |
| Pakkehøjde | 10 mm |
| Pakkevægt | 114 g |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 230 mm |
| Harmoniseret systemkode (HS) | 85447000 |
| Hovedkassens længde (udvendigt) | 385 mm |
| Hovedkassen højde (udvendigt) | 190 mm |
| Produkter pr. hovedkasse (udvendigt) | 20 stk |
