Connects high-output devices with C19/C20 power connectors, including routers and blade servers.
Power Cord Connects High-Output Data Center Equipment to Reliable AC Power

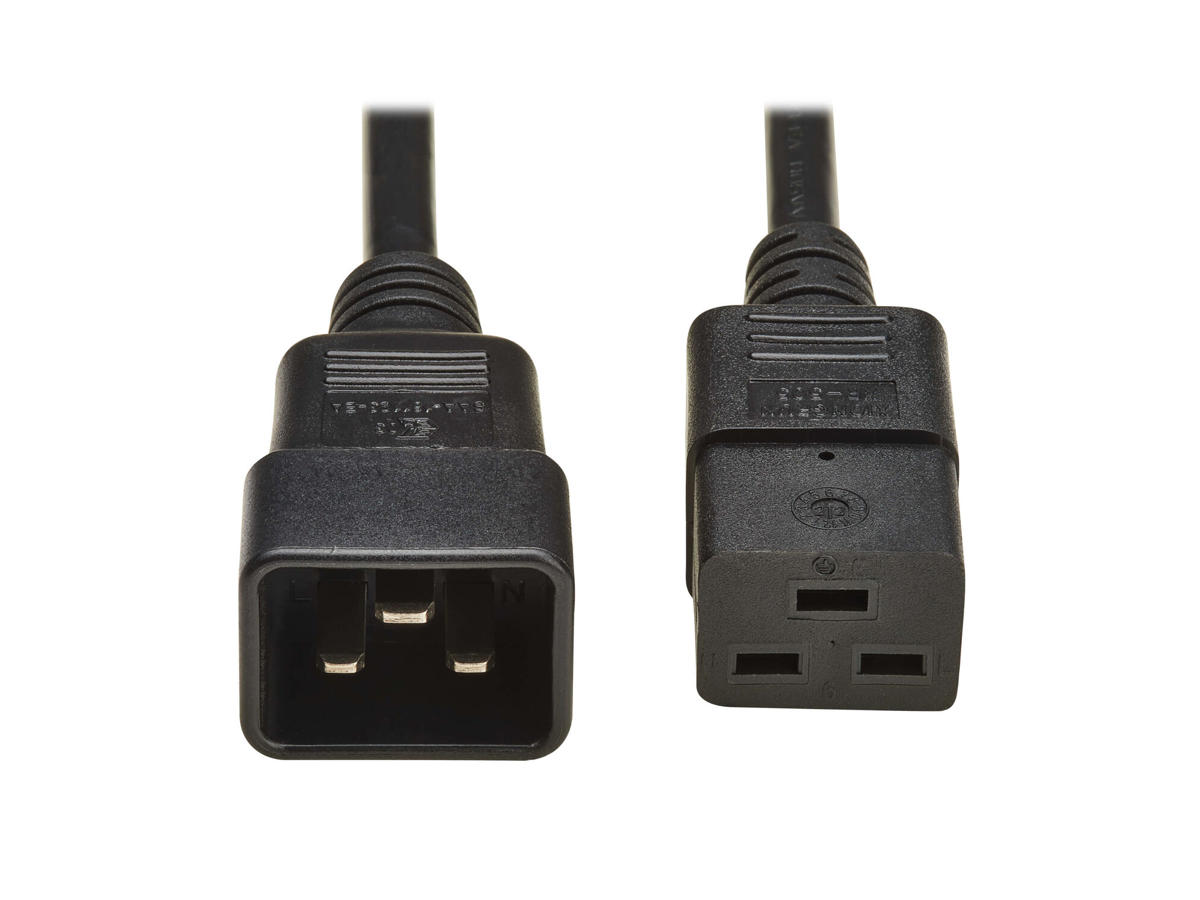

This VDE-compliant power cable connects a router, blade server or other high-output network device with a C20 power inlet to a PDU, UPS system or surge protector with C19 outlets. It can also extend an existing power connection up to two meters (6.6 feet). The P036-02M-EU features an IEC-320-C20 end for connecting to an AC power source or cord and an IEC-320-C19 end for connecting to a blade server chassis or other high-output device.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
| Funktioner | |
| Produktfarve | Sort |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hunstik |
| Kabellængde | 2 m |
| Stik 1 | IEC C20 |
| Stik 2 | IEC C19 |
| Stik 1 standard | CEE 7/4 |
| Stik 1 formfaktor | Lige |
| Stik 2 formfaktor | Lige |
| Materiale for kapper | Polyvinylchlorid (PVC) |
| AWG-ledningsstørrelse | 16 |
| Kabeltype | H05VV-F |
| Antal ledere | 3 |
| Strømstyring | |
| Indgangsspænding | 250 V |
| Indgangsstrøm | 16 A |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -15 - 70 °C |
| Opbevaringstemperatur (T-T) | -15 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
| Relativ luftfugtighed ved opbevaring (H-H) | 20 - 80% |
| Godkendelser | |
| Certificering | CE (Europe); REACH; RoHS; UKCA |
| Vægt & størrelser | |
| Diameter | 8,2 mm |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Pakkebredde | 203 mm |
| Pakkedybde | 13 mm |
| Pakkehøjde | 254 mm |
| Pakkevægt | 181 g |
