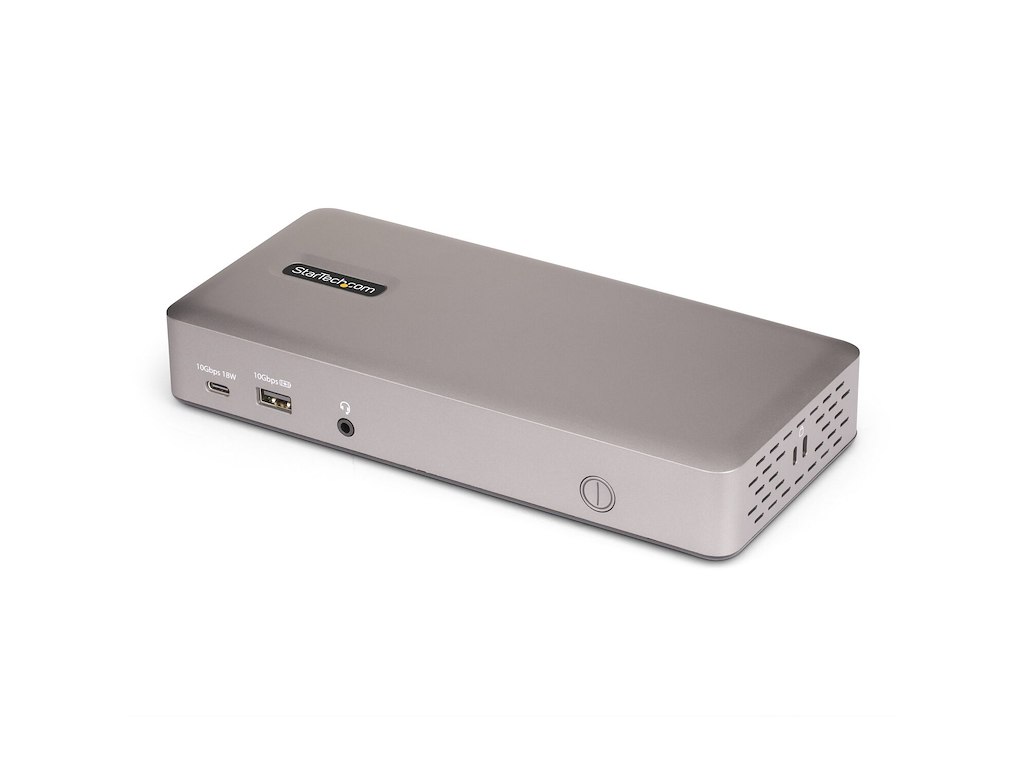

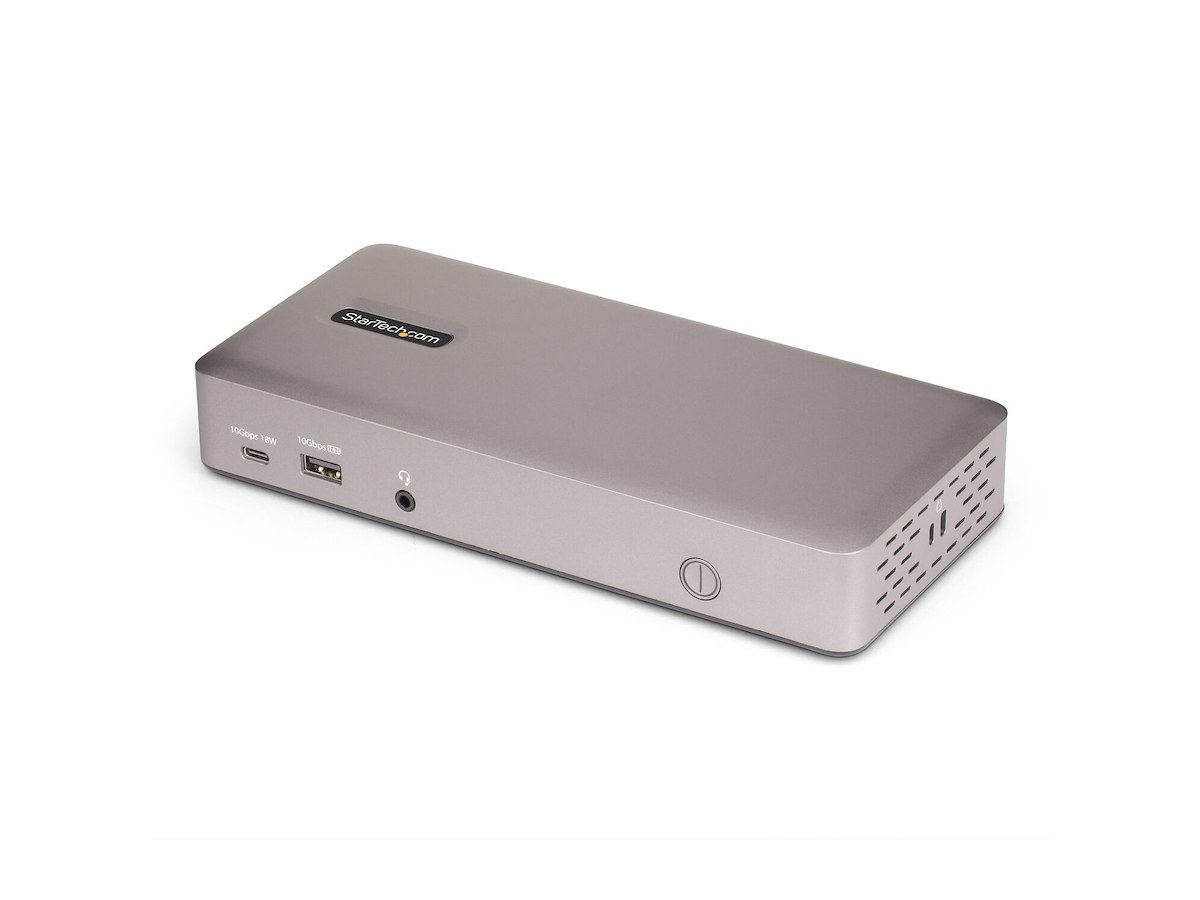

Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.
High-Performance Display and Networking
Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.
Comprehensive Connectivity and Power
The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.
Driverless Deployment with Secure Mounting Options
Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | USB4 |
| Antal USB 2.0-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 0 |
| Antal HDMI-porte | 3 |
| Udgange til hovedtelefoner | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
| USB strømforsyning | Ja |
| USB strømforsyning revision | 3.0 |
| Antal DisplayPorts | 3 |
| Kombineret hovedtelefon/mikrofon-port | Ja |
| Tilslutning af hovedtelefoner | 3,5 mm |
| DC-in-stik | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN klar | Ja |
| Fuld duplex | Ja |
| Præstation | |
| Produktfarve | Grå |
| Indbygget kortlæser | Ingen |
| Dataoverførselshastighed | 40 Gbit/sek. |
| HD-type | 4K Ultra HD |
| Maksimal digital opløsning | 3840 x 2160 pixel |
| Antal understøttede skærme | 3 |
| Maksimal opdateringshastighed | 144 Hz |
| Slot til kabellås | Ja |
| Kabellåseslids type | Kensington, Nano |
| Understøtter UASP | Ja |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Indgangsstrøm | 2.5 A |
| Udgangsspænding | 20 V |
| Udgangsstrøm | 9 A |
| Strømforbrug (maks.) | 180 W |
| Kompatible strømplug typer | US |
| Software | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Andre understøttede operativsystemer | ChromeOS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Vægt & størrelser | |
| Bredde | 95 mm |
| Dybde | 210 mm |
| Højde | 34 mm |
| Vægt | 1,06 kg |
| Emballeringsdata | |
| Pakkebredde | 145 mm |
| Pakkedybde | 235 mm |
| Pakkehøjde | 99 mm |
| Pakkevægt | 1,4 kg |
| Emballage indhold | |
| Kabler inkluderet | USB Type-C |
| AC-adapter inkluderet | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE |
| Andre funktioner | |
| Chipsæt | VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469 |
