Varenummer: 206UE-TB5USB4DOCK
Mere information
-

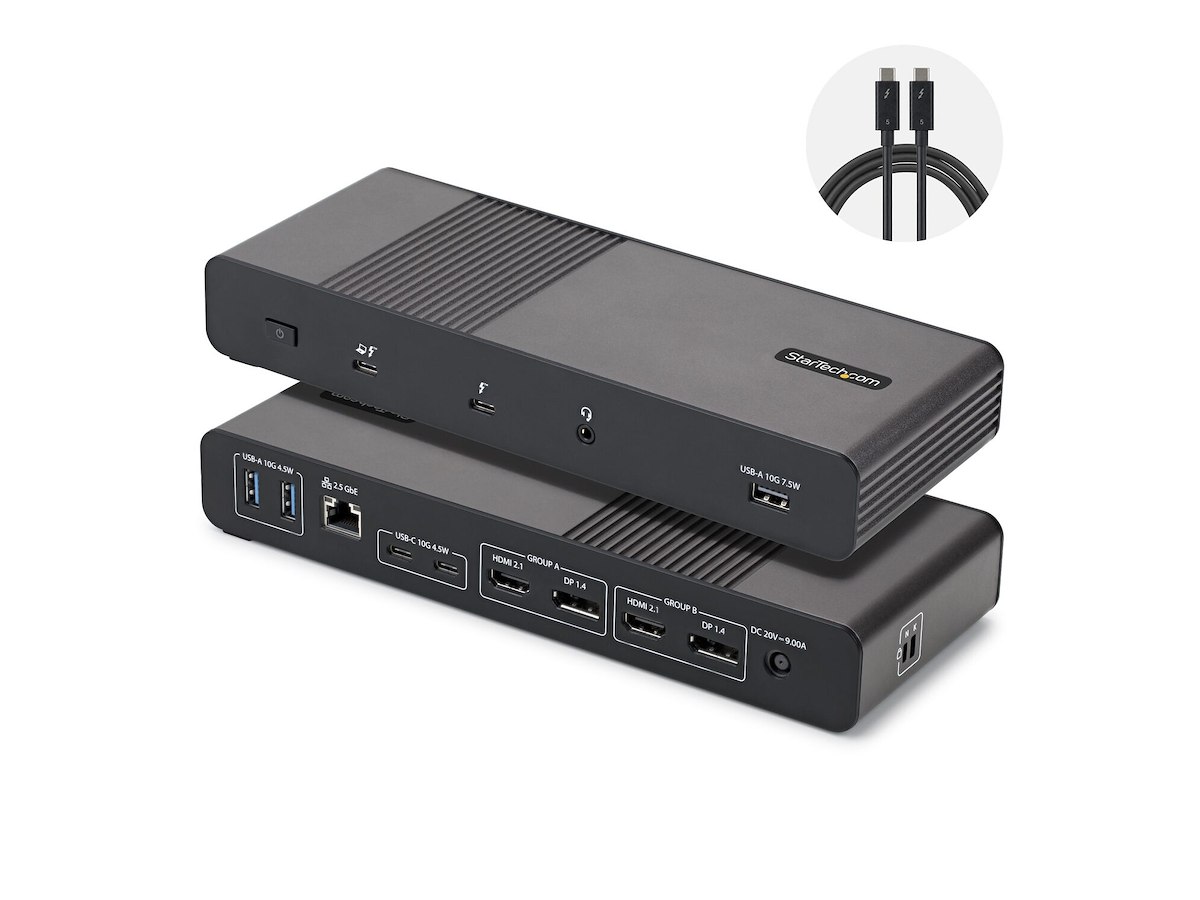

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation
Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.
Advanced Display and Charging Capabilities
Connect up to four extended 4K 60Hz displays on Windows using HDMI and DisplayPort outputs. On Mac, support dual 6K on MacBook Air and entry MacBook Pro, up to Triple 4K 120Hz on MacBook Pro with M5 Pro, or Quad 4K displays when daisy chaining 2 Thunderbolt monitors with M5 Max. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro. A dedicated 45W Thunderbolt 5 port provides data connectivity and charging for phones or tablets without drawing power from the host computer.
Networking and Compatibility
Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.
Secure and High-Functioning Workspace
Dual security slots (K-Slot and Nano) let you physically secure the dock, helping prevent theft in shared environments or high-traffic workspaces. Connect high-performance peripherals through the downstream Thunderbolt port with up to 80Gbps/120Gbps bandwidth, while delivering up to 45W Power Delivery for fast device charging. Use the 3.5mm audio jack to connect headsets or speakers for seamless conferencing or media playback.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.
Download the StarTech.com Connectivity Tools to optimize your device setup . -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade Thunderbolt 5 Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 0 Antal HDMI-porte 2 Udgange til hovedtelefoner 1 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 3 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 2 USB strømforsyning Ja USB strømforsyning op til 140 W HDMI-version 2.1 Antal DisplayPorts 2 DisplayPort-version 1.4 Antal Thunderbolt 5-porte 1 Kombineret hovedtelefon/mikrofon-port Ja Tilslutning af hovedtelefoner 3,5 mm DC-in-stik Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000,2500 Mbit/s Wake-on-LAN klar Ja Fuld duplex Ja Præstation Produktfarve Sort, Grå Indbygget kortlæser Ingen Dataoverførselshastighed 80 Gbit/sek. HD-type 4K DCI Maksimal digital opløsning 3840 x 2160 pixel Antal understøttede skærme 4 Maksimal opdateringshastighed 240 Hz Slot til kabellås Ja Kabellåseslids type Nano, Kensington Tænd-/slukkontakt Ja LED-indikatorer LAN, Strøm, Link, Aktivitet Understøtter UASP Ja Husmateriale Plast Strømstyring Udgangsspænding 20 V Udgangsstrøm 9 A Strømforbrug (maks.) 180 W Kompatible strømplug typer UK, EU Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 92 mm Dybde 243 mm Højde 353 mm Vægt 730 g Emballeringsdata Pakkebredde 262 mm Pakkedybde 169 mm Pakkehøjde 90 mm Pakkevægt 1,1 kg Emballage indhold Kabler inkluderet Thunderbolt AC-adapter inkluderet Ja Tekniske detaljer Compliance-certifikater RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 6 stk Hovedkassens bredde (udvendigt) 395 mm Hovedkassens længde (udvendigt) 315 mm Hovedkassen højde (udvendigt) 300 mm Andre funktioner Chipsæt Intel - JHL9480 (Barlow Ridge), Synaptics - VMM6210, Synaptics - VMM6210, Infineon - CYPM1322, VIA Labs - VL822, VIA Labs - VL822, VIA Labs - VP226, VIA Labs - VP226, Realtek - RTL8156B, Fresco Logic - FL8501, Realtek - ALC4032
