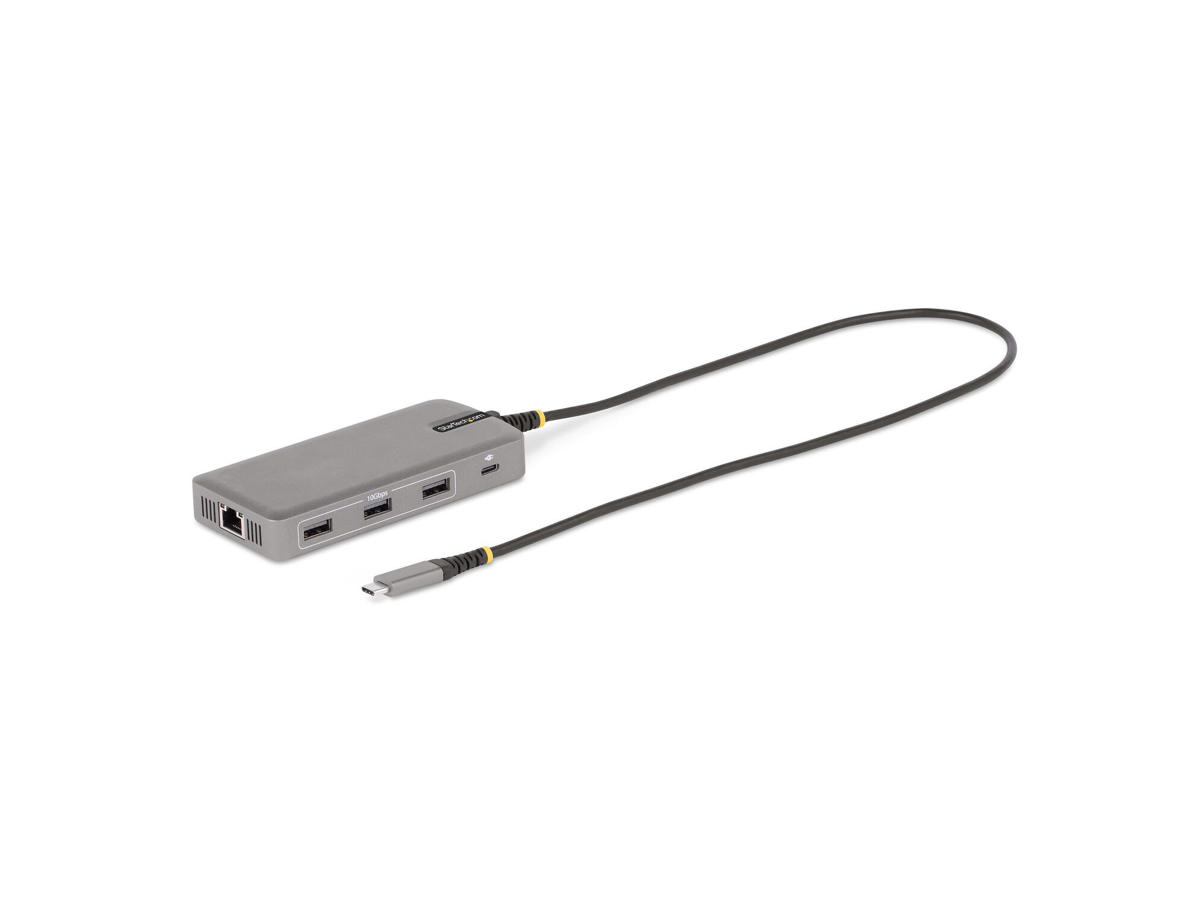

117B-USBC-MULTIPORT dockingstation Ledningsført USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grå
Varenummer: 117B-USBC-MULTIPORT
DKK 2.300,00 / Stk
DKK 1.840,00 ekskl. moms
  • 117B-USBC-MULTIPORT. Forbindelsesteknologi: Ledningsført, Værtsgrænseflade: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB strømforsyning op til: 100 W. Ethernet LAN-datahastigheder: 10,100,1000 Mbit/s, Netværksstandarder: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Produktfarve: Grå, Dataoverførselshastighed: 10 Gbit/sek., HD-type: 4K Ultra HD. Strømkilde type: USB, Strømforbrug (typisk): 15 W, USB-kabellængde: 0,6 m. Understøttede Windows-operativsystemer: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Andre understøttede operativsystemer: ChromeOS

Mere information

Bedst sælgende i Dockingstationer
  • This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

    High-Performance Triple Video via MST

    The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 2x 4K (3840 x 2160p) at 30Hz and 1x 4K (3840 x 2160p) at 60Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.

    Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.

    Connect USB Peripherals

    The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).

    Extra Long Cable & Durable Build

    The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.

    100W Power Delivery

    Connect a USB-C power adapter to the pass-though port in order to charge the host laptop.

    Reliable Network Connectivity

    The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.

    Enhance Productivity and Device Management with the Connectivity Tools Application

    Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

    Advanced Windows Layout Utility: To setup and save custom windows layouts.

    MAC Address Pass-Through Utility: To improve network security.

    USB Event Monitoring Utility: To track and log connected USB devices.

    Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

    For more information and to download the Connectivity Tools application, please visit:

  • Porte & Grænseflader
    Forbindelsesteknologi Ledningsført
    Værtsgrænseflade USB 3.2 Gen 2 (3.1 Gen 2) Type-C
    Antal HDMI-porte 2
    Mikrofonindgang Ingen
    Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 1
    Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 3
    USB strømforsyning Ja
    USB strømforsyning revision 3.0
    USB strømforsyning op til 100 W
    HDMI-version 2.0b
    Antal DisplayPorts 2
    DisplayPort-version 1.4
    Ethernet LAN Ja
    Ethernet LAN-porte (RJ-45) 1
    Ethernet LAN-datahastigheder 10,100,1000 Mbit/s
    Wake-on-LAN klar Ja
    Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
    Fuld duplex Ja
    Produktfarve Grå
    Indbygget kortlæser Ingen
    Dataoverførselshastighed 10 Gbit/sek.
    HD-type 4K Ultra HD
    Maksimal digital opløsning 3840 x 2160 pixel
    Antal understøttede skærme 3
    Maksimal opdateringshastighed 60 Hz
    LED-indikatorer Ja
    Understøtter UASP Ja
    Husmateriale Plast
    Strømkilde type USB
    Strømforbrug (typisk) 15 W
    USB-kabellængde 0,6 m
    Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
    Andre understøttede operativsystemer ChromeOS
    Driftstemperatur (T-T) 0 - 70 °C
    Opbevaringstemperatur (T-T) -10 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 90%
    Overholdelse af bæredygtighed Ja
    Bæredygtighedscertifikater CE, Federal Communications Commission (FCC), RoHS
    Vægt & størrelser
    Bredde 56 mm
    Dybde 122 mm
    Højde 18 mm
    Vægt 113 g
    Pakkebredde 124 mm
    Pakkedybde 241 mm
    Pakkehøjde 32 mm
    Pakkevægt 210 g
    Emballage indhold
    Hurtig start guide Ja
    Logistik data
    Produkter pr. hovedkasse (udvendigt) 24 stk
    Hovedkassens bredde (udvendigt) 290 mm
    Hovedkassens længde (udvendigt) 530 mm
    Hovedkassen højde (udvendigt) 235 mm
    Andre funktioner
    Chipsæt Parade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153
