Varenummer: TB3DOCK2DPPU
Mere information
-

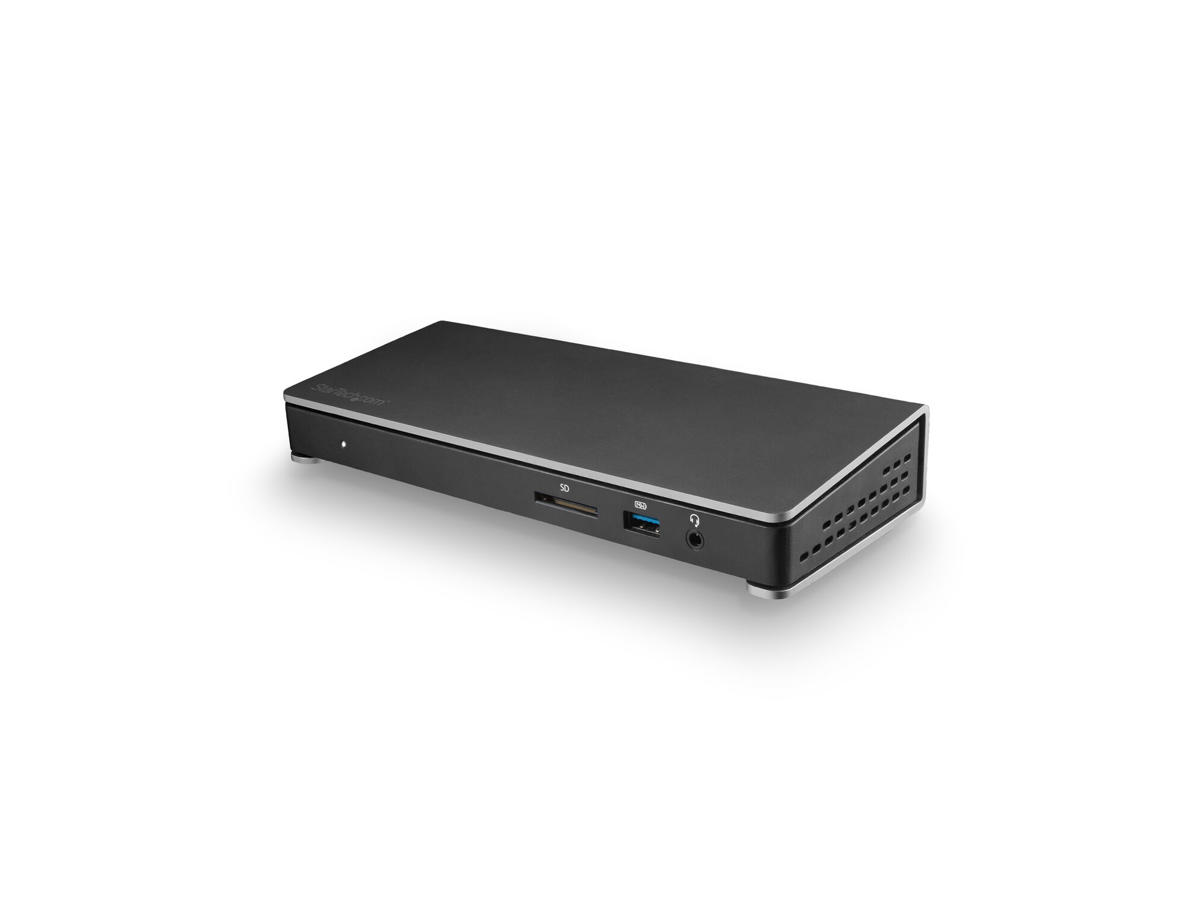

Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.
Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.
Connect your laptop to:
• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
• 1 x 5K monitor via the DP and TB3 USB-C ports
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.
Plenty of Ports Including SD Card Reader
The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 5 Antal HDMI-porte 0 Udgange til hovedtelefoner 1 USB strømforsyning Ja USB strømforsyning op til 85 W Antal DisplayPorts 1 Antal Thunderbolt 3-porte 2 Kombineret hovedtelefon/mikrofon-port Ja Tilslutning af hovedtelefoner 3,5 mm Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Auto MDI/MDI-X Ja Fuld duplex Ja Præstation Produktfarve Sort Indbygget kortlæser Ja Kompatible hukommelseskort MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC Dataoverførselshastighed 40 Gbit/sek. Maksimal digital opløsning 5120 x 2880 pixel Understøtter UASP Ja Husmateriale Aluminium Certificering CE, FCC, REACH Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 2.5 A Udgangsspænding 20 V Udgangsstrøm 9 A Strømforbrug (standby) 180 W Strømstiktype Type N Kompatible strømplug typer EU, UK Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac kompabilitet Ja Understøttede Mac-operativsystemer Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Vægt & størrelser Bredde 87 mm Dybde 222 mm Højde 34 mm Vægt 489 g Emballeringsdata Pakkebredde 145 mm Pakkedybde 295 mm Pakkehøjde 90 mm Pakkevægt 1,5 kg Emballage indhold Kabler inkluderet Vekselstrøm, Thunderbolt, USB Type-C AC-adapter inkluderet Ja Brugervejledning Ja Logistik data Produkter pr. hovedkasse (udvendigt) 10 stk Hovedkassens bredde (udvendigt) 310 mm Hovedkassens længde (udvendigt) 480 mm Hovedkassen højde (udvendigt) 314 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Chipsæt Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226
