Varenummer: DK30ADD
Mere information
-

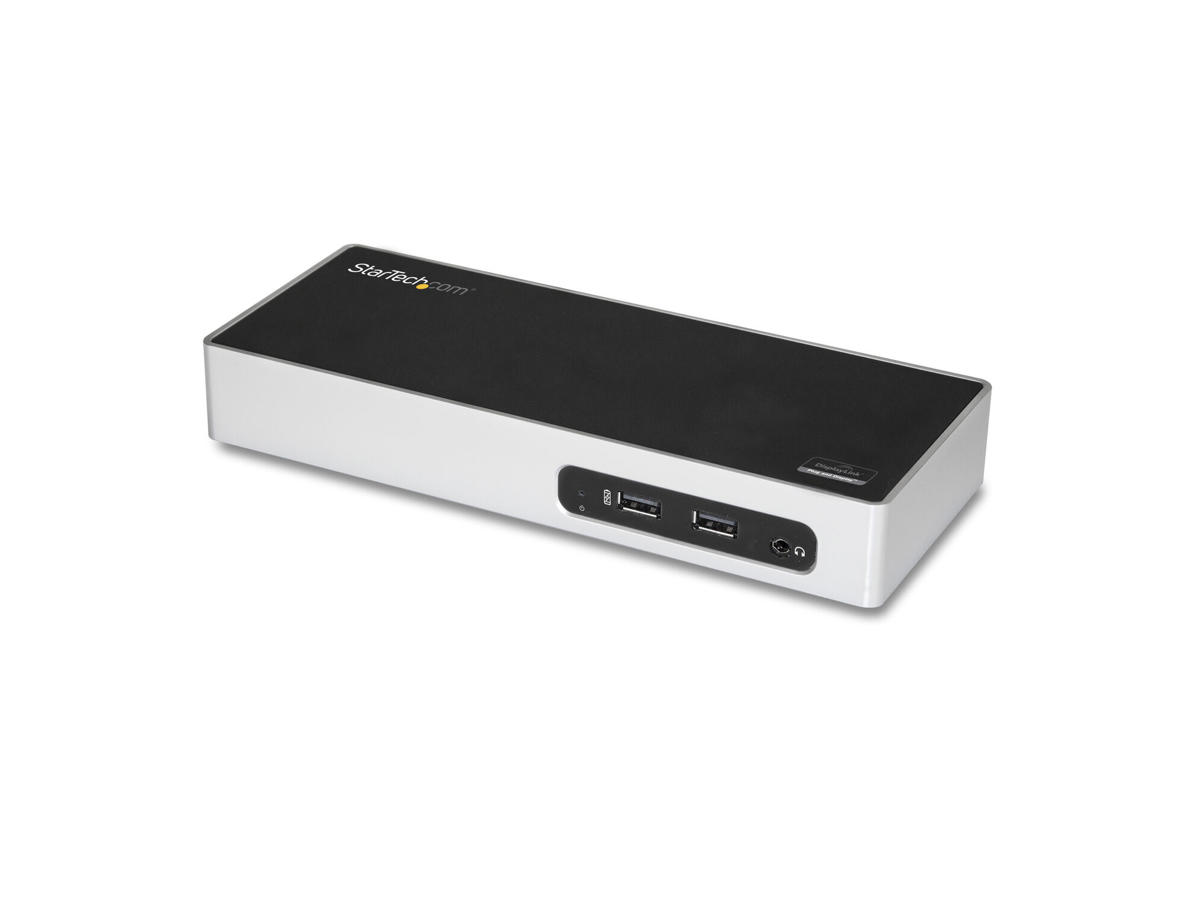

Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need
Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-B Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 6 Antal HDMI-porte 1 Udgange til hovedtelefoner 1 Antal DVI-I-porte 1 Kombineret hovedtelefon/mikrofon-port Ja Tilslutning af hovedtelefoner 3,5 mm DC-in-stik Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Wake-on-LAN klar Ja Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Ja Fuld duplex Ja Præstation Produktfarve Sort, Sølv Indbygget kortlæser Ingen Dataoverførselshastighed 5 Gbit/sek. Maksimal digital opløsning 2048 x 1152 pixel Antal understøttede skærme 2 Tænd-/slukkontakt Ja LED-indikatorer Strøm Understøtter UASP Ja Husmateriale Plast Mærke kompatibilitet Alle mærker Certificering CE, FCC, DisplayLink, REACH Strømstyring Strømkilde type Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 1 A Udgangsspænding 20 V Udgangsstrøm 2 A Strømforbrug (typisk) 40 W Strømstiktype Type N Kompatible strømplug typer AU, EU, JP, UK, US Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Understøttede Mac-operativsystemer Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Vægt & størrelser Bredde 86,2 mm Dybde 216 mm Højde 31 mm Vægt 291 g Emballeringsdata Pakkebredde 140 mm Pakkedybde 307 mm Pakkehøjde 60 mm Pakkevægt 800 g Emballage indhold Kabler inkluderet USB AC-adapter inkluderet Ja Hurtig start guide Ja Tekniske detaljer Compliance-certifikater RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 10 stk Hovedkassens bredde (udvendigt) 315 mm Hovedkassens længde (udvendigt) 325 mm Hovedkassen højde (udvendigt) 295 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Kabellængde 1 m Chipsæt DisplayLink - DL-3900, VIA/VLI - VL813
