Laptop Docking Station | Mac, Windows® & Chrome OS™ | 65W Power Delivery | DisplayPort (4K 30Hz) or VGA (1080p 60Hz)

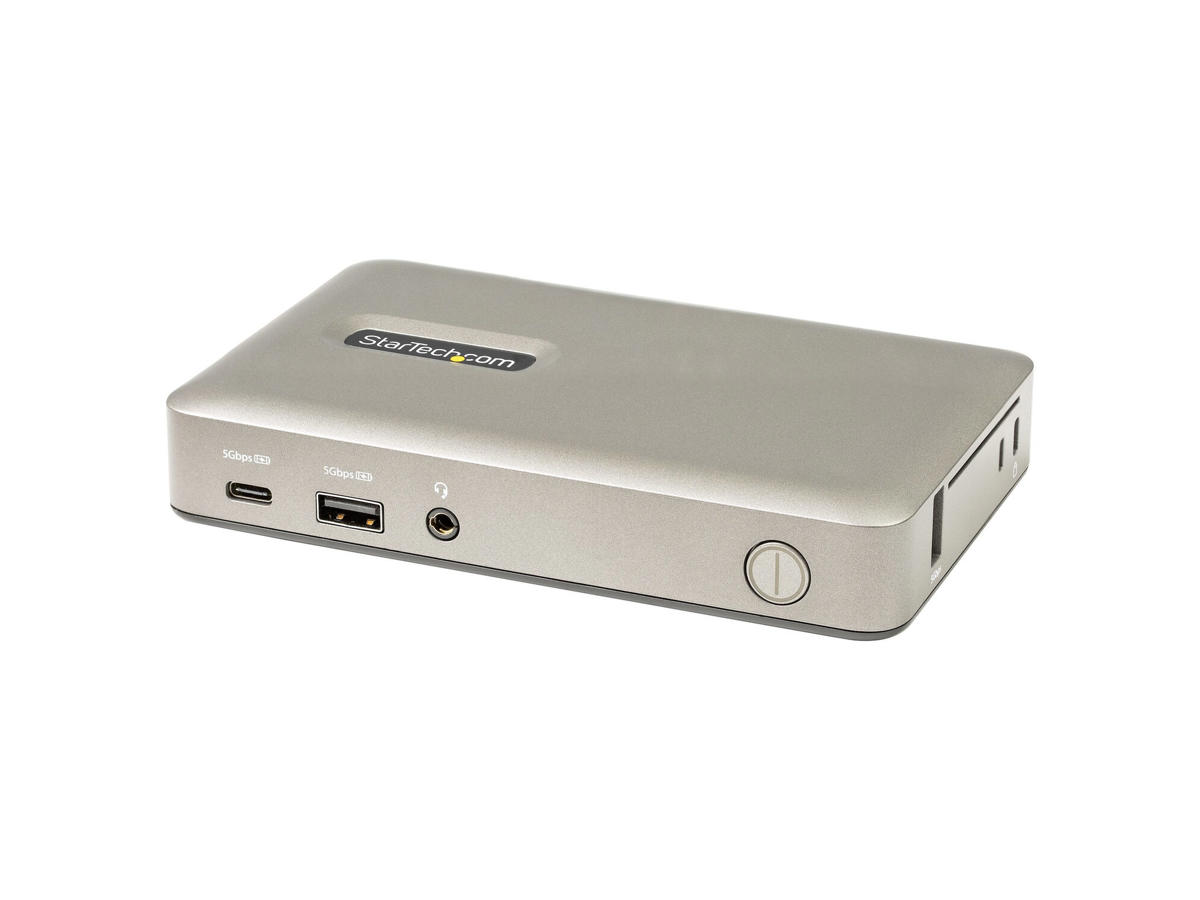

This USB-C docking station lets you use a single USB Type-C port on your laptop or tablet to add essential connectivity while charging your device via 65W USB Power Delivery 3.0. The dock enables you to connect your device to a single monitor of your choice between DisplayPort (4K 30Hz) or VGA (1080p 60Hz) video output. For peripheral connectivity the dock features three USB 3.1 Gen 1 (5Gbps) Type-A ports including a BC 1.2 port to power and charge your USB devices, a USB 3.1 Gen (5Gbps) Type-C port, a 3.5mm headset audio port, and Gigabit Ethernet.
Versatile Display Connectivity
The docking station features single video output with DisplayPort or VGA connectivity so you connect to different monitor depending upon your workstation -- ideal for home office IT deployment, where different monitors may be used by different users. The DisplayPort connection offers resolutions up to 4096x2160 (4K) 30Hz, while the VGA connection offers resolutions up to 1920x1200/1080p 60Hz.
Essential Port Connectivity
The docking station utilizes the versatile USB-C port on your computer port to provide a wide range of port connectivity to suit a variety of applications.
The dock features:
• 3x USB 3.1 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices, including a single port that supports BC 1.2 with 7.5W (1.5A) for charging tablets & smartphones, and a physically isolated HID USB port (side) that prevents electromagnetic interference (EMI) on your wireless keyboard/mouse adapters.
• 1x USB 3.1 Gen 1 (5Gbps) Type-C port to connect USB peripheral devices.
• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).
• 1x 3.5mm 4-position CTIA/OMTP TRRS Audio Jack to connect a 3.5mm headset.
65W USB Power Delivery
The docking station includes a 119.9W power adapter and supports 65W USB power delivery. This enables the dock to charge your connected laptop or tablet. Plus, the added power enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
DKM30CHDPDUE is backed by a 3-year StarTech.com warranty, and free lifetime multilingual, North American based technical support.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal HDMI-porte 0 Udgange til hovedtelefoner 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 1 Antal VGA-porte (D-sub) 1 Antal DisplayPorts 1 Kombineret hovedtelefon/mikrofon-port Ja DC-in-stik Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Fuld duplex Ja Præstation Produktfarve Grå Indbygget kortlæser Ingen Dataoverførselshastighed 5 Gbit/sek. HD-type 4K Ultra HD Maksimal digital opløsning 4096 x 2160 pixel Maksimal analog opløsning 1920 x 1200 pixel Maksimal opdateringshastighed 60 Hz Slot til kabellås Ja Kabellåseslids type Kensington LED-indikatorer Strøm Understøtter UASP Ja Husmateriale Plast Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 2.9 A Udgangsspænding 19.5 V Udgangsstrøm 6,15 A Strømforbrug (typisk) 119,925 W Strømstiktype Type M Kompatible strømplug typer EU, UK Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Understøttede Mac-operativsystemer Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Understøttede Linux-operativsystemer Ja Understøttede mobile operativsystemer Android 10.0, Android 11.0, Android 9.0, iPadOS Andre understøttede operativsystemer ChromeOS Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 85% Vægt & størrelser Bredde 145 mm Dybde 91 mm Højde 27 mm Vægt 313 g Emballeringsdata Pakkebredde 247 mm Pakkedybde 168 mm Pakkehøjde 93 mm Pakkevægt 1,3 kg Emballage indhold Kabler inkluderet USB AC-adapter inkluderet Ja Hurtig start guide Ja Tekniske detaljer Compliance-certifikater CE, RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 10 stk Hovedkassens bredde (udvendigt) 370 mm Hovedkassens længde (udvendigt) 272 mm Hovedkassen højde (udvendigt) 500 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Chipsæt Genesys Logic - GL3523-S, Cmedia - CM6533, Realtek - RTL8153B, Etron - EJ279S, Parade - PS8338B, ITE - IT6516BFN Bæredygtighed Overholdelse af bæredygtighed Ja
