Varenummer: DK30CHDPDUE
Mere information
-

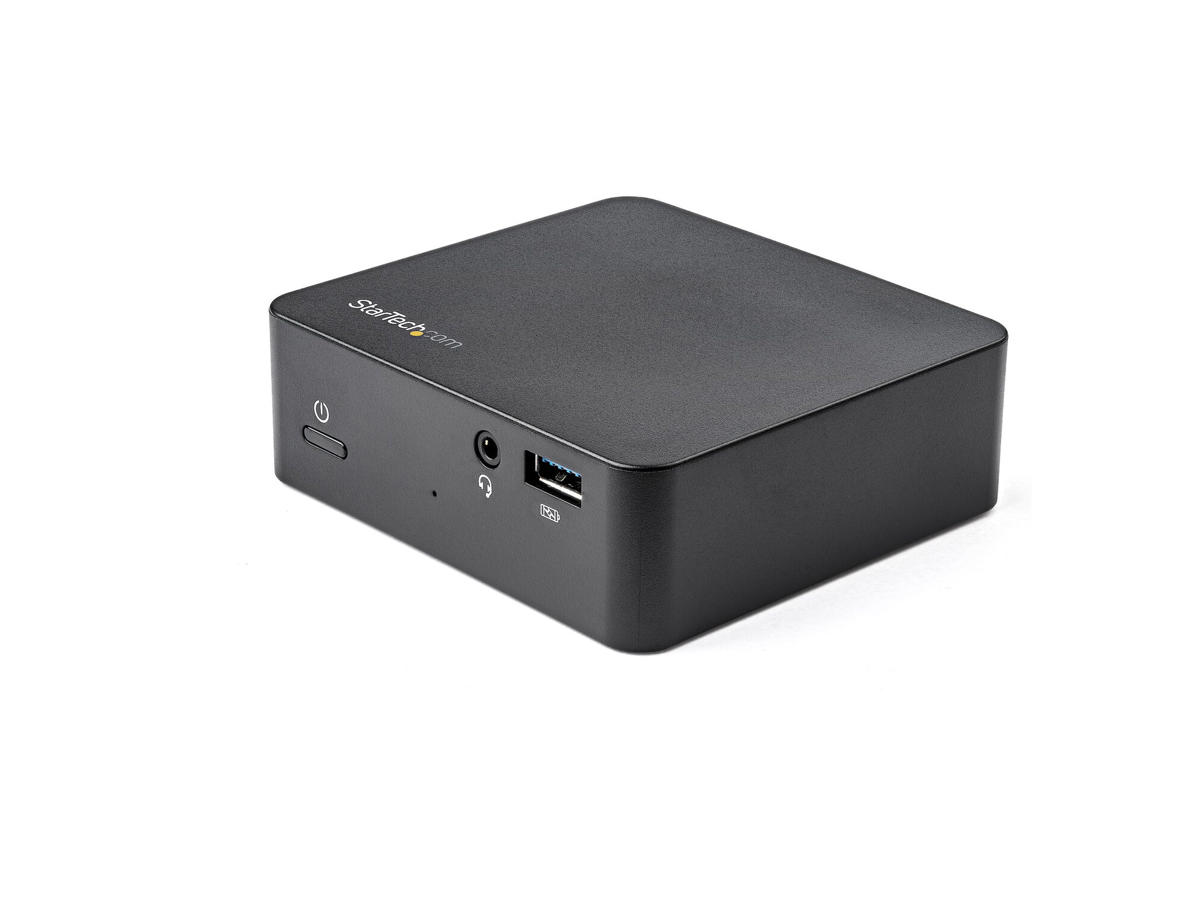

Power and charge your laptop through USB Type-C, and create a workstation virtually anywhere you go by adding 4K HDMI display, plus GbE, and four USB 3.0 ports
This USB-C dock gives you all the connections you need to turn your USB-C enabled laptop or tablet into a fully capable workstation, with support for a single external 4K HDMI monitor or ultrawide monitor. With USB Power Delivery 2.0 (85W), you can power and charge your laptop as you work, eliminating the need to use a separate power adapter with your laptop. It’s the perfect companion for your MacBook Pro or other Thunderbolt 3 equipped laptop or tablet.
Create a 4K HDMI workstation
The USB-C dock helps you maximize your workspace, ideal for smaller or shared work areas using one monitor. The dock expands the display capabilities of your laptop, connecting to an HDMI display with support for resolutions including: 4096x2160 @ 30Hz, 3840 x 2160 @ 30Hz, 2560x1600 @60 Hz, 1920 x 1200 @ 60Hz.
Create an immersive experience by connecting the USB-C dock to an ultrawide or ultrawide curved monitor with 21:9 aspect ratio (3440 x 1440p @ 60 Hz), to emulate a multi-display set-up and gain exceptional picture quality.
Ample connections
The dock provides four USB 3.0 (Type-A) ports to connect peripherals such as your mouse or keyboard. It also includes a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port (with PXE Boot support), and a combined 3.5 mm audio and microphone port.
Universal support
Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.
The DK30CHDPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- COMPACT FULL FEATURE DOCK: This USB-C dock features single 4K 30Hz HDMI video, 85W PD, 4x USB-A 3.0 (5Gbps) ports (1 fast charge), Gigabit Ethernet, a headset/audio port & 1m/3.3 ft USB-C cable
- WIDE DEVICE COMPATIBILITY: USB C dock supports USB-C/Thunderbolt 3 (TB3) laptops like HP, Dell, Lenovo, Surface Laptop 3 & Pro 7, Chromebook, MacBook Pro, MacBook Air, iPad Pro, Samsung, Google Pixel
- 85W POWER DELIVERY: The USB 3.1 Gen 1 Type-C docking station will quickly charge workstation laptops like Lenovo ThinkPad P Series, HP Z Books & MacBook Pro 15/16, where more power is required -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 Antal HDMI-porte 1 Udgange til hovedtelefoner 1 USB strømforsyning Ja USB strømforsyning revision 2.0 USB strømforsyning op til 100 W Tilslutning af hovedtelefoner 3,5 mm DC-in-stik Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Ja Fuld duplex Ja 10G understøttelse Ingen Præstation Produktfarve Sort Dataoverførselshastighed 5 Gbit/sek. Maksimal digital opløsning 4096 x 2160 pixel Tænd-/slukkontakt Ja Understøtter UASP Ja Husmateriale Plast Certificering CE, FCC, REACH Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 2 A Udgangsspænding 20 V Udgangsstrøm 5 A Strømforbrug (typisk) 100 W Strømstiktype Type N Kompatible strømplug typer EU, UK Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac kompabilitet Ja Understøttede Mac-operativsystemer Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 91 mm Dybde 98 mm Højde 32 mm Vægt 200 g Emballeringsdata Pakkebredde 185 mm Pakkedybde 165 mm Pakkehøjde 95 mm Pakkevægt 1 kg Emballage indhold Kabler inkluderet USB Type-C AC-adapter inkluderet Ja Hurtig start guide Ja Tekniske detaljer Compliance-certifikater RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 6 stk Hovedkassens bredde (udvendigt) 200 mm Hovedkassens længde (udvendigt) 310 mm Hovedkassen højde (udvendigt) 360 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Chipsæt Parade - PS176, Realtek - RTL8153, Realtek - RTS5411, C-Media - CM6533
