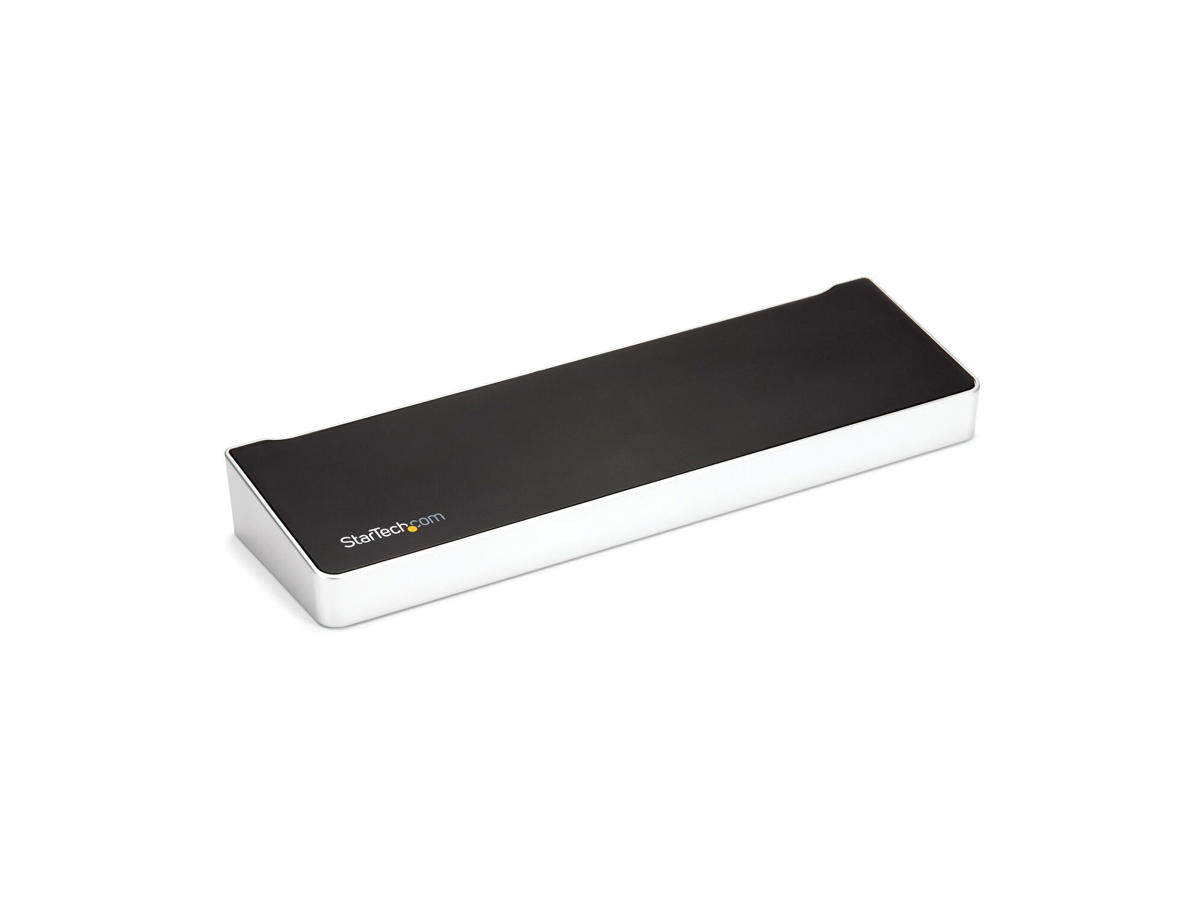

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 2x 4K 60Hz DP + HDMI
This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.
You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity
The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:
• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.
100W Power Delivery
Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.
Powerful Connections
This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4 Antal HDMI-porte 1 Mikrofonindgang Ja Udgange til hovedtelefoner 2 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 2 USB strømforsyning Ja USB strømforsyning op til 100 W Antal DisplayPorts 2 Kombineret hovedtelefon/mikrofon-port Ja Tilslutning af hovedtelefoner 3,5 mm DC-in-stik Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Ja Fuld duplex Ja Præstation Produktfarve Sort, Sølv Indbygget kortlæser Ingen Dataoverførselshastighed 5 Gbit/sek. Maksimal digital opløsning 5120 x 2880 pixel Slot til kabellås Ja Tænd-/slukkontakt Ja Understøtter UASP Ja Gummifødder Ja Husmateriale Plast Certificering CE, FCC, TAA, REACH Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 2.5 A Strømforsyning 100 W Udgangsspænding 20 V Udgangsstrøm 7,5 A Strømstiktype Type N Kompatible strømplug typer EU, UK Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac kompabilitet Ja Understøttede Mac-operativsystemer Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura Andre understøttede operativsystemer ChromeOS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 70% Vægt & størrelser Bredde 82 mm Dybde 270 mm Højde 34 mm Vægt 382 g Emballeringsdata Pakkebredde 160 mm Pakkedybde 320 mm Pakkehøjde 80 mm Pakkevægt 1,7 kg Emballage indhold Kabler inkluderet USB Type-C AC-adapter inkluderet Ja Brugervejledning Ja Tekniske detaljer Compliance-certifikater RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 8 stk Hovedkassens bredde (udvendigt) 365 mm Hovedkassens længde (udvendigt) 370 mm Hovedkassen højde (udvendigt) 370 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Chipsæt DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176
