Varenummer: TB3DKM2DPL
Mere information
-
Portable Laptop Dock offering driverless compatibility with Windows and macOS

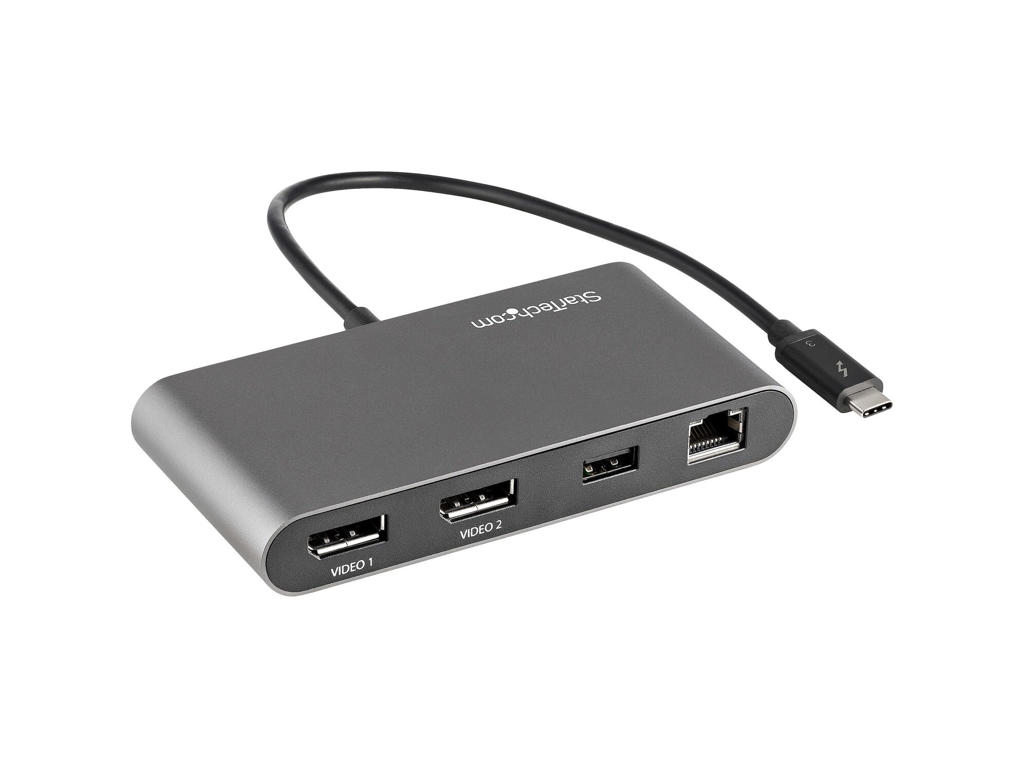

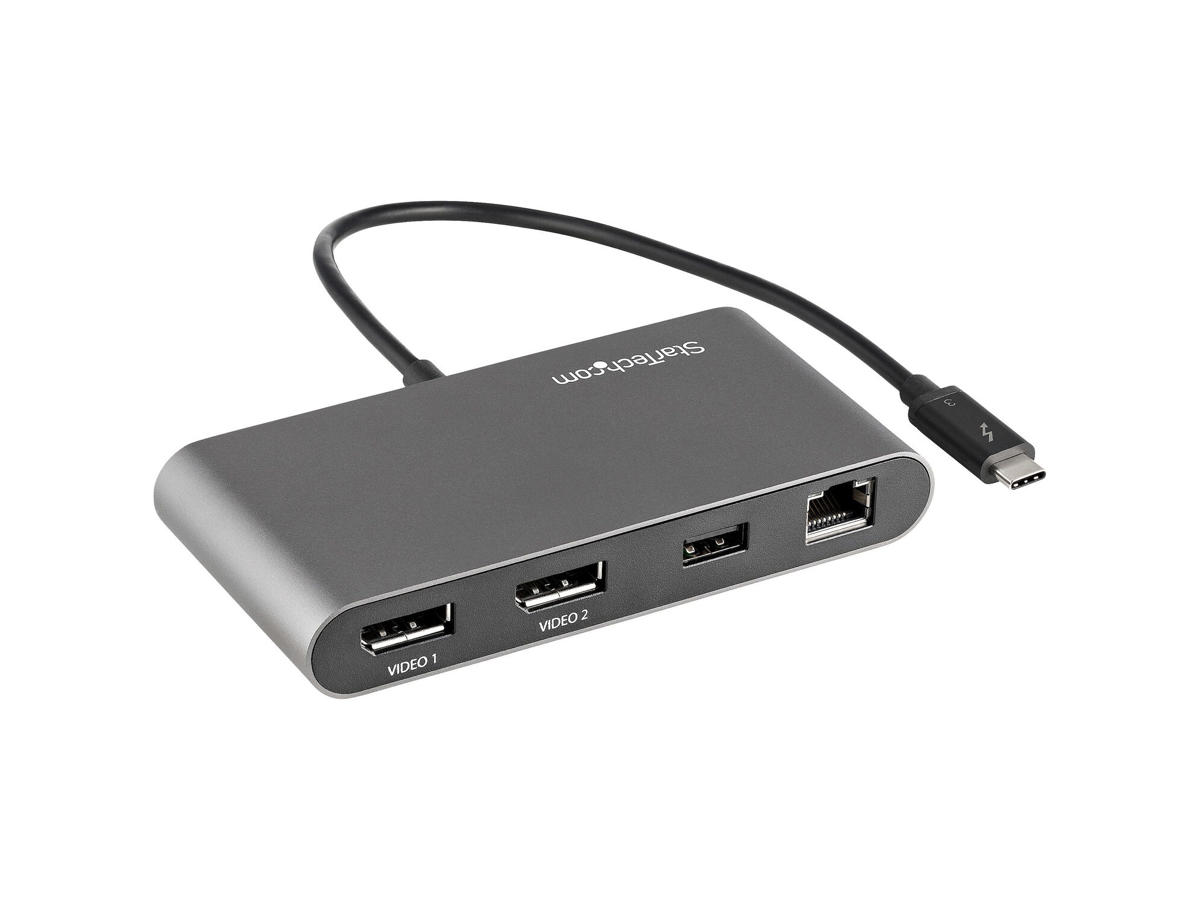

This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K DisplayPort displays, Gigabit Ethernet, and one USB-A port and for flexible set up, the attached Thunderbolt cable has an extended length of (11 in./ 28 cm).
Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ to DisplayPort dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual DisplayPort monitors, through a single Thunderbolt™ port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to:
• 2x 4K DisplayPort (DP) displays (up to 4096 x 2160p @ 60Hz)
Compact Size & 11-Inch Attached Host Cable
At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.
The Ports You Need Most
• 1x USB 5Gbps Type-A port
• 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)
Ideal for Power-Demanding Workstation Setups
As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.
This bus-powered TB mini dock is ideally suited for those users, providing full Thunderbolt™ docking station performance and functionality, while their workstation laptops are separately charged." -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade Thunderbolt 3 Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 1 Antal HDMI-porte 0 Mikrofonindgang Ingen Udgange til hovedtelefoner 0 Antal DisplayPorts 2 Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Wake-on-LAN klar Ja Netværksstandarder IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u Præstation Produktfarve Grå Indbygget kortlæser Ingen Dataoverførselshastighed 5 Gbit/sek. Maksimal digital opløsning 3840 x 2160 pixel Antal understøttede skærme 2 Husmateriale Aluminium, Plast Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Understøttede Mac-operativsystemer Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Understøttede operativsystemer til servere Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64 Driftsbetingelser Driftstemperatur (T-T) 5 - 40 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Vægt & størrelser Bredde 69 mm Dybde 124 mm Højde 27 mm Vægt 147,8 g Emballeringsdata Pakkebredde 139 mm Pakkedybde 195 mm Pakkehøjde 37 mm Pakkevægt 270 g Emballage indhold Brugervejledning Ja Tekniske detaljer Compliance-certifikater CE, RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 24 stk Hovedkassens bredde (udvendigt) 300 mm Hovedkassens længde (udvendigt) 437 mm Hovedkassen højde (udvendigt) 270 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Kabellængde 0,28 m Chipsæt Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210
