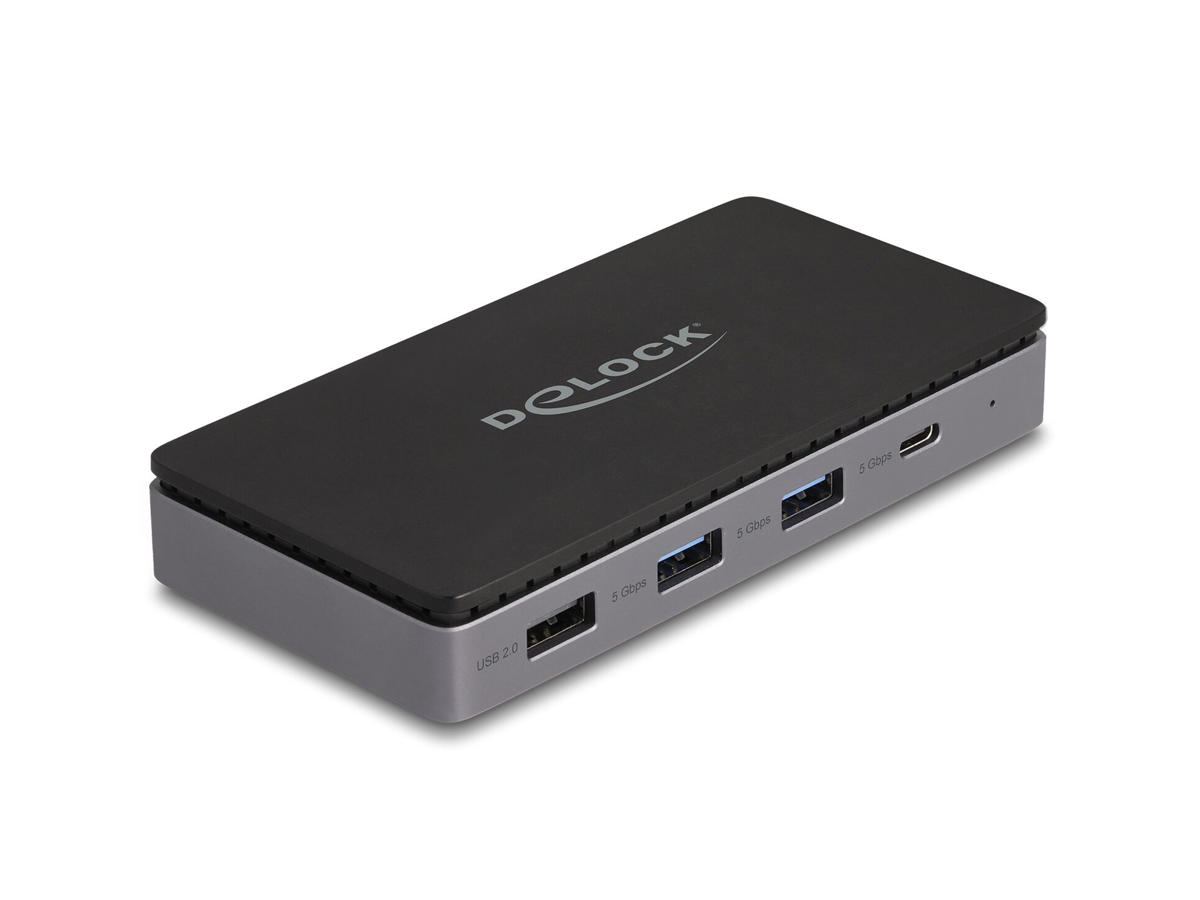

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Three built-in USB Type-A and one USB-C™ port allow the use of peripherals.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
Integrated 10/100/1000 Mbps LAN interface
In addition, the docking station with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 85 watts during operation.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Antal USB 2.0-porte | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal HDMI-porte | 2 |
| Mikrofonindgang | Ingen |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 2 |
| USB strømforsyning | Ja |
| USB strømforsyning revision | 3.0 |
| USB strømforsyning op til | 85 W |
| HDCP | Ja |
| HDCP-version | 1.4/2.2 |
| USB type-C DisplayPort alternativ tilstand | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Præstation | |
| Produktfarve | Sort, Grå |
| Indbygget kortlæser | Ingen |
| Dataoverførselshastighed | 5 Gbit/sek. |
| HD-type | 4K Ultra HD |
| Maksimal digital opløsning | 3840 x 2160 pixel |
| Antal understøttede skærme | 2 |
| Maksimal opdateringshastighed | 60 Hz |
| High Dynamic Range (HDR) understøttet | Ja |
| Skærm funktioner | Udvidet, Spejl |
| LED-indikatorer | Ja |
| Plug and play | Ja |
| Funktion for opladning | Ja |
| Husmateriale | Metal, Plast |
| Oprindelsesland | Kina |
| Strømstyring | |
| Strømkilde type | USB |
| Strømstik | USB Type-C |
| USB-kabellængde | 1 m |
| Software | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
| Understøttede Mac-operativsystemer | Mac OS X 14.0 Sonoma |
| Understøttede Linux-operativsystemer | Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2 |
| Understøttede mobile operativsystemer | Android 13.0 |
| Andre understøttede operativsystemer | ChromeOS, iPadOS |
| Vægt & størrelser | |
| Bredde | 62 mm |
| Dybde | 125 mm |
| Højde | 19 mm |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Emballage indhold | |
| Brugervejledning | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE |
