Varenummer: 154B-USBC-MULTIPORT
Mere information
-

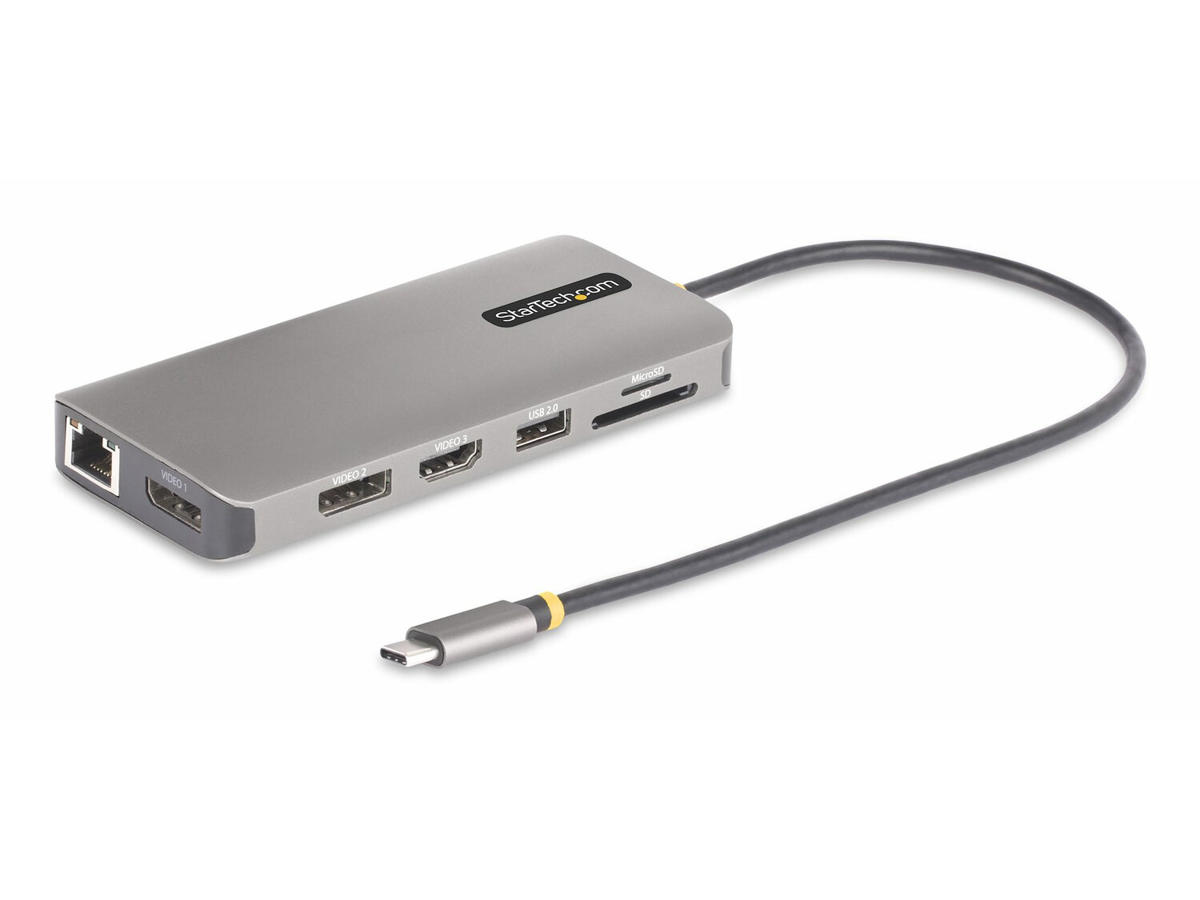

Create a workstation wherever you work with multiple displays, multiple USB ports, Gigabit Ethernet, and an SD slot
This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three displays. The USB-C dock provides 1x HDMI, 2x DisplayPort, a 4-Port USB Hub, SD and Micro SD Card Reader and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 1 ft. (30 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.
High-Performance Triple Video via MST
The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 30Hz and 2x 4K (3840 x 2160p) at 60Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features one HDMI 2.0b port and two DisplayPort 1.4 ports, providing a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.
Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.
Connect USB Peripherals
The USB-C to USB 3.2 Gen 1 (5Gbps) hub features four USB-A ports (2x USB 5Gbps, 2x USB 2.0) for connecting USB HID devices and/or peripherals (e.g., storage devices).
Extra Long Cable & Durable Build
The mini docking station features a built-in 1 ft. (30 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. It also features a durable aluminum housing.
Built-In SD/MicroSD Card Readers
Access your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHC™ / SDXC™ or microSD (uSD) memory cards.
100W Power Delivery
Connect a USB-C power adapter to the pass-through port in order to charge the host laptop supporting 100W USB Power Delivery pass-through with 15W reserved for adapter & up to 85W for host laptop charging.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
MAC Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices.
•
Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antal USB 2.0-porte 2 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 1 Antal HDMI-porte 1 Udgange til hovedtelefoner 1 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 1 USB strømforsyning Ja USB strømforsyning revision 3.0 USB strømforsyning op til 100 W HDMI-version 2.0b Antal DisplayPorts 2 DisplayPort-version 1.4 Kombineret hovedtelefon/mikrofon-port Ja USB type-C DisplayPort alternativ tilstand Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Wake-on-LAN klar Ja Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Fuld duplex Ja Præstation Produktfarve Grå Indbygget kortlæser Ja Kompatible hukommelseskort MicroSD (TransFlash), SD Dataoverførselshastighed 5 Gbit/sek. HD-type 4K Ultra HD Maksimal digital opløsning 3840 x 2160 pixel Antal understøttede skærme 3 Maksimal opdateringshastighed 60 Hz LED-indikatorer Aktivitet Understøtter UASP Ja Husmateriale Aluminium, Plast Strømstyring Strømkilde type USB Strømforbrug (typisk) 15 W USB-kabellængde 0,3 m Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Andre understøttede operativsystemer ChromeOS Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Vægt & størrelser Bredde 56 mm Dybde 130 mm Højde 16 mm Vægt 106 g Emballeringsdata Pakkebredde 170 mm Pakkedybde 142 mm Pakkehøjde 30 mm Pakkevægt 120 g Emballage indhold Hurtig start guide Ja Logistik data Produkter pr. hovedkasse (udvendigt) 24 stk Hovedkassens bredde (udvendigt) 320 mm Hovedkassens længde (udvendigt) 380 mm Hovedkassen højde (udvendigt) 220 mm Andre funktioner Chipsæt VIA - VL102, VIA - VL817, Synaptics - VMM5320, Realtek - RTL8153, Solid State System - SSS1700, Genesys Logic - GL823K
