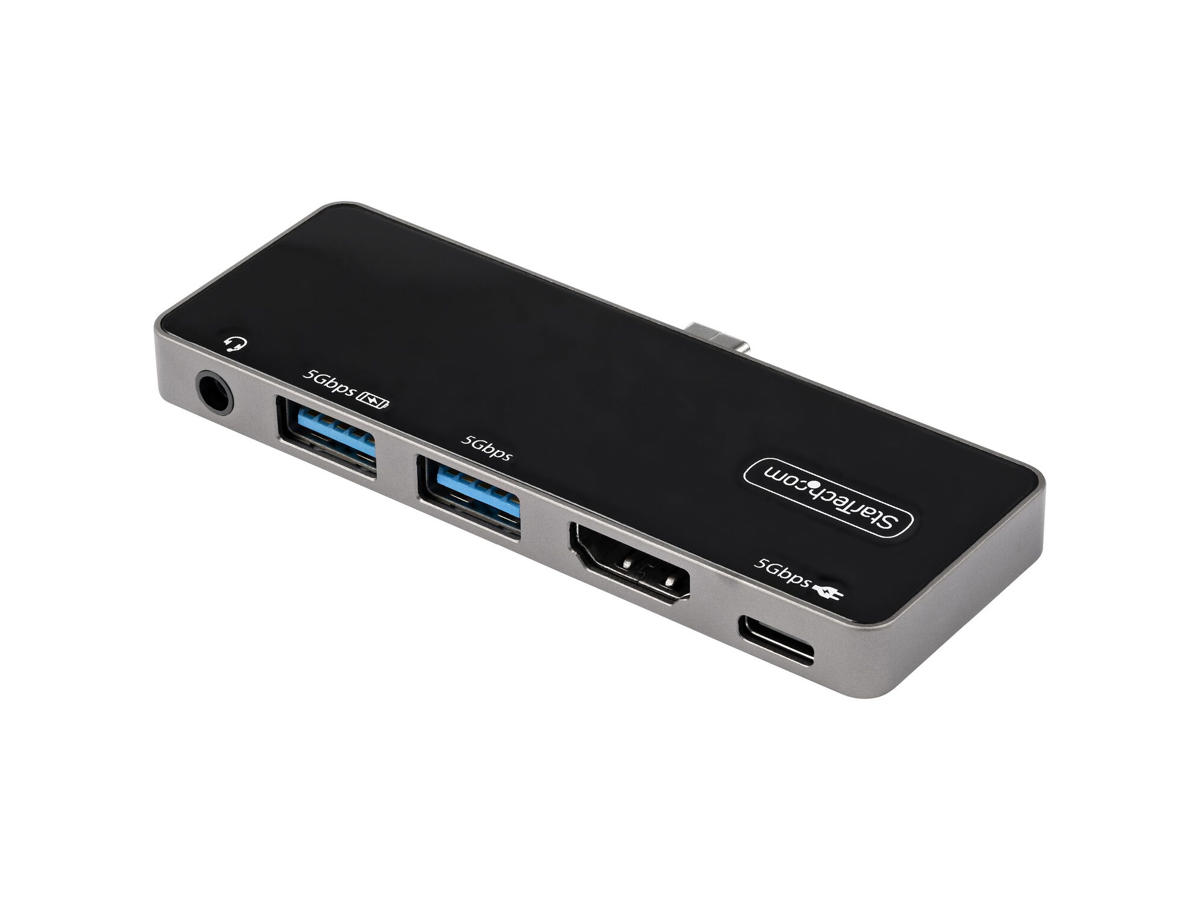

USB-C™ Multiport Adapter | Mac & Windows® | 4K 60Hz | DP1.4 Alt-Mode | HDMI 2.0 | Thunderbolt™ 3 Compatible
This USB-C multiport adapter with DP 1.4 compatibility turns your iPad Pro, Surface Pro 7, Google Pixelbook and other USB-C™ tablets and laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K 60Hz HDMI (HDR10) video output, a USB Type-C™ port (data/power), two USB 3.2 Gen 1 Type-A (5Gbps) ports, and a TRRS 4-channel audio port for headset and mic, all through a single connection to your laptop's USB-C or Thunderbolt 3™ port.
It offers advanced charging through USB 100W Power Delivery 3.0 and eliminates the need for an attached cable with a direct/flush USB-C connection
Enhance Productivity
The portable docking station features DP 1.4 support from the host side and supports a single HDMI monitor resolution up to 4K 60Hz (4096 x 2160p), when connected to devices that support DP 1.4, to create a powerful workstation.
DP Alt Mode Required
Maximum Resolution
DP 1.2 Alternate Mode
Up to 4K 30Hz
DP 1.4 Alternate Mode
Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports (one BC 1.2 charging port) and a USB-C port (shared for power or data) to connect your USB devices.
Charge Your Laptop and Peripherals
With support for USB Power Delivery 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The multiport adapter itself reserves 8W leaving up to 92W of power for charging. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
The DKT30ICHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.
The StarTech.com Advantage
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Antal USB 2.0-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal HDMI-porte | 1 |
| Udgange til hovedtelefoner | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
| USB strømforsyning | Ja |
| USB strømforsyning op til | 100 W |
| HDMI-version | 2.0 |
| Kombineret hovedtelefon/mikrofon-port | Ja |
| Tilslutning af hovedtelefoner | 3,5 mm |
| Netværk | |
| Ethernet LAN | Ingen |
| Præstation | |
| Produktfarve | Sort, Sølv |
| Indbygget kortlæser | Ingen |
| Dataoverførselshastighed | 5 Gbit/sek. |
| HD-type | 4K Ultra HD |
| Maksimal digital opløsning | 3840 x 2160 pixel |
| Antal understøttede skærme | 1 |
| Maksimal opdateringshastighed | 60 Hz |
| Strømstyring | |
| Strømforbrug (typisk) | 8 W |
| Software | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Understøttede Mac-operativsystemer | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Understøttede mobile operativsystemer | Android, iPadOS |
| Andre understøttede operativsystemer | ChromeOS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Opbevaringstemperatur (T-T) | -10 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
| Vægt & størrelser | |
| Bredde | 90 mm |
| Dybde | 32 mm |
| Højde | 8,5 mm |
| Vægt | 83 g |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Pakkebredde | 142 mm |
| Pakkedybde | 170 mm |
| Pakkehøjde | 30 mm |
| Pakkevægt | 110 g |
| Emballage indhold | |
| Brugervejledning | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE, RoHS |
| Logistik data | |
| Produkter pr. hovedkasse (udvendigt) | 30 stk |
| Hovedkassens bredde (udvendigt) | 450 mm |
| Hovedkassens længde (udvendigt) | 340 mm |
| Hovedkassen højde (udvendigt) | 200 mm |
| Harmoniseret systemkode (HS) | 84733020 |
| Andre funktioner | |
| Chipsæt | VIA Labs - VL102, VIA Labs - VL817, Parade - PS186 |
