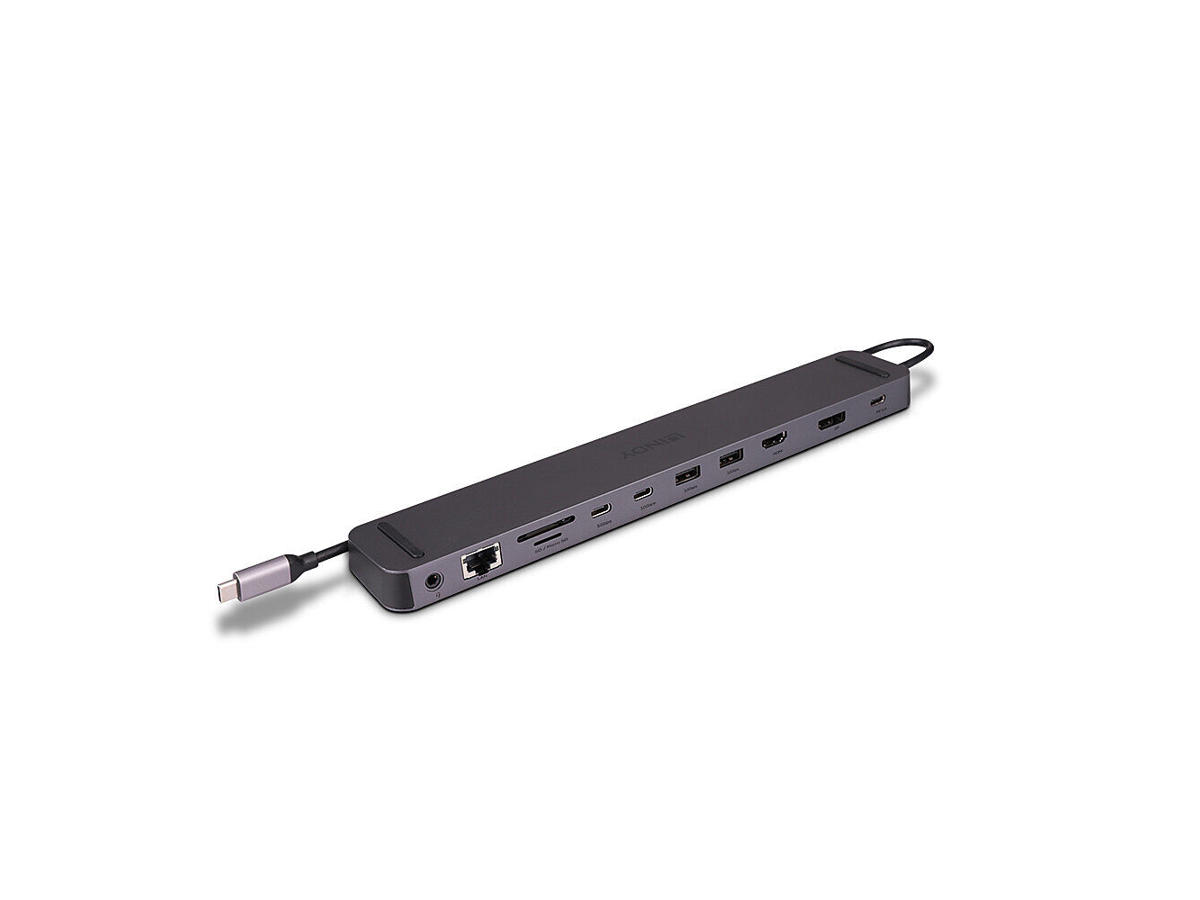

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.
This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.
The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**
This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.
*Please note that macOS does not support MST.
** Please note that the Docking Station requires 15W for its own operation.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Docking |
| Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Antal HDMI-porte | 1 |
| Udgange til hovedtelefoner | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
| USB strømforsyning | Ja |
| USB strømforsyning revision | 3.0 |
| USB strømforsyning op til | 100 W |
| HDMI-version | 2.1 |
| Antal DisplayPorts | 1 |
| DisplayPort-version | 1.4a |
| Kombineret hovedtelefon/mikrofon-port | Ja |
| Tilslutning af hovedtelefoner | 3,5 mm |
| HDCP | Ja |
| HDCP-version | 1.4/2.2 |
| USB type-C DisplayPort alternativ tilstand | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Wake-on-LAN klar | Ja |
| Præstation | |
| Produktfarve | Anthracit |
| Indbygget kortlæser | Ja |
| Kompatible hukommelseskort | MicroSD (TransFlash), SD |
| Dataoverførselshastighed | 10 Gbit/sek. |
| Maksimal digital opløsning | 7680 x 4320 pixel |
| Antal understøttede skærme | 2 |
| Maksimal opdateringshastighed | 120 Hz |
| Plug and play | Ja |
| Husmateriale | Aluminium |
| Certificering | CE, FCC, REACH & RoHS, CP65 |
| Strømstyring | |
| Strømkilde type | USB |
| Strømstik | USB Type-C |
| Strømforsyning | 15 W |
| USB-kabellængde | 0,36 m |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -10 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 85% |
| Vægt & størrelser | |
| Bredde | 270 mm |
| Dybde | 45 mm |
| Højde | 16 mm |
| Vægt | 224 g |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Pakkebredde | 365 mm |
| Pakkedybde | 93 mm |
| Pakkehøjde | 35 mm |
| Pakkevægt | 330 g |
| Emballage indhold | |
| Brugervejledning | Ja |
| Tekniske detaljer | |
| Garantiperiode | 2 År |
| Compliance-certifikater | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Bæredygtighed | |
| Overholdelse af bæredygtighed | Ja |
