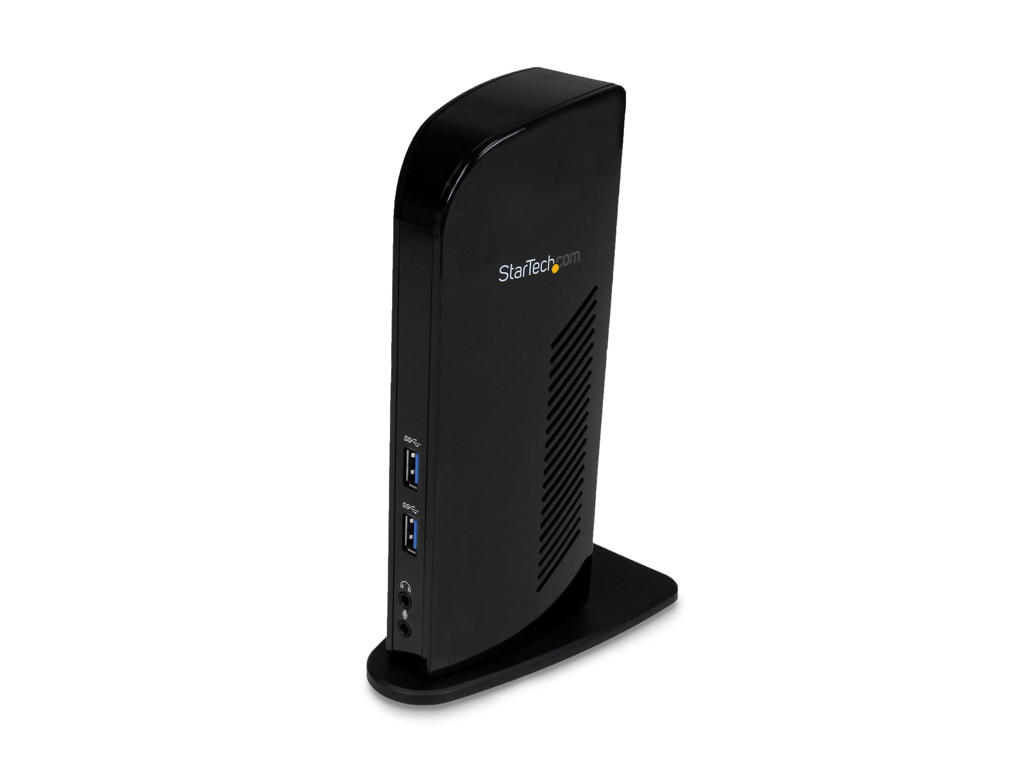

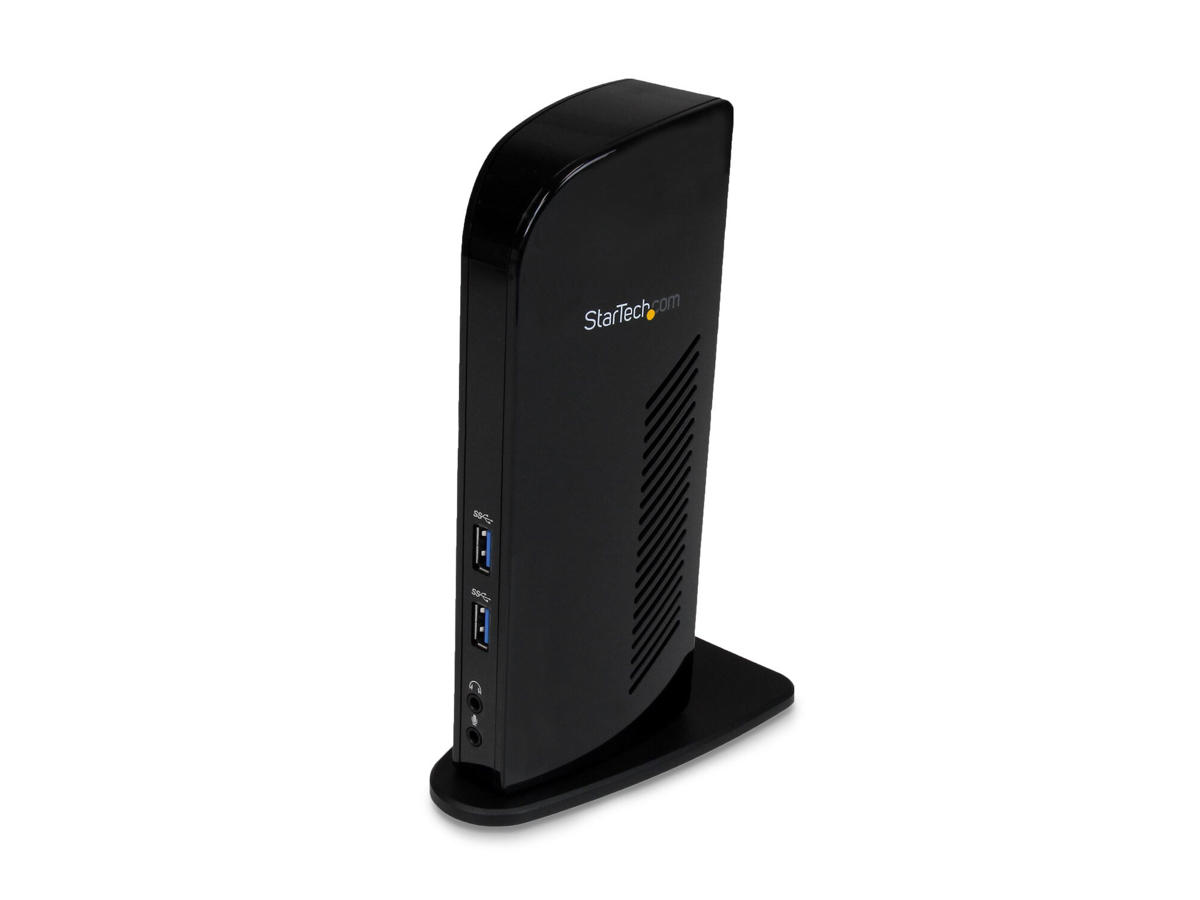

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
Antal USB 2.0-porte | 4 |
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
Antal HDMI-porte | 1 |
Mikrofonindgang | Ja |
Udgange til hovedtelefoner | 1 |
Antal DVI-I-porte | 1 |
Kombineret hovedtelefon/mikrofon-port | Ingen |
Tilslutning af hovedtelefoner | 3,5 mm |
USB-stik type | USB Type-A |
DC-in-stik | Ja |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-porte (RJ-45) | 1 |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Auto MDI/MDI-X | Ja |
Fuld duplex | Ja |
Præstation | |
Produktfarve | Sort |
Indbygget kortlæser | Ingen |
Dataoverførselshastighed | 5 Gbit/sek. |
Maksimal digital opløsning | 1920 x 1200 pixel |
LED-indikatorer | Strøm, USB |
Husmateriale | Plast |
Mærke kompatibilitet | Alle mærker |
Certificering | CE, FCC |
Strømstyring | |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 0.8 A |
Udgangsspænding | 5 V |
Udgangsstrøm | 4 A |
Strømforbrug (typisk) | 20 W |
Strømstiktype | Type C |
Kompatible strømplug typer | AU, EU, JP, UK, US |
Software | |
Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional |
Mac kompabilitet | Ja |
Understøttede Mac-operativsystemer | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Andre understøttede operativsystemer | ChromeOS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 10 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 80 °C |
Vægt & størrelser | |
Bredde | 70 mm |
Dybde | 125 mm |
Højde | 195 mm |
Vægt | 370 g |
Emballeringsdata | |
Pakkebredde | 190 mm |
Pakkedybde | 273 mm |
Pakkehøjde | 109 mm |
Pakkevægt | 900 g |
Emballage indhold | |
Kabler inkluderet | USB |
AC-adapter inkluderet | Ja |
Brugervejledning | Ja |
Drivere inkluderet | Ja |
Grænseflade-adaptere inkluderet | DVI-I hanstik - VGA hunstik |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 6 stk |
Hovedkassens bredde (udvendigt) | 300 mm |
Hovedkassens længde (udvendigt) | 400 mm |
Hovedkassen højde (udvendigt) | 360 mm |
Harmoniseret systemkode (HS) | 84733020 |
Andre funktioner | |
Minimum systemkrav | CPU: i3 Dual core 2.8GHz + RAM: 2GB + |
Chipsæt | DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E |
Antal mikrofon-indgange | 1 |
