Varenummer: USB3SDOCKHDV
Mere information
-

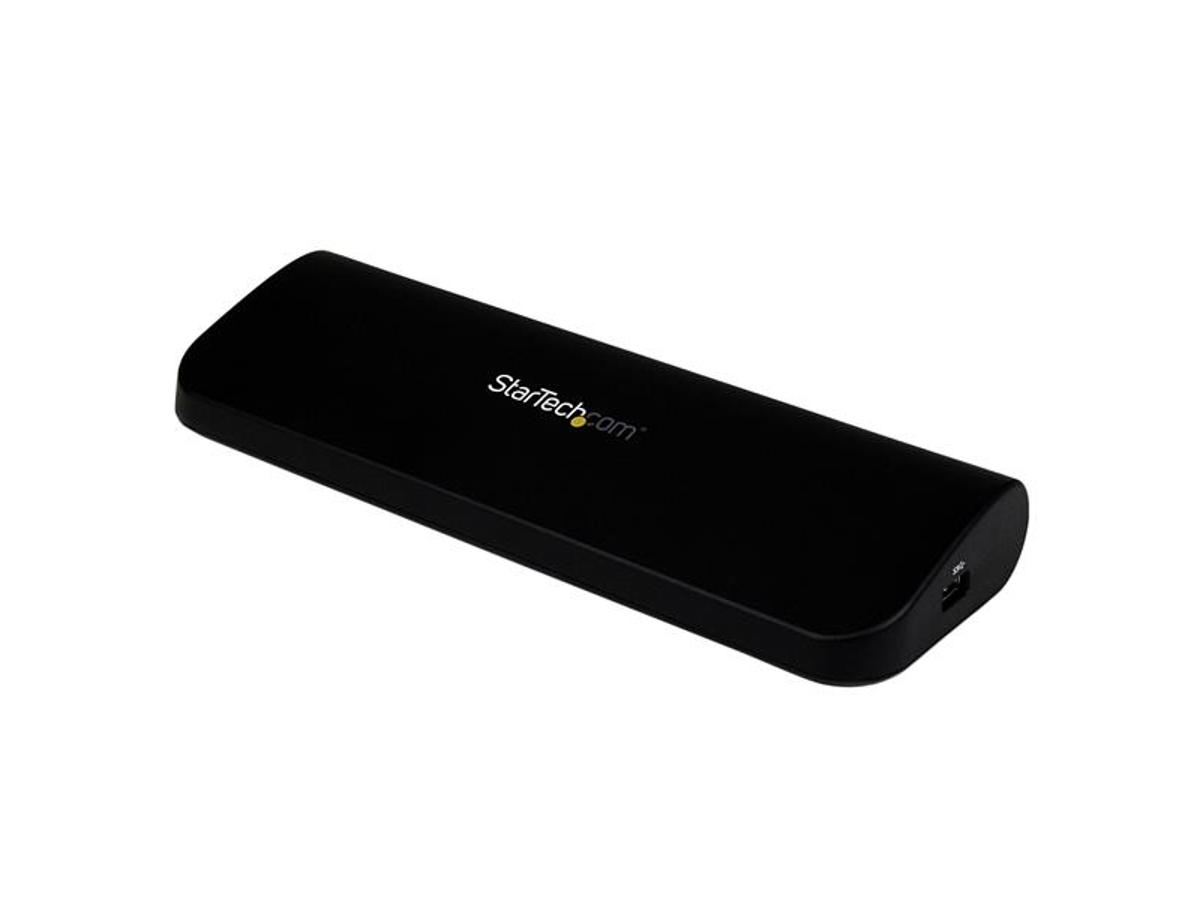

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio
This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
Available display combinations:
• HDMI + VGA
• HDMI + DVI
Integrated USB Hub
The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade USB 3.2 Gen 1 (3.1 Gen 1) Type-B Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3 Antal HDMI-porte 1 Mikrofonindgang Ja Udgange til hovedtelefoner 1 Antal VGA-porte (D-sub) 1 Antal DVI-D-porte 1 DC-in-stik Ja Netværk Ethernet LAN Ja Ethernet LAN-porte (RJ-45) 1 Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Kobber ethernet kabelteknologi 1000BASE-T, 100BASE-TX, 10BASE-T Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Ja Fuld duplex Ja Præstation Produktfarve Sort Indbygget kortlæser Ingen Dataoverførselshastighed 5 Gbit/sek. Maksimal digital opløsning 1920 x 1200 pixel Maksimal analog opløsning 2048 x 1152 pixel Slot til kabellås Ja Kabellåseslids type Kensington Husmateriale Plast Certificering FCC, CE, TAA, REACH Strømstyring Vekselstrømsindgangsspænding 100-240 V Indgangsstrøm 0.9 A Udgangsspænding 5 V Udgangsstrøm 4 A Strømforbrug (typisk) 20 W Strømstiktype Type B Kompatible strømplug typer AU, EU, UK, US Software Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac kompabilitet Ja Understøttede Mac-operativsystemer Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Andre understøttede operativsystemer ChromeOS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 178 mm Dybde 304 mm Højde 44 mm Vægt 295 g Emballeringsdata Pakkebredde 195 mm Pakkedybde 296 mm Pakkehøjde 66 mm Pakkevægt 878 g Emballage indhold Kabler inkluderet USB AC-adapter inkluderet Ja Brugervejledning Ja Drivere inkluderet Ja Tekniske detaljer Compliance-certifikater RoHS Logistik data Produkter pr. hovedkasse (udvendigt) 6 stk Hovedkassens bredde (udvendigt) 215 mm Hovedkassens længde (udvendigt) 435 mm Hovedkassen højde (udvendigt) 345 mm Harmoniseret systemkode (HS) 84733020 Andre funktioner Chipsæt DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E USB-dataoverførselshastigheder 12,480,5000 Mbit/s
