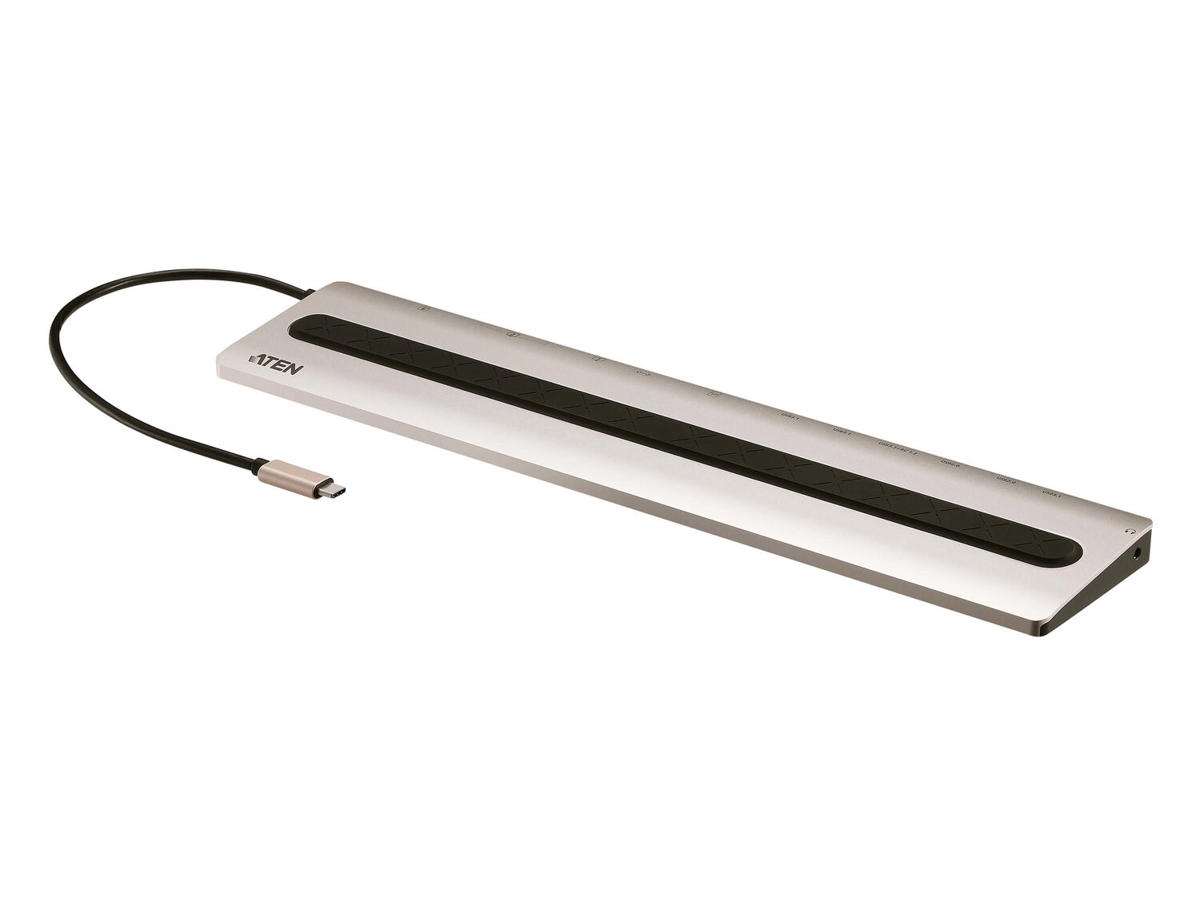

The ultra-sleek ATEN USB-C Multiport Dock is a one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 13 devices, with power delivery pass-through to boost your productivity with extra HDMI, VGA, USB 3.2 Gen 1, USB 2.0, SD/MicroSD, Ethernet and Audio connections.
Enjoy stunning 4K video or a dual HD monitor setup with HDMI, and VGA functionality. The UH3237 routes video from a source computer to a HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors at 1920 x 1080@60hz.
The UH3237 also supports USB-C Power Delivery Pass-Through up to 85W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 12V, 15V, 20V.
The integrated USB 3.2 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port are designed for keyboard and mouse to minimize the signal interference. The equipped Type-C data port can be used for the latest USB-C devices.
This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows, OS X and iPad Pro).Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged dock or display the dock next to your monitors for a stylish, minimalist workstation.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3 |
| Antal HDMI-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 1 |
| Antal VGA-porte (D-sub) | 1 |
| Kombineret hovedtelefon/mikrofon-port | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Præstation | |
| Produktfarve | Sort, Grå |
| Indbygget kortlæser | Ja |
| Kompatible hukommelseskort | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maksimal størrelse på hukommelseskort | 128 GB |
| HD-type | 4K Ultra HD |
| Maksimal digital opløsning | 3840 x 2160 pixel |
| Maksimal analog opløsning | 1920 x 1080 pixel |
| Antal understøttede skærme | 2 |
| Maksimal opdateringshastighed | 60 Hz |
| Husmateriale | Aluminium, Plast |
| Strømstyring | |
| Strømkilde type | DC |
| Strømstik | USB Type-C |
| Strømforbrug (typisk) | 15 W |
| Software | |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Understøttede mobile operativsystemer | iOS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 75 mm |
| Dybde | 350,3 mm |
| Højde | 14,8 mm |
| Vægt | 371 g |
| Emballeringsdata | |
| Pakkebredde | 115 mm |
| Pakkedybde | 420 mm |
| Pakkehøjde | 38 mm |
| Pakkevægt | 480 g |
| Logistik data | |
| Produkter pr. hovedkasse (udvendigt) | 10 stk |
| Hovedkassens bredde (udvendigt) | 250 mm |
| Hovedkassens længde (udvendigt) | 440 mm |
| Hovedkassen højde (udvendigt) | 210 mm |
| Hovedkassens bruttovægt (udvendigt) | 5,4 kg |
| Ydre emballage nettovægt | 3,71 kg |
| Harmoniseret systemkode (HS) | 84733020 |
| Andre funktioner | |
| Kabellængde | 0,3 m |
