Facilitate higher refresh rates and 8K 60Hz video on UHBR20-enabled DisplayPort devices

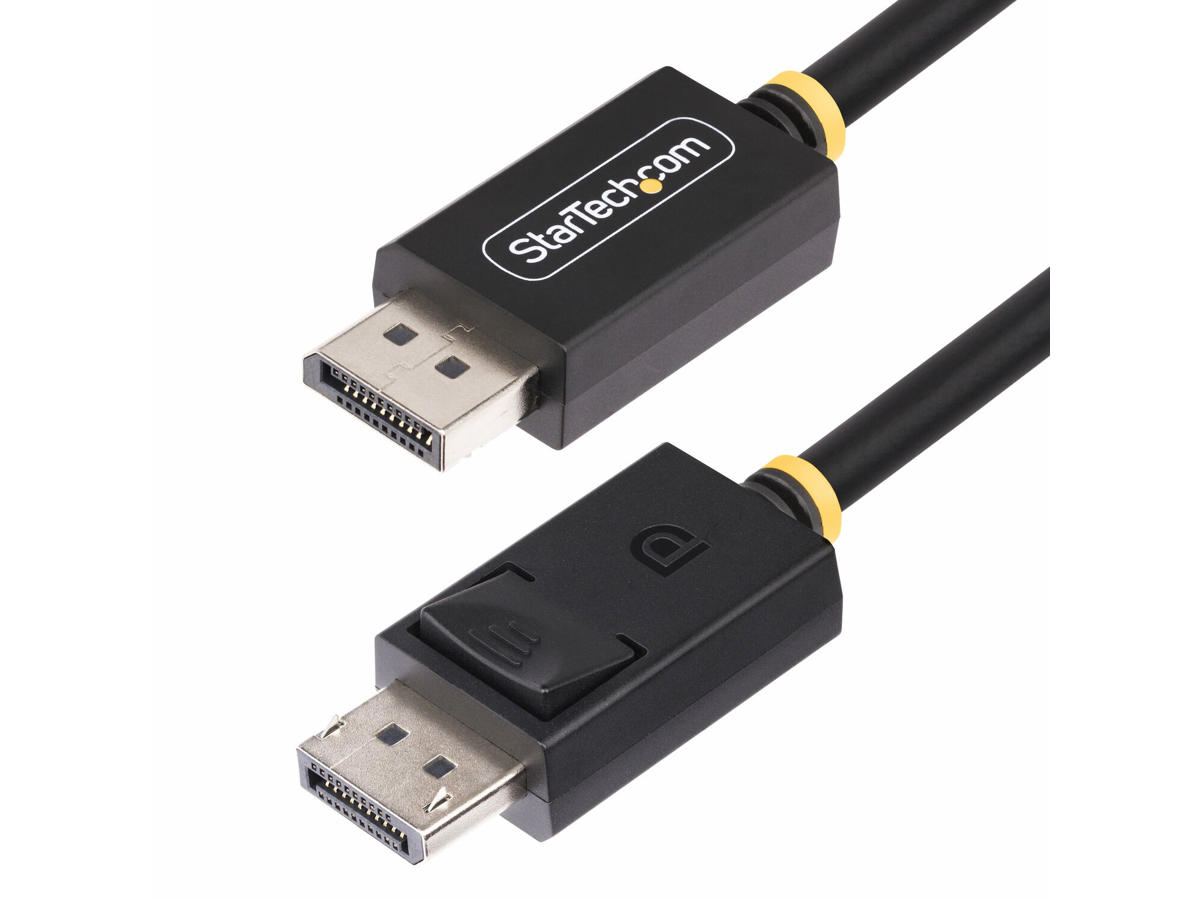

Connect a 16K/8K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 16K/8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP80 DisplayPort cable supports the following DP 2.1 features:
• Resolutions up to 16K 60Hz w/DSC, using a compatible DP source and display
• UHBR20 supports high refresh rates including 8K 85Hz, 4K 240Hz, and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage -
Funktioner Kabellængde 1 m Stik 1 DisplayPort Stik 2 DisplayPort Stik 1 køn Hanstik Stik 2 køn Hanstik Maksimal opløsning 15360 x 8640 pixel Produktfarve Sort Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Nikkel DisplayPort-version 2.1 Understøttede grafikopløsninger 3840 x 2160, 7680 x 4320 Maksimal opdateringshastighed 240 Hz HDCP Ja HDCP-version 2.2 Display Stream Compression (DSC) Ja Display Stream Compression (DSC) version 1.2a Låsestik Ja Kabelmateriale Kobber Kabelafskærmning Aluminium mylar folie Materiale for kapper Termoplastisk elastomer (TPE) AWG-ledningsstørrelse 30 High Dynamic Range (HDR) understøttet Ja Dataoverførselshastighed 80 Gbit/sek. Antal kanaler 32 kanaler Multi-Stream Transport (MST) Ja Vurdering af brandmodstandsevne VW-1 Kabeltype Rundt kabel Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 85% Godkendelser Compliance-certifikater RoHS Bæredygtighed Indeholder ikke Halogen Overholdelse af bæredygtighed Ja Vægt & størrelser Kabeldiameter 5,8 mm Vægt 80 g Emballeringsdata Pakkebredde 125 mm Pakkedybde 220 mm Pakkehøjde 20 mm Pakkevægt 86 g Emballage indhold Antal pr. pakke 1 stk Logistik data Hovedkassens bredde (udvendigt) 490 mm Hovedkassens længde (udvendigt) 330 mm Hovedkassen højde (udvendigt) 215 mm Produkter pr. hovedkasse (udvendigt) 100 stk
