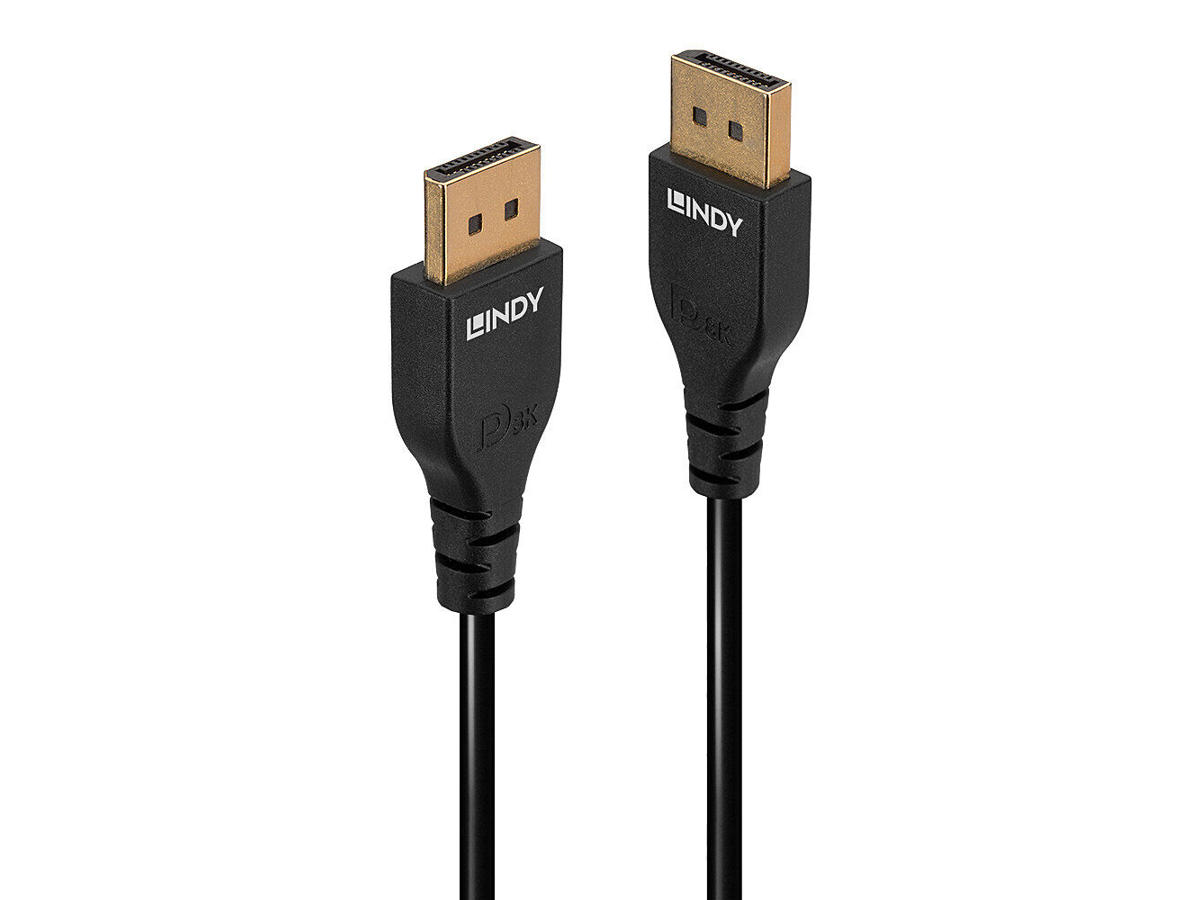

Professional choice slim DisplayPort 1.4 cable with low profile connectors
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit and 4K 4096x2160@144Hz 4:2:2 10bit
Robust ABS housing with 24K gold-plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
10-year warranty
Lindy’s range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.
With their compact, high performance design, these cables are ideal for situations where space is limited around source & display ports, such as with gaming monitors or graphics cards.
Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue.
High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands.
With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).
Funktioner | |
Kabellængde | 2 m |
Stik 1 | DisplayPort |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Maksimal opløsning | 7680 x 4320 pixel |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Guld |
DisplayPort-version | 1.4 |
Understøttede grafikopløsninger | 4096 x 2160, 7680 x 4320 |
Understøttede videotilstande | 4320p |
Maksimal opdateringshastighed | 144 Hz |
Kabelafskærmning | Kobber |
Antal afskærmningslag | 3 |
Materiale for kapper | Polyvinylchlorid (PVC) |
AWG-ledningsstørrelse | 30 |
Dataoverførselshastighed | 32,4 Gbit/sek. |
Kontaktmateriale | Fosforbronze |
Kabeltype | Rundt kabel |
Driftsbetingelser | |
Driftstemperatur (T-T) | 10 - 80 °C |
Opbevaringstemperatur (T-T) | 0 - 80 °C |
Bæredygtighed | |
Bæredygtighedscertifikater | REACH, RoHS |
Emballeringsdata | |
Pakketype | Polybag |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
