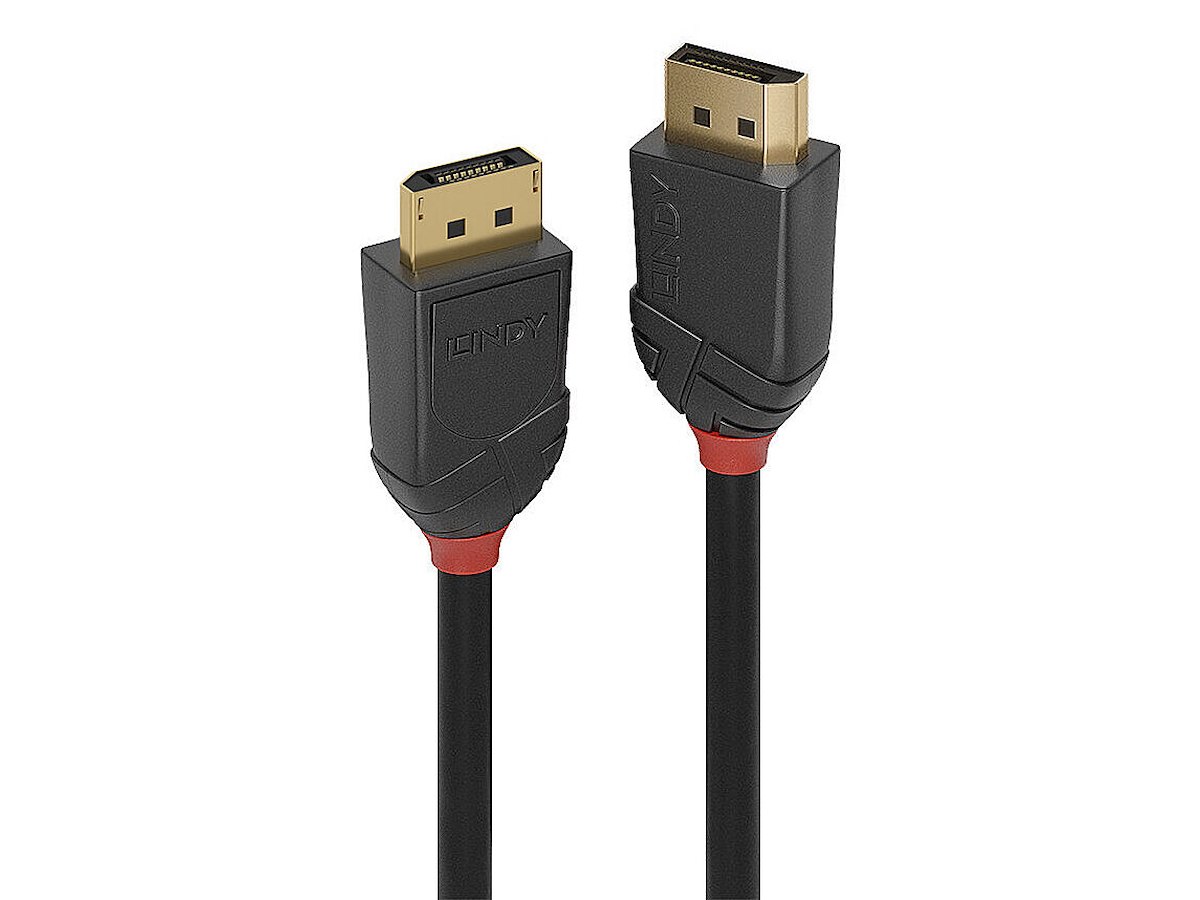

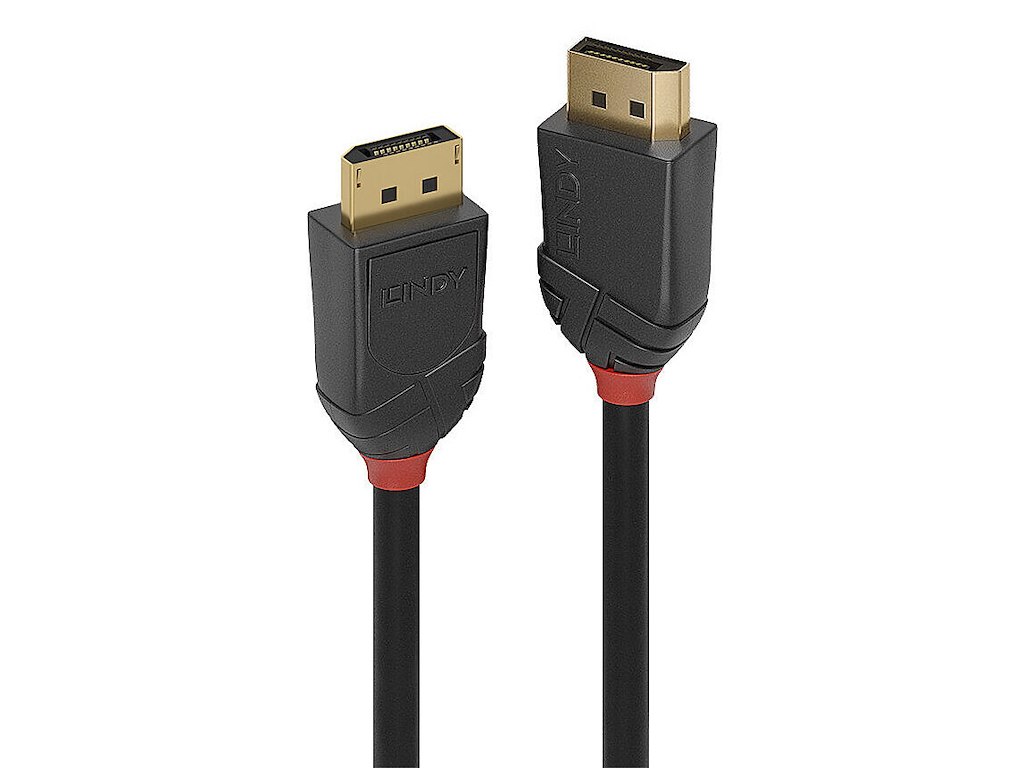

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort 2.1 cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
UHD resolutions up to 16K 15360x8640@60Hz 4:4:4 10-Bit With DSC (Display Screen Compression). DSC is a visually lossless compression standard that allows higher resolutions and refresh rates by reducing the data bandwidth required for transmission. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD.
With support for the full 80Gbps bandwidth of DisplayPort 2.1 (UHBR20), Black Line cables deliver the highest possible data rates over a passive copper connection. This enables uncompressed 8K video at 60Hz with 10-bit 4:4:4 chroma, or 4K at ultra-high refresh rates up to 240Hz ideal for immersive applications such as high-end gaming, virtual production, simulation, and medical imaging. The extreme bandwidth also ensures full compatibility with emerging upto 16K display formats when using DSC.
Black Line DisplayPort 2.1 80G cables are premium connections that feature triple shielding with 30AWG bare copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability. -
Funktioner Kabellængde 1 m Stik 1 DisplayPort Stik 2 DisplayPort Stik 1 køn Hanstik Stik 2 køn Hanstik Maksimal opløsning 16360 x 8640 pixel Produktfarve Sort Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Nikkel DisplayPort-version 2.1 Maksimal opdateringshastighed 60 Hz Materiale for kapper Polyvinylchlorid (PVC) Materiale til stikhus Acrylonitrilbutadienstyren AWG-ledningsstørrelse 30 Båndbredde 80000 MB/s Kabeltype Rundt kabel Nominel dæmpning 100 MHz - 450 MHz < 5.1 dB 450 MHz - 8100 MHz < 33.28 dB 8100 MHz - 13500 MHz < 38.0 dB Driftsbetingelser Driftstemperatur (T-T) -20 - 80 °C Opbevaringstemperatur (T-T) -25 - 85 °C Godkendelser Compliance-certifikater RoHS, REACH, UL Vægt & størrelser Kabeldiameter 7 mm Stik 1 dimensioner (BxDxH) 20,7 x 42,6 x 13 mm Emballeringsdata Pakketype Polybag Emballage indhold Antal pr. pakke 1 stk
