Mere information
-

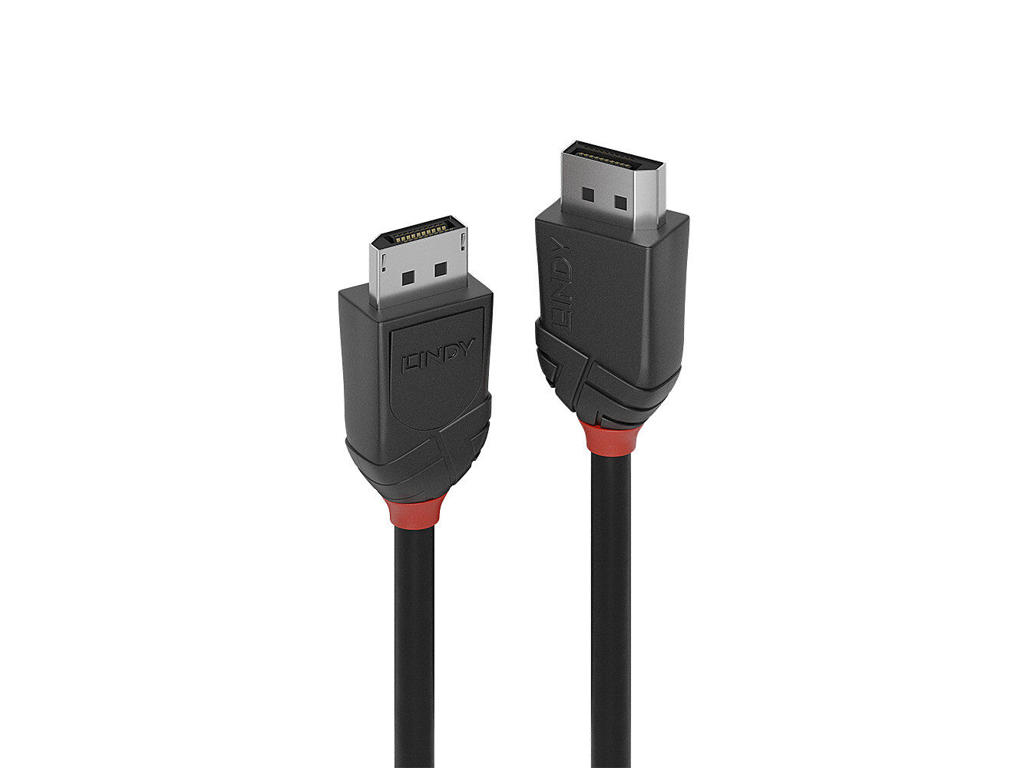

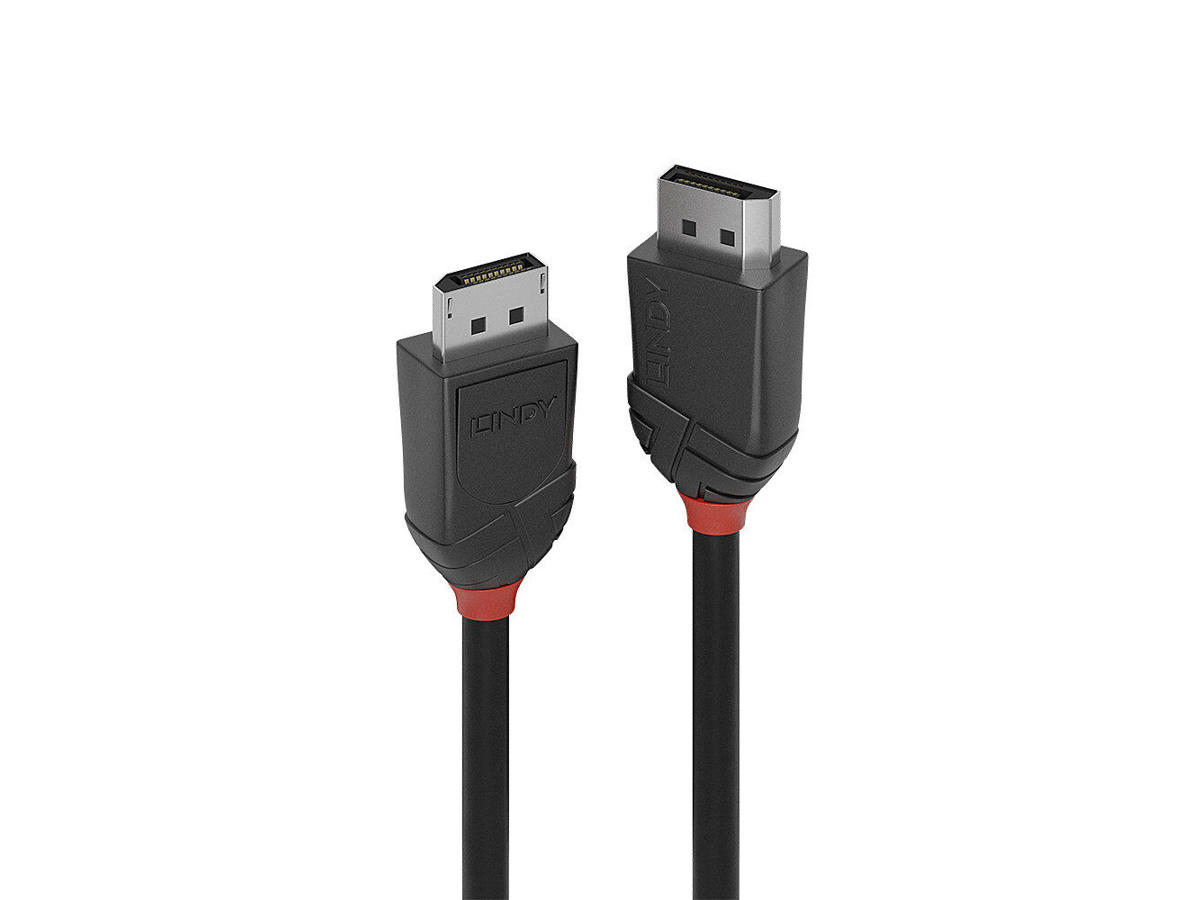

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m. -
Funktioner Kabellængde 1 m Stik 1 DisplayPort Stik 2 DisplayPort Stik 1 køn Hanstik Stik 2 køn Hanstik Maksimal opløsning 4096 x 2160 pixel Produktfarve Sort Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Guld DisplayPort-version 1.2 Understøttede grafikopløsninger 4096 x 2160 Understøttede videotilstande 2160p Kabelmateriale Kobber Kabelafskærmning Kobber Materiale for kapper Polyvinylchlorid (PVC) Materiale til stikhus Acrylonitrilbutadienstyren AWG-ledningsstørrelse 30 Dataoverførselshastighed 21,6 Gbit/sek. Kontaktmateriale Fosforbronze Tilslutningsmateriale Nikkel Plug and play Ja Farveprøvetagning 4:4:4 Kabeltype Rundt kabel Nominel dæmpning 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB Driftsbetingelser Driftstemperatur (T-T) -20 - 80 °C Opbevaringstemperatur (T-T) -25 - 85 °C Godkendelser Compliance-certifikater RoHS Certificering RoHS, REACH, UL Vægt & størrelser Kabeldiameter 6 mm Stik 1 dimensioner (BxDxH) 21 x 38,9 x 13,6 mm Stik 2 dimensioner (BxDxH) 21 x 38,9 x 13,6 mm Bøjningsradius (min) 4,8 cm Emballeringsdata Pakketype Polybag Emballage indhold Antal pr. pakke 1 stk Logistik data Harmoniseret systemkode (HS) 84733080
