Varenummer: DP21V-2M-DP80-CABLE
Mere information
-
Unlock UHBR20 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 10K/8K 60Hz video

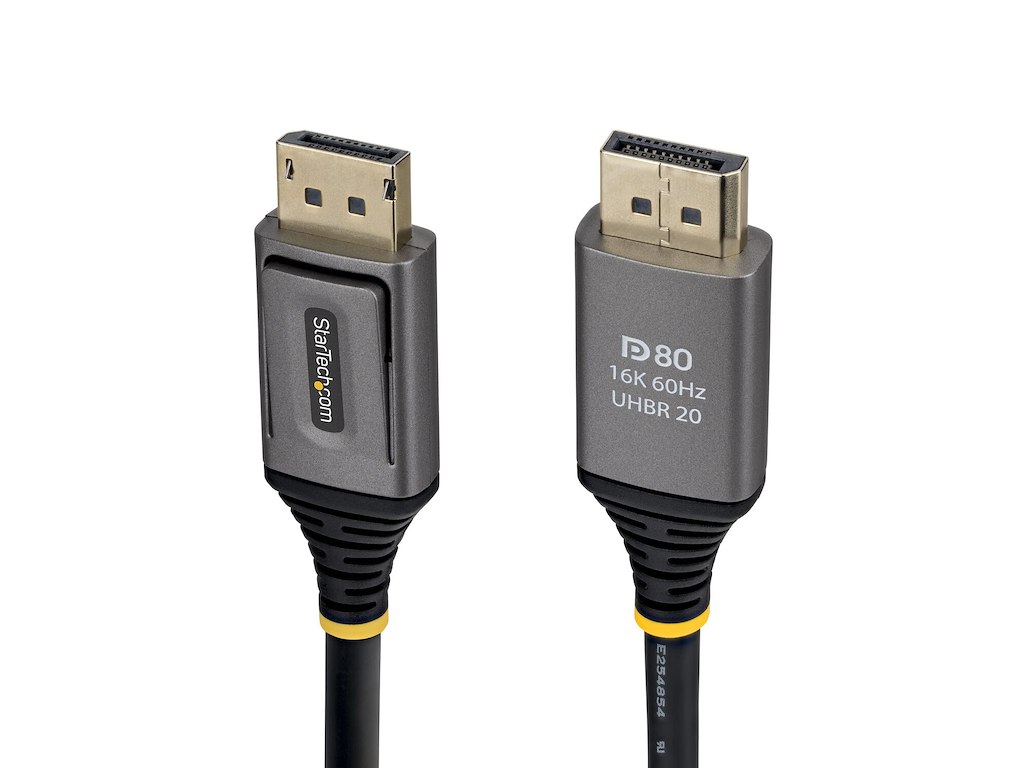

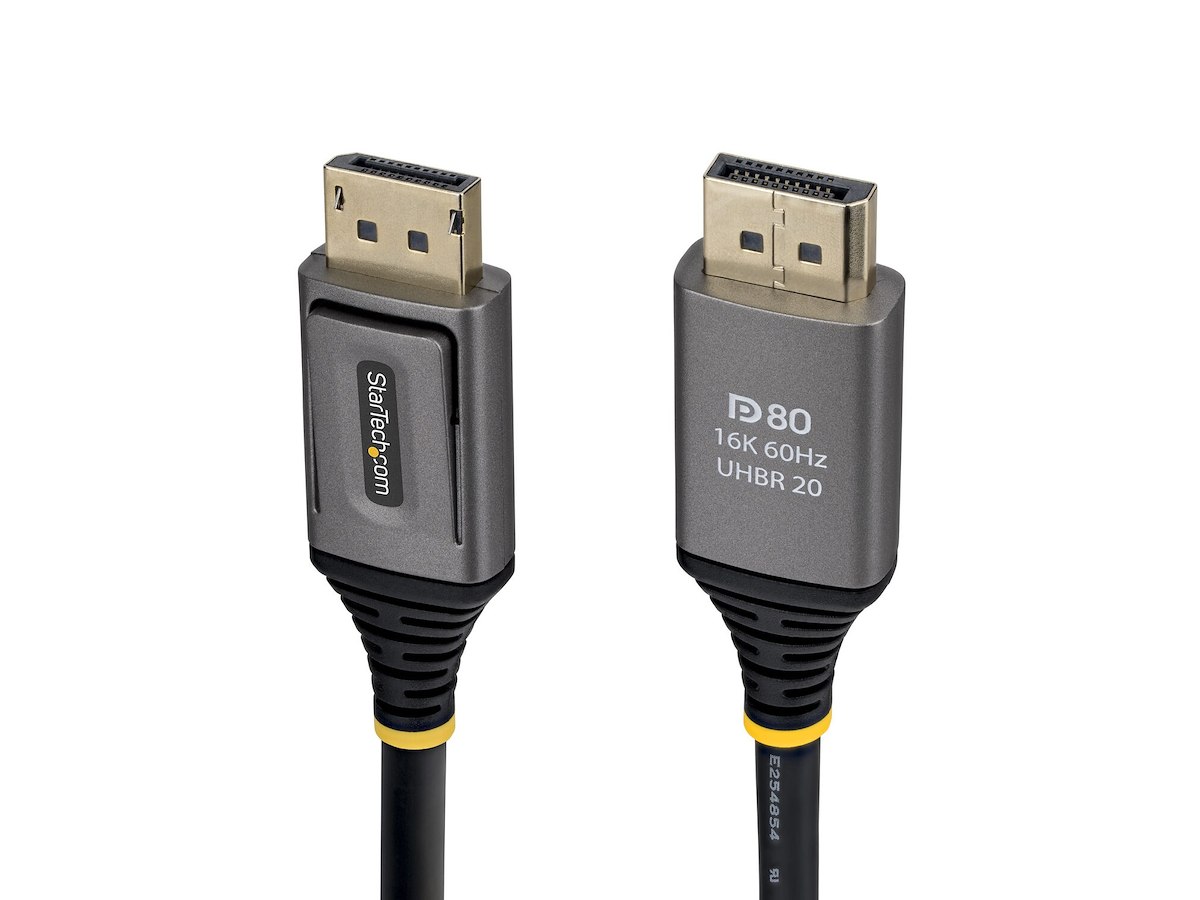

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP80 DisplayPort cable supports the following DP 2.1 features:
• UHBR20 supports high refresh rates including uncompressed 5K 144Hz and 4K 240Hz
• DSC-compressed video up to 16K 60Hz / 10K 144Hz / 8K 240Hz 4:4:4 8-bit
• Uncompressed video resolutions up to 10K 60Hz / 8K 60Hz / 4K 240Hz 4:4:4 8-bit
• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance. -
Funktioner Kabellængde 2 m Stik 1 DisplayPort Stik 2 DisplayPort Stik 1 køn Hanstik Stik 2 køn Hanstik Maksimal opløsning 15360 x 8640 pixel Produktfarve Sort Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Nikkel DisplayPort-version 2.1 Understøttede grafikopløsninger 10240 x 4320, 7680 x 4320, 5120 x 2880, 4096 x 2160, 15360 x 8640 Maksimal opdateringshastighed 240 Hz HDCP Ja HDCP-version 2.3 Display Stream Compression (DSC) Ja Display Stream Compression (DSC) version 1.2a Kabelafskærmning Aluminium mylar folie Materiale for kapper Termoplastisk elastomer (TPE) Materiale til stikhus Acrylonitrilbutadienstyren High Dynamic Range (HDR) understøttet Ja Dataoverførselshastighed 80 Gbit/sek. Farveprøvetagning 4:4:4 Kabeltype Rundt kabel Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 85% Godkendelser Compliance-certifikater RoHS Vægt & størrelser Kabeldiameter 8,2 mm Vægt 224 g Emballeringsdata Pakkebredde 172 mm Pakkedybde 202 mm Pakkehøjde 38 mm Pakkevægt 272 g Emballage indhold Antal pr. pakke 1 stk Logistik data Hovedkassens bredde (udvendigt) 540 mm Hovedkassens længde (udvendigt) 400 mm Hovedkassen højde (udvendigt) 230 mm Produkter pr. hovedkasse (udvendigt) 30 stk
