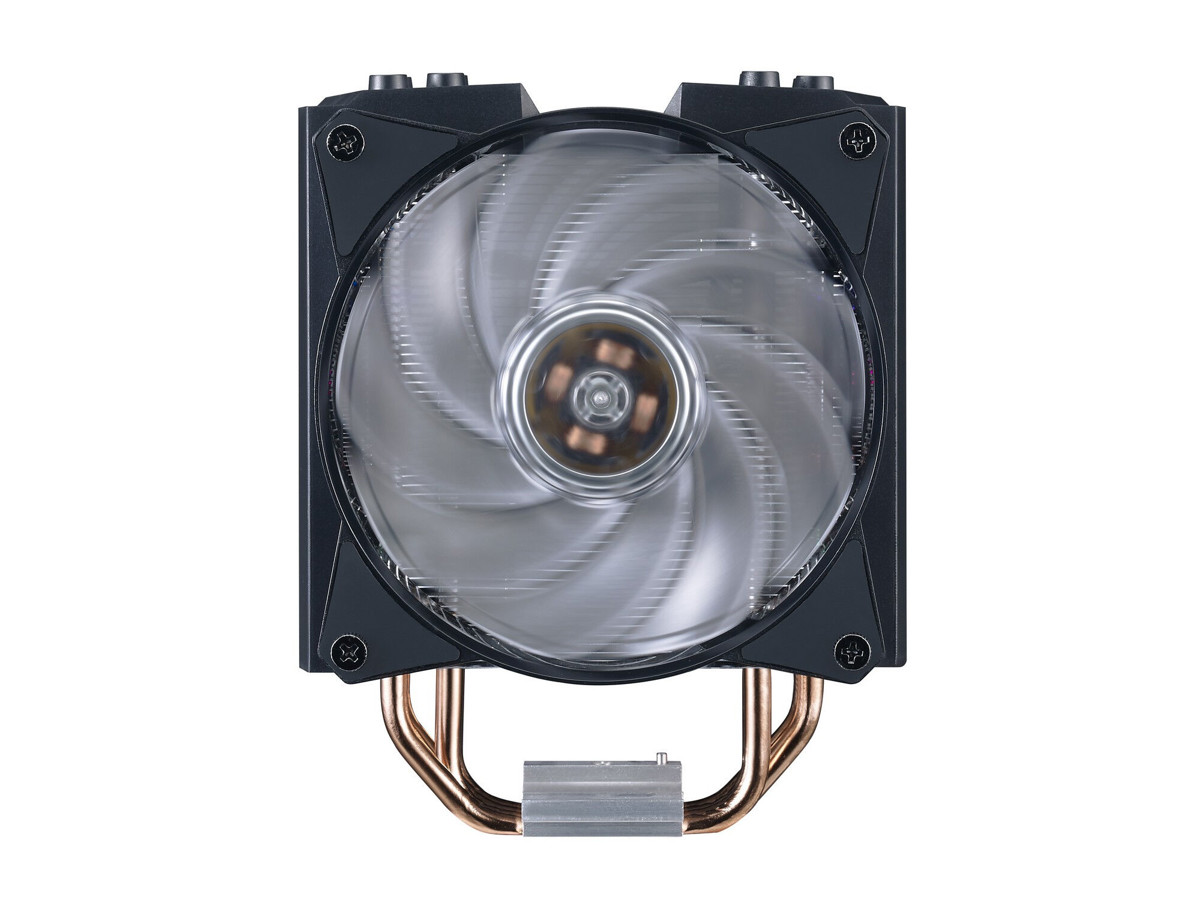

PUSH-PULL FAN CONFIGURATION To avoid dynamic losses and help accelerate heat exhaust, the push-pull MasterFan helps pulling heat away faster from heatsink. AIR-GUIDE ARMOR Specialized armor designed to guide the flow of air for peak cooling performance and reduce dead heat spots on the cooler. The armor is also illuminated by 28 addressable rgb LED's for full color customization. HEXAGON HOLOGRAM ALUMINUM FIN Aluminum hexagon fin cutout that creates a unique hologram lighting that can be seen through the top of the cooler. The specialized aluminum fin design dissipates heat faster for maximum cooling efficiency. THERMAL DETECTION The CPU temperature is detected by the thermal sensor and displayed through color lighting. When the CPU runs at max load the color will change to red and the color will be blue at idle or normal load. RGB IN THE PALM OF YOUR HAND Wired Addressable RGB Controller A compact size Addressable RGB LED controller that allows you to easily customize your RGB devices without the need for either an RGB capable motherboard or software. You can have the colorful rig you’ve always wanted with just the touch of a button. CDC 2.0 4 heatpipes with Continuous Direct Contact Technology 2.0 Comparing to its previous version CDC 1.0., CDC 2.0 creates 45% more contact surface area on cooler base by compressing heatpipes together. It significantly increases heat dissipation capability and outperform its predecessor.
Præstation | |
Passende til rumtype | Processor |
Type | Køler |
Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Stik AM4, Socket FM1, Socket FM2, Socket FM2+ |
Omdrejningshastighed (min.) | 650 rpm |
Omdrejningshastighed (maks.) | 1800 rpm |
Støjniveau (lav hastighed) | 6 dB |
Støjniveau (høj hastighed) | 31 dB |
Maksimal luftstrøm | 53,38 kubikfod/min. |
Maksimalt lufttryk | 1,65 mmH2O |
Design | |
Lamelmateriale | Aluminium |
Antal varmerør | 4 |
Belysning LED | Ja |
Belysningsfarve | Blå, Grøn, Rød |
Ventilatorstik | 4-polet |
Strømstyring | |
Strømforbrug (typisk) | 3,6 W |
Nominel spænding | 12 V |
Nominel strøm | 0,3 A |
Sikkerhedsstrøm | 0,37 At |
Vægt & størrelser | |
Bredde | 130,9 mm |
Dybde | 111,8 mm |
Højde | 165,1 mm |
Vægt | 960 g |
Ventilator dimensioner (BxDxH) | 120 x 120 x 165,1 mm |
Kølelegemets vægt | 820 g |
Varmerør diameter | 6 mm |
Pakkebredde | 155 mm |
Pakkedybde | 167 mm |
Pakkehøjde | 232 mm |
Pakkevægt | 1,18 kg |
Andre funktioner | |
Middeltid til fejl (MTTF) | 40000 t |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Produkter pr. hovedkasse (udvendigt) | 8 stk |
