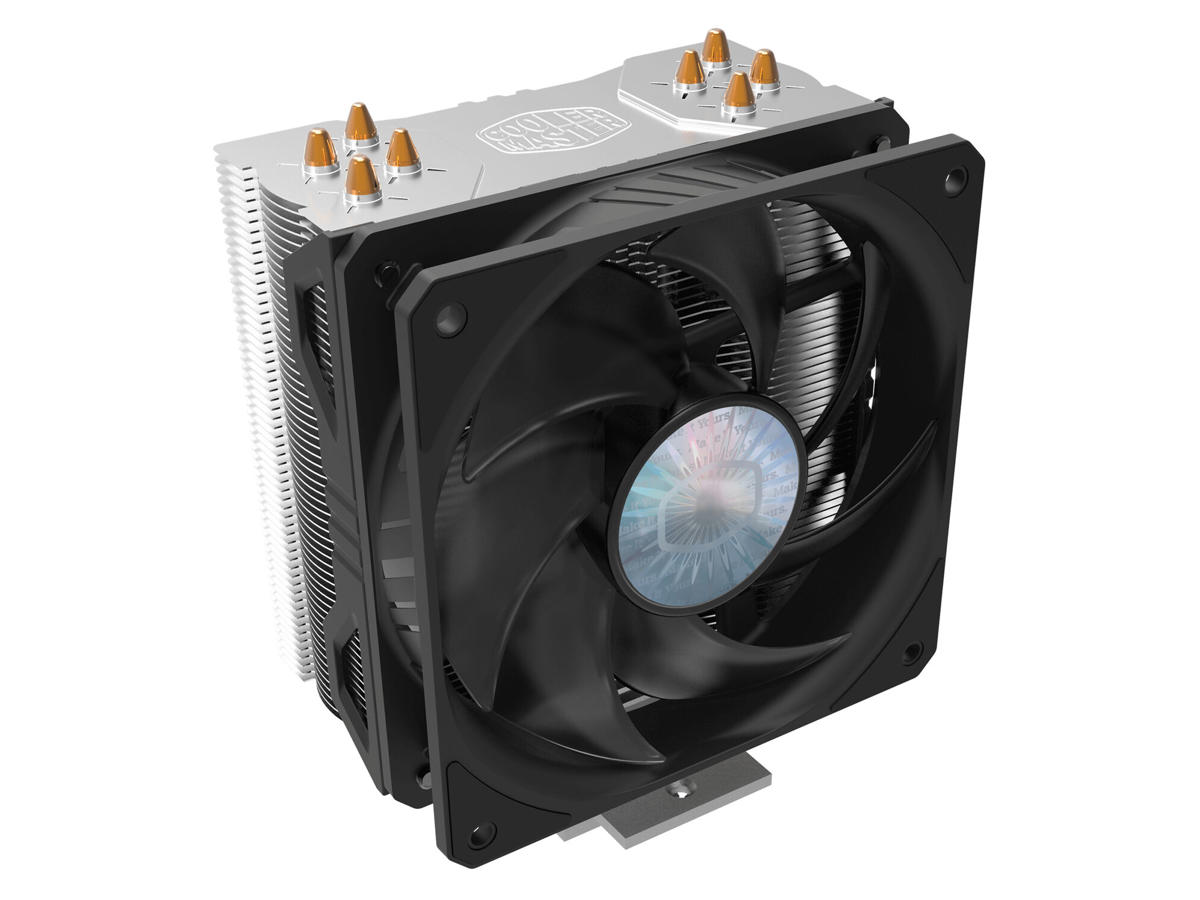

Cooler Master Hyper 212 EVO V2 is redesigned with an Asymmetrical tilt to guarantee RAM Clearance, along with revised brackets to assure the ease of installation. It is also paired with Cooler Masters' new SickleFlow 120 fan to improve cooling and acoustic performances. 100% Ram Clearance The asymmetrical heat pipe design ensures RAM compatibility and clearance space Only 155mm Height Low heatsinks for better chassis clearance X-vents Design Positioned in a 45-degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improve airflow where it matters the most - next to the heatpipes Direct Contact Technology 4 heatpipes with Direct Contact Technology creates a sleek contact surface area for maximize heat dissipation SickleFlow 120 Fan Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence. Quiet Operation Low vibrations and quiet fan allows for nearly inaudible levels. More than 10% decreased of fan noise level from previous model. Easy Installation Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Præstation | |
Passende til rumtype | Processor |
Type | Køler |
Ventilator diameter | 12 cm |
Understøttede procesorsokler | LGA 1700, LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Stik AM4, Socket FM1, Socket FM2, Socket FM2+ |
Omdrejningshastighed (min.) | 650 rpm |
Omdrejningshastighed (maks.) | 1800 rpm |
Støjniveau (lav hastighed) | 8 dB |
Støjniveau (høj hastighed) | 27 dB |
Mindste luftmængde | 62 kubikfod/min. |
Maksimalt lufttryk | 2,52 mmH2O |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Antal pr. pakke | 1 stk |
Design | |
Produktfarve | Sort, Sølv |
Antal blæsere | 1 blæser(e) |
Lamelmateriale | Aluminium |
Antal varmerør | 4 |
Ventilatorstik | 4-polet |
Strømstyring | |
Nominel spænding | 12 V |
Nominel strøm | 0,15 A |
Vægt & størrelser | |
Bredde | 80 mm |
Dybde | 120 mm |
Højde | 155 mm |
Vægt | 760 g |
Ventilator dimensioner (BxDxH) | 120 x 120 x 25 mm |
Pakkebredde | 99 mm |
Pakkedybde | 157 mm |
Pakkehøjde | 228 mm |
Pakkevægt | 1,89 kg |
Andre funktioner | |
Harmoniseret systemkode (HS) | 84733080 |
Oprindelsesland | Kina |
Middeltid til fejl (MTTF) | 160000 t |
Logistik data | |
Hovedkassens bredde (udvendigt) | 335 mm |
Hovedkassens længde (udvendigt) | 530 mm |
Hovedkassen højde (udvendigt) | 260 mm |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
