Varenummer: MFZ-M2DN-24NP2-R1
Mere information
-
More Balance, More Burst
Perfecting Engineering

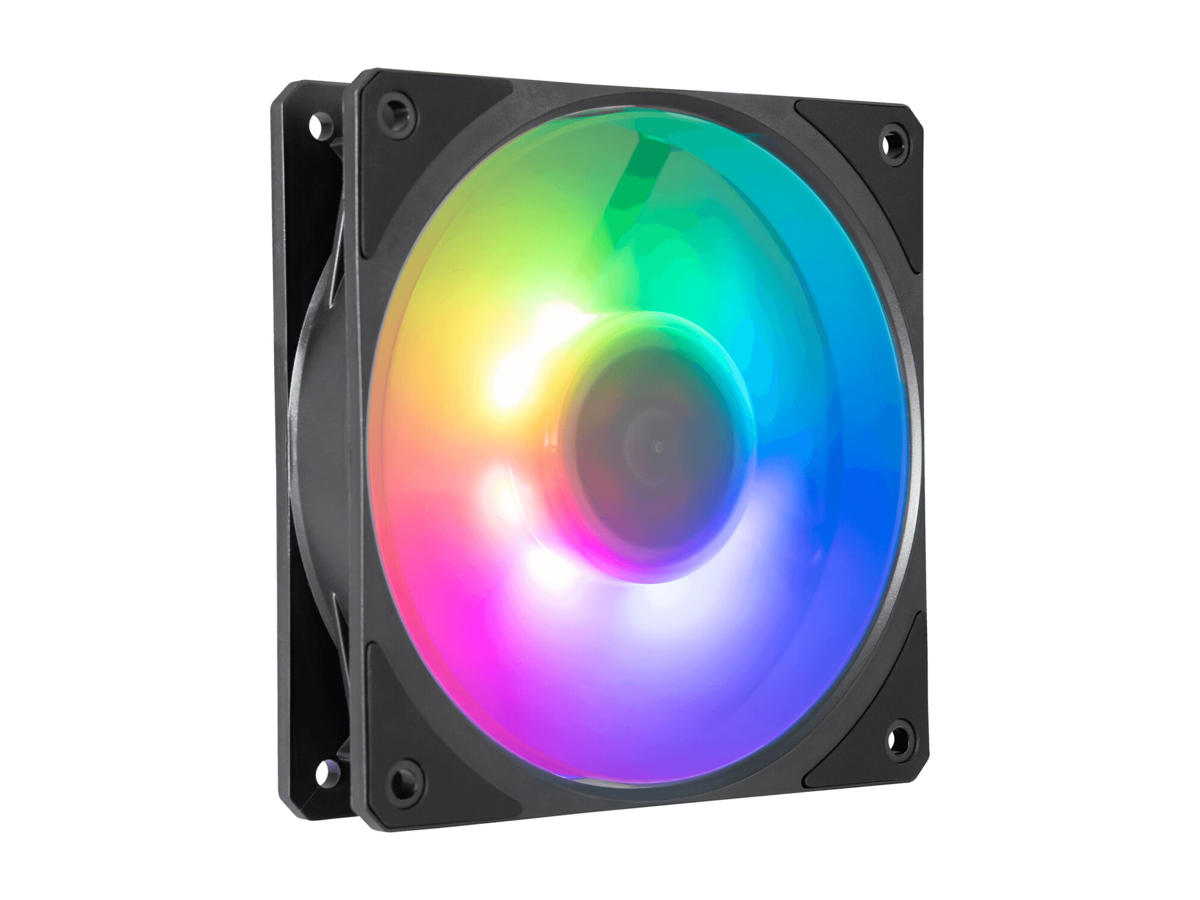

Cooler Master’s Mobius 120P ARGB is our new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.
Ring Blade Design (RBD)
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
Loop Dynamic Bearing
New loop dynamic bearing design utilizes thick oil coating and lubrication to allow for stable performance
Oil Reflow
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.
Dust Proofing
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.
Anti-sway System
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.
Pressure Air Acceleration
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.
Absolute Acoustics
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.
Acoustic Testing Anechoic Chamber for ISO 3745
FFT analyzer: AD-3524 O Microphone: B&K 2235
Sound Pressure: IS0-7779
Sound Power: ISO-7779
Sound Quality: 1S0-532B /ISO
Background noise: below 6dBA
Various Speeds, Various Functions
The Mobius Series offer various speeds for distinct usages. With the Mobius 120 operating up to 2050rpm, it is perfect for your case and chassis air intake. The Mobius 120P ARGB spins up to 2400rpm, designed to handle performance for air and liquid cooling. -
Præstation Passende til rumtype Computerkabinet Type Ventilator Omdrejningshastighed (min.) 0 rpm Omdrejningshastighed (maks.) 2400 rpm Støjniveau (høj hastighed) 30 dB Maksimal luftstrøm 75,2 kubikfod/min. Maksimalt lufttryk 3,63 mmH2O Understøttelse af puls-bredde modulering (PWM) Ja Lejetype Loop dynamisk kugleleje (LDB) Ventilatorens middeltid til fejl (MTTF) 200000 t Design Produktfarve Sort Belysning LED Ja Belysningsfarve Flere LED-stiktype 3-stikben Ventilatorstik 4-polet Strømstyring Strømforbrug (typisk) 2,16 W Nominel spænding 12 V Nominel strøm 0,18 A Sikkerhedsstrøm 0,35 At LED spænding 5 V Vægt & størrelser Ventilator dimensioner (BxDxH) 120 x 120 x 25 mm Ventilator vægt 179 g Pakkebredde 28 mm Pakkedybde 130 mm Pakkehøjde 178 mm Pakkevægt 266 g Logistik data Hovedkassens bredde (udvendigt) 315 mm Hovedkassens længde (udvendigt) 370 mm Hovedkassen højde (udvendigt) 155 mm Produkter pr. hovedkasse (udvendigt) 20 stk
