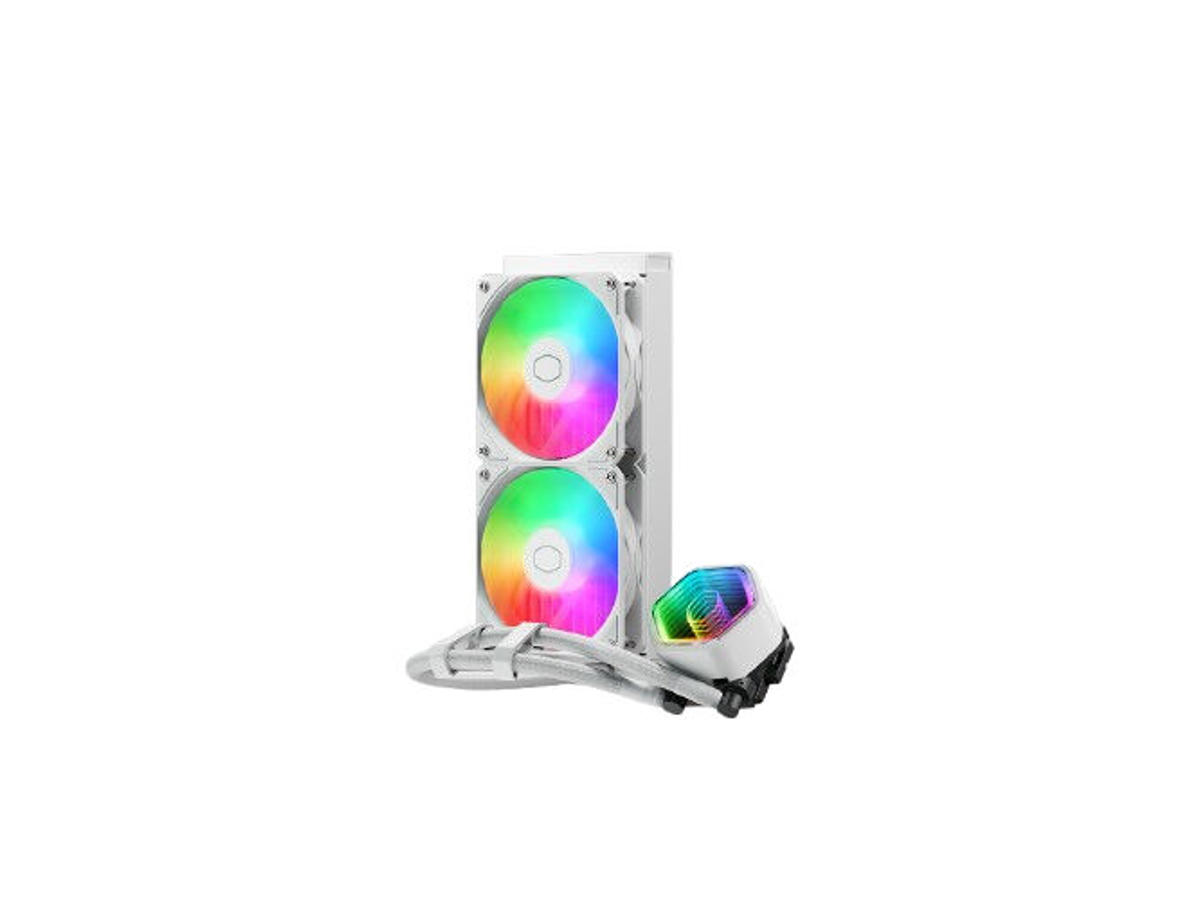

MasterLiquid Core II Series
Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid Core II Series. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.
Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics
Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance
Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation
Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look
Daisy chain connection
Simplified fan connection for easy cable management
Longer tubes for easy placement configuration
UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs
SUPPORT LGA 1851 RL-ILM SOCKET DESIGN
| Præstation | |
| Passende til rumtype | Processor |
| Type | Væskekølingssæt |
| Ventilator diameter | 12 cm |
| Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Stik AM4, Sokkel AM5 |
| Omdrejningshastighed (min.) | 650 rpm |
| Omdrejningshastighed (maks.) | 1750 rpm |
| Støjniveau | 30 blæser |
| Luftstrøm | 120 m³/t |
| Maksimalt lufttryk | 2 mmH2O |
| Understøttelse af puls-bredde modulering (PWM) | Ja |
| Lejetype | Muffeleje |
| Pumpe støjniveau | 25 dB |
| Pumpestik | 3-pin + 4-pin |
| Pumpemotor hastighed | 3100 rpm |
| Pumpens middeltid til fejl (MTTF) | 50000 t |
| Ventilatorens middeltid til fejl (MTTF) | 160000 t |
| Design | |
| Produktfarve | Hvid |
| Køler materiale | Aluminium |
| Antal blæsere | 2 blæser(e) |
| Belysning LED | Ja |
| Belysningsfarve | Flere |
| Strømstyring | |
| Nominel spænding | 12 V |
| Ventilator strømforbrug | 2,76 W |
| Pumpens effektforbrug | 3,6 W |
| Nominel strøm | 0,23 A |
| Sikkerhedsstrøm | 0,45 At |
| Pumpespænding | 12 V |
| Vægt & størrelser | |
| Køler bredde | 27,7 cm |
| Køler dybde | 11,9 cm |
| Køler højde | 2,72 cm |
| Pumpe bredde | 8,3 cm |
| Pumpe dybde | 7,62 cm |
| Pumpe højde | 5,23 cm |
| Ventilator dimensioner (BxDxH) | 120 x 120 x 25 mm |
